Product Details:
Payment & Shipping Terms:
|
Product Name: | Livestock Farm Use Heavy Galvanized Welded Wire Mesh Panels For Hog Panels Cattle Panels | Material: | Q195 Low Carbon Steel Wire With Galvanized Process |
---|---|---|---|
Surface Treatment: | Galvanized | Mesh Size: | 2x2inch, 4x4inch, 6x6inch, 8 X 8 Inch |
Mesh Type: | Square Opening | Wire Diameter: | 4 Gauge |
Panel Height: | 4 Feet | Panel Length: | 10 Feet |
Color: | Silver, Galvanized Color | Packaging: | Wooden Pallet, Iron Pallet, Wooden Box, Etc. |
Applications: | Hog Panels, Cattle Panels, Livestock Panels, Etc. | Certification: | CE CERTIFICATE / ISO |
High Light: | 2x2inch Welded Wire Mesh Panels,ISO Galvanised Welded Wire Mesh Panels,ISO wire mesh livestock panels |
Anping HUILONG began to engage in the wire mesh production industry from 1986, so far it has been 35 years. Making wire mesh products widely used in all walks of life has always been the power and direction of our development and research.
In order to help customers to find products that can meet their needs conveniently, we hereby made the detailed specifications in the following chart, hoping to be of great help for customers in choosing the right products.
CATTLE FENCE / HOG FENCE / HORSE FENCE / BRUSS WIRE | |
Specifications (Welded Wire Mesh) | Customer Input |
ASTM Standard | A641/A641M-98 |
Material | SAE1006/1008,Q195/235 SAE1050/1065 |
Coating | Galvanize after welding |
What type of Galvanizing | Hot Dip galvanized |
Zinc Content for coating (gm/m2 or Oz/ft2) | 86 gm/m2 |
Coating Finish | Shinny |
Opening Size (CTC distance or Mesh Count) | As per drawing |
Finished Wire Diameter with tolerance | 5.20 mm +/- 0.050 mm |
If rolls then what size (length by width) | N/A |
If panels we need a dimensional drawing | 16 ft long panels |
ROA% (Reduction of Area %) | N/A |
Wire ends | Ground down soft ends |
Wire Surface | No contamination and 100% zinc coated (No voids) |
Packaging Requirements | Panels stacked, Blister film packed, Plastic strapping in wooden boxes |

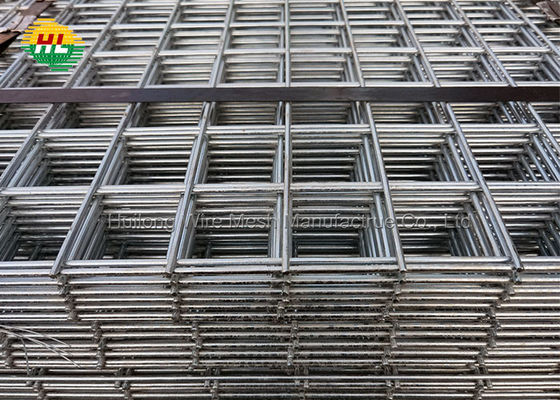

Welded wire fence usually has galvanized surface. The simple welded wire fence is constructed from low carbon steel wire. The wire rods are welded at every intersection and are hot dipped galvanized after welding to improve the corrosion and rust resistance performance.
The simple welded wire fence is designed with different mesh sizes at the bottom and top of the fence. This special design can keep animals in the area, prevent the livestock from crawling out and prevent small animals from entering the area. simple welded wire fence is widely used in the loafing areas, corrals, feedlots, arenas and working pens.
This kind of simple welded wire fence is manufactured from 4 gauge or 6-gauge wire diameter of high tensile steel wire or low carbon steel wire. The wires are welded at each joint into 2/4/6/8 inch meshes. There aren’t frames on the fence panel to supply lighter weight for easy transportation and lower material cost. The wire mesh is 50 inches by 16 feet in length and width. As a simple protective mesh, it is usually used together with column or fixed on the frame directly. In addition to being used as a simple mesh fence, this kind of welded mesh panels can also be used for feeding large animals such as cattle, sheep, pigs, etc.
Specifications of welded wire Hog Panels/Cattle Panels/Livestock Panels/ Farm Panels:
1. Material: low carbon steel wire
2. Surface treatment:
a) Galvanized after welding. Hot dipped galvanized or electric galvanized
b) Galvanized before welding. Hot dipped galvanized or electric galvanized
3. Wire Diameter: 4 Gauge - 6 Gauge
4. Mesh Size: 2'', 4'', 6'', 8" Opening, etc.
5. Panels Height: 30 inch - 60 inch
6. Panels Length: 8 feet-16 feet
Welded wire cattle fence is widely used in the farms, loafing areas, corrals, feedlots, arenas and working pens to raise the cattle, sheep, horse, hug and other animals or poultry. The welded wire cattle fence can also be used in the gardens as the landscape fence to prevent animals from destroying the landscape.
APPLICATIONS
HOG FENCE
DOG FENCE PANEL
CATTLE FENCE PANEL
HORSE FENCE PANEL
SHEEP FENCE PANEL
PIGS FENCE PANEL
OTHER FARM FENCE
POULTRY FENCE PANEL
GARDEN FENCE PANEL
WELDED WIRE MESH PANELS SPECIFICATION
MESH SIZE (inch) |
MESH SIZE (mm) |
WIRE DIAMETER (mm) |
APPLICATION |
3/4" x 3/4" | 19.05mm x 19.05mm | BWG21-BWG14(0.8mm-2.0mm) | Medium animals or garden using |
1" x 1" | 25.4mm x 25.4mm | BWG21-BWG13(0.8mm-2.5mm) | Medium animals or garden using |
1" x 2" | 25.4mm x 50.8mm | BWG19-BWG13(1.0mm-2.5mm) | Flowers and vegetables growing |
2" x 2" | 50.8mm x 50.8mm | BWG16-BWG10(1.6mm-3mm) | Construction, Garden, Animal raising, mining, industrial using |
2’’ x3’’ | 50.8mm x 76.2mm | BWG16-BWG10(1.6mm-3mm) | Construction, Garden, Animal raising, mining, industrial using |
2”x 4” | 50.8mm x 101.6mm | BWG16-BWG10(1.6mm-3mm) | Construction, Garden, Animal raising, mining, industrial using |
3”x 3” | 76.2mm x 76.2mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
3’’ x 4’’ | 76.2mm x 101.6mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
4”x 4” | 101.6mm x 101.6mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
6”x 6” | 152.4mm x 152.4mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
8”x 8” | 203.2mm x 203.2mm | BWG6-BWG13(2.4mm-12mm) | Construction, Garden, Animal raising, mining, industrial using |
10”x 10” | 254mm x 254mm | BWG6-BWG13(2.4mm-12mm) | Construction, Garden, Animal raising, mining, industrial using |
12”x 12” | 304.8mm x 304.8mm | BWG6-BWG13(2.4mm-12mm) | Construction, Garden, Animal raising, mining, industrial using |
Support customization. Free sample available. |
PRODUCTION PROCEDURE
PRODUCT FEATURES
* Ensure the strength of the spot welding be current of the automatic numerical control welding machine.
* Second trimming of manual cutting machine to ensure no burr of the panels.
* Some customers need open storage of the Welded Wire Mesh Panels and should make sure that it is not easy to rust. And heavy galvanized wire or say high zinc content can slove this problem.
TECHNICAL INFO
TEST REPORT WIRE TOLERANCE : 土2%
TEST REPORT MESH TOLERANCE: 土5%
TEST REPORT LENGTH TOLERANCE: 土5%
TEST REPORT WIDTH TOLERANCE: 土2%
TEST REPORT WELD TYPE: SPOT WELDING
TEST REPORT WELD STRENGTH: ≥2000N
PRODUCTION STANDARD: AS4687-2007 EN 10244-1-2009 ASTM A 740-1998
PACKAGING AND DELIVERY

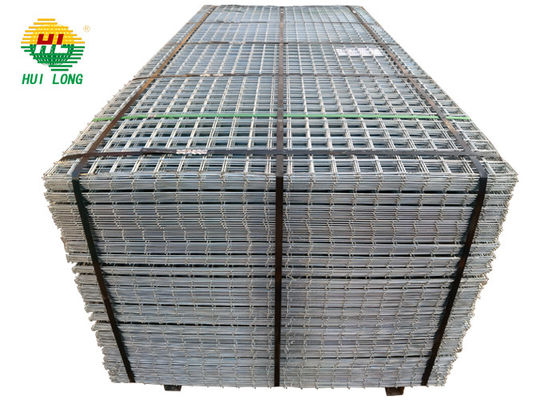

Welded Wire Mesh Panels are usually packaged in pallets. The pallet is a cargo platform, or a movable ground, so the goods loaded on the pallet are in a state of readiness that can be transferred into motion at any time. Because of the limitations of its own characteristics, the Welded Wire Mesh Panels need to be supported by pallets, so as to facilitate loading and unloading.
Usually there are two ways to load the pallet, one is wooden pallet, and the other is iron pallet. If the weight of the welded wire mesh panel is very large, then the use of iron pallet is undoubtedly the best choice, because the bearing capacity and compression capacity of iron pallet are much higher than that of wooden pallet. At the same time, we use special design to ensure the belts on the pallets stable and not loose. In addition, wooden boxes are also an alternative way of packing.
FREQUENTLY ASKED QUESTIONS
Q1: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
Q2: What’s the MOQ?
MOQ is 200 pieces for common standardized products; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q3: How to guarantee the quality of products?
We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
