Product Details:
Payment & Shipping Terms:
|
Product Name: | BTO22 Barbed Concertina Razor Wire Fencing Double Loop With Clips 730mm | Material: | Galvanized Steel, Stainless Steel |
---|---|---|---|

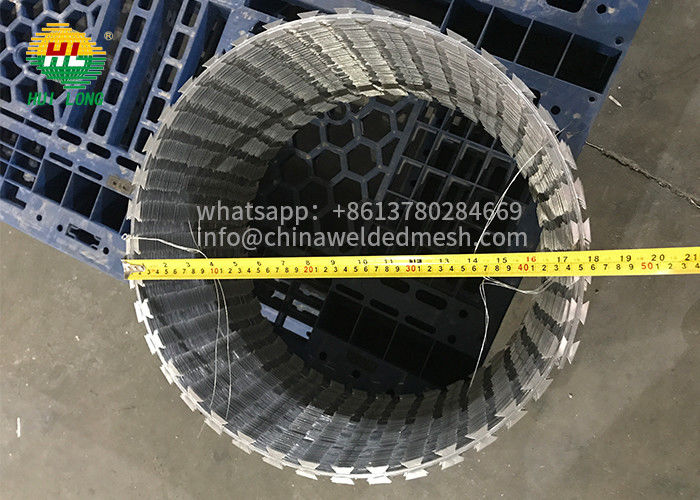

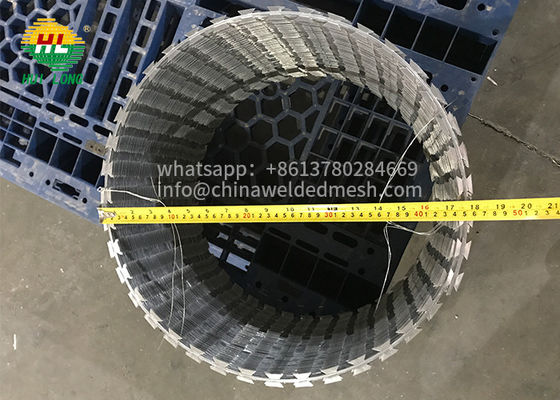

Wire Diameter: | 2.0, 2.5, 2.8mm | Coil Diamter: | 450mm |
Clips Per Spirl: | 0, 3, 5. | Length: | 8,10m As Your Request |
Tensile: | 1400-1500MPA | International Standard: | ASTM |
Packaging: | In Coils, In Carton, On Pallet, Etc. | Application: | For High Security, Private Garden, Barrier Fence, Etc. |
High Light: | BTO22 Concertina Barbed Wire,Steel Material Concertina Barbed Wire,450mm Concertina Barbed Wire |
Galvanized Barbed Wires (Please go to this page if you are interested) is standard wires with barbs twisted onto them every few centimetres. Whereas Concertina Barbed Wire is the coiled form of barbed wires, expanded to form large coils like a concertina. Due to the sophistication in the manufacturing process, the price of Concertina Barbed Wires are higher than Barbed Wires. Moreover, the installation of these wires require professional technicians because of its sharp blades and high tensile strength. As a concertina wire supplier in CHINA, HUILONG Wiremesh has galvanised and stainless steel BTO-22 for sale.
Functions of Concertina Barbed Wire
Acts as wire obstacles
Prevents intruders
Avoids prisoner escape
Fence for agriculture purposes
Slows down enemy passage during war
Advantages of Concertina Barbed Wire
1) Prevents intruders from entering and prisoners from escaping
Concertina Barbed Wires are very sharp as they are designed to inflict as much pain as possible to the person who is entangled in it. On top of that, it also serves as a psychological barrier to deter intruders from entering and prisoners from escaping.
2) Durable and long-lasting
This enhanced version of a barbed wire is able to bounce back into its original coil shape even after being crushed. It is also able to withstand harsh weather conditions. Galvanised and stainless steel concertina wires can last for a long time.
3) Customisable based on requirements
Concertina Barbed Wires can be customised to fit your fencing needs; the size, thickness, length and materials can be tailored.
MATERIAL SUPPLY SYSTEM
1) Blade
Material: Galvanized Steel or Stainless Steel
Thickness: 0.5mm
Barb Length: 12-65mm
Barb Spacing: 26-100mm
2) Core Wire
Material: Electro Galvanized Wire, Hot-dipped Galvanized Wire, Stainless Steel Wire
Wire Diameter: 2.5mm

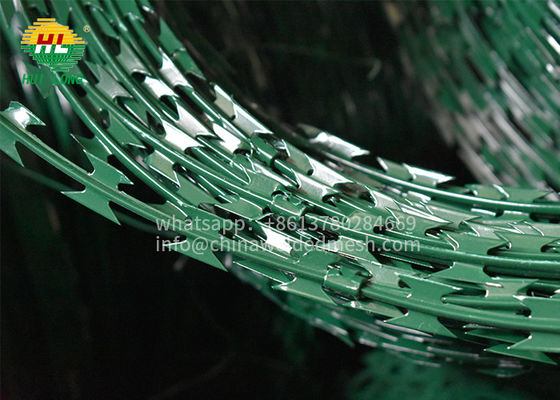

3) PVC Coating
Razor Barbed Wire can also be coated by PVC, so that it has higher corrosion resistance and is more beautiful. Green color is commonly used, and other colors can be customized according to customers’ requirements.
COMMON BLADE TYPES
1) BTO (Barbed Tape Obstacle):
BTO-10, BTO-22, BTO-30;
2) CBT (Concertina Barbed Tape):
CBT-60, CBT-65.
SPECIFICATIONS
Razor Blade Type and Specification | ||||||
Reference Number |
Blade Style
|
Thickness (mm) |
Wire Dia. (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb Spacing (mm) |
BTO-10 | Please see the above pictures | 0.5±0.05 | 2.5±0.1 | 10±1 | 15±1 | 25±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 35±1 | |
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 50±1 | |
CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 31±1 | 100±2 | |
CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Outside Diameter | No. of Loops |
Standard Length per Coil |
Type | Notes |
300mm | 33 | 4-6m | CBT-60, CBT-65 | Single Coil |
450mm | 33 | 7-8 m | CBT-60, CBT-65 | Single Coil |
500mm | 56 | 12-13m | CBT-60, CBT-65 | Single Coil |
700mm | 56 | 13-14m | CBT-60, CBT-65 | Single Coil |
960mm | 56 | 14-15m | CBT-60, CBT-65 | Single Coil |
450mm | 56 | 8-9m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
500mm | 56 | 9-10m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
600mm | 56 | 10-11m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
700mm | 56 | 10-12m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
800mm | 56 | 11-13m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
900mm | 56 | 12-14m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
980mm | 56 | 14-16m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
1) Raw Material —— Galvanized Steel or Stainless Steel Plate + Galvanized Steel or Stainless Steel Wire.
2) Machine Punching —— Steel sheet is punched into sharp barbs with punching machine.
3) Machine Forming —— Core wire and razor plate
4) Clip Installation—— We use clip gun to install C-ring clip, to make it firm
5) PVC Coating—— RAL 6005 Green color or any other colors in RAL Color System are all available.
6) Packaging —— Packaged with waterproof paper + woven bag, corrugated carton, or pallet. Special requirements can be customized.
PACKAGING SYSTEM
Because Concertina Barbed Wire has sharp blades, it is necessary to pay more attention to the way of packaging.
1) Generally, Razor Barbed Wire will be made into a coil, and then we use waterproof paper and woven bag for packaging. These coils can be directly loaded into container. Or, 10-20 coils will be compressed together with steel belts to make it stronger. In contrast, the loading quantity of compressed package is much more than what is in loose package.
2) Small Corrugated Box packaging, Razor Barbed Wire coils can be put into small pieces of paper boxes separately, this method is mainly used for supplying supermarkets or stores which directly facing the end users.
3) Corrugated Carton packaging, corrugated cartons can be customized according to customer requirements, and then 3-5 coils of razor wire are stacked into one carton, separated by cardboard in the middle.
4) Pallet packaging, compressed Razor Barbed Wire can also be packaged with plastic film, packing belt and pallet.
5) In addition, according to customer needs, we can also carry out exclusive customized services.
WAREHOUSE STORAGE SYSTEM
The production workshop of Concertina Barbed Wire occupies an area of 5,000 square meters, with 5 punching machines, 20 wire wrapping machines, 50 automatic pneumatic clip guns for clip installation, 6 workbenches for manual buckle. There are 68 workers in total, including 1 Warehouse Manager and 2 Quality Inspectors. In the process of production, quality inspectors will check on site to ensure the quality of products. At the same time, there is exclusive storage space for raw materials and finished products with special care.
We use pneumatic clip gun to install C-ring clips. Air press: 90-120psi (6-8bars, 60-80kg/cm). Faster and stronger.
QUALITY CONTROL SYSTEM
Quality management is a part we consider very important, because it directly determines whether the customer is satisfied or not. From raw material storage, machine maintenance, workers' qualifications, technical standards, production process, to product inspection, packaging and transportation, we ensure quality control to meet customers' requirements at the most economical level. At the same time, we have a perfect after-sales service system, efficient for you to solve any problems in the process of order.
International Standard for Razor Barbed Wire
ASTM F1910-98(2018)---Standard Specification for Long Barbed Tape Obstacles
ASTM F1379-95(2018)---Standard Terminology Relating to Barbed Tape
ASTM F1911-05(2019)---Standard Practice for Installation of Barbed Tape
PRODUCT APPLICATIONS
Concertina Barbed Wire has beautiful, economical, and practical, good anti-obstruction effect, convenient construction and other excellent characteristics. Currently, Razor Barbed Wire has been widely used in many countries, such as industrial and mining enterprises, garden apartments, border posts, military fields, prisons, detention houses, government buildings and other high security facilities.
DEEP PROCESSING OF CONCERTINA BARBED WIRE
1) Welded razor wires
Welded razor wires into meshes with diamond or rectangular hole patterns.It has simple but high security structure for both private and commercial applications.Welded razor wire can be attached or welded onto the frame as security fence.It can also be used as additional security
measure for other security fences.
2) Double concertina razor wire
Double concertina razor wire is combined with two different coil diameter of razor wire with steel wires or steel ropes. It is the advancement of common concertina wires. It has the highest security grade among all types of razor wires.It is suitable for use where need highest grade of security purpose.
3) Mobile razor wire deployment system
Mobile razor wire deployment system is designed for rapid deployment of efectively layered concertina coils. This is serious obstacle for rebels or demonstrators and vehicles to gain entry.Razor wire trailer deployment trailers are available in 3 coil configuration (3 coil = gives 1.7m high protection for 100m distance).The operation of the razor wire deployment trailer is simple and convenient.Connected to the vehicle through axis of traction and can be hitched on any type of vehicle. The next step wil be to open the tall gate or release the barrier holder frame and drive forward automatically releasing and stretching the concertina coil barrier.
4) Flat loop concertina wire
Flat loop concertina wire consists of individual loops of barb tape.Press the single coil razor wire into flat or press the two loops into flat and then expand them across.Flat warp concertina wire can be attached directly onto the top of an existing fence or gate. Flat loop concertina wire is ideal for use where topping needs to be flat against the fence without any overhang either side of the fence or boundary.
QUALITY INSPECTION BEFORE LOADING
Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.
AFTER-SALES SERVICE SYSTEM
1) After the order is confirmed, we will update the production schedule of the goods in time.
2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.
3) If any quality problem is found before delivery, we will deal with it in time.
4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.
FREQUENTLY ASKED QUESTIONS
Q1: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
Q2: What’s the MOQ?
MOQ is 50 coils for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q3: How to guarantee the quality of products?
We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
