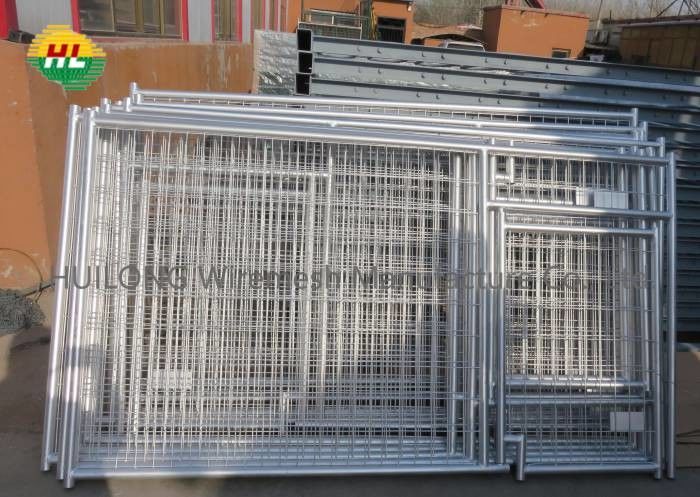

Hot Dipped Galvanised Welded Wire Mesh Panels 50x75mm Rectangle Openings for Dog Cages

Anping HUILONG began to engage in the wire mesh production industry from 1986, so far it has been 35 years. Making wire mesh products widely used in all walks of life has always been the power and direction of our development and research.

Supplied as full panels or offcut sheets, We can also supply Mesh Frames upon your request.

Wire Diameter: 12 Gauge--2.5mm Thick Wire

Hole Size: 50mm x 75mm rectangle openings
Wide Range Of Sizes Available as per your request.

Color: Self Color(Bright Silver)

Finish: Hot Dipped Galvanised
Perfect for pets - safe for bird aviaries, dog cages, cat enclosures, and more.

Applications

 Fence Panels

 Pet Runs & Aviaries

 Animal Protection Cages(Dog Cages)

 Frames

 Gabions

PRODUCT SPECIFICATION

MASS PRODUCTION PROCEDURE

1) Raw Material Preparation

2) Machine Welding

3) Galvanizing(Electro or Hot-dipped)

4) Packaging

5) Container Loading

TECHNICAL INFO

TEST REPORT WIRE TOLERANCE : 土2%

TEST REPORT MESH TOLERANCE: 土5%

TEST REPORT LENGTH TOLERANCE: 土5%

TEST REPORT WIDTH TOLERANCE: 土2%

TEST REPORT WELD TYPE: SPOT WELDING

TEST REPORT WELD STRENGTH: ≥2000N

PRODUCTION STANDARD: AS4687-2007 EN 10244-1-2009 ASTM A 740-1998

APPLICATIONS

Welded Wire Mesh Panels are suitable for Animal Protection Cages. It can be customized  and designed as per your request.

Welded Wire Mesh Panels have many obvious characteristics and advantages, so it is widely used in a lot of areas. In addition to as floor heating mesh and animal protection cage, Welded Wire Mesh Panel is also widely used as a variety of guardrail fencing products.

By adjusting the wire diameter thickness, mesh size and panel size, Welded Wire Mesh Panel can be made into a variety of different uses of guardrail fencing, such as 358 Mesh Fence, Double wire Mesh Fence, V Mesh Security Fencing, Welded Wire Mesh Gabions, Temporary Fence. Different surface treatment methods bring different visual effects and anti-corrosion properties.


PACKAGING AND DELIVERY

1) Wooden Pallet;

2) Iron Pallet;

3) Wooden Box.

Welded Wire Mesh Panels are usually packaged in pallets. The pallet is a cargo platform, or a movable ground, so the goods loaded on the pallet are in a state of readiness that can be transferred into motion at any time. Because of the limitations of its own characteristics, the Welded Wire Mesh Panels need to be supported by pallets, so as to facilitate loading and unloading.

Usually there are two ways to load the pallet, one is wooden pallet, and the other is iron pallet. If the weight of the welded wire mesh panel is very large, then the use of iron pallet is undoubtedly the best choice, because the bearing capacity and compression capacity of iron pallet are much higher than that of wooden pallet. At the same time, we use special design to ensure the belts on the pallets stable and not loose. In addition, wooden boxes are also an alternative way of packing.

FREQUENTLY ASKED QUESTIONS

Q1: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.

Q2: How to guarantee the quality of products?

We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.

Q3: What’s the MOQ?

MOQ is 200 pieces for common standardized products; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
