1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure

1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure
1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure

Large Image :  1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: WWMP-HL004
Payment & Shipping Terms:
Minimum Order Quantity: 200 PIECES
Price: USD0.6-USD20
Packaging Details: WOODEN PALLET, IRON PALLET, WOODEN BOX, ETC.
Delivery Time: 7 DAYS AS SOON AS GET CUSTOMERS L/C OR DEPOSIT.
Payment Terms: L/C,T/T,L/C AT SIGHT
Supply Ability: 7000-15000 PIECES PER DAY
Contact Now
Detailed Product Description
Product Name: Welded Wire Cattle Fence 1/4"Inch Wire 50inch*8ft 4inch*4inch Mesh Openings With Solid Structure And Durable Life Material: Q195 Low Carbon Steel Wire With Galvanized Process
Surface Treatment: Galvanized Mesh Size: 4 X 4 Inch
Mesh Type: Square Opening Wire Diameter: 1/4 Inch (6.35mm)
Panel Height: 50 Inch Panel Length: 8 Ft
Color: Silver, Galvanized Color Packaging: Wooden Pallet, Iron Pallet, Wooden Box, Etc.
Applications: Cattle Fence, Horse Fence, Pig Fence, Sheep Fence, Farm Fence, Etc. Certification: CE CERTIFICATE / ISO
Highlight:

1 4Inch welded wire cattle panels

,

4x4 welded wire cattle panels

1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure
Product Specifications
Attribute Value
Product Name Welded Wire Cattle Fence 1/4"Inch Wire 50inch*8ft 4inch*4inch Mesh Openings with Solid Structure And Durable Life
Material Q195 low carbon steel wire with galvanized process
Surface Treatment Galvanized
Mesh Size 4 x 4 inch
Mesh Type Square Opening
Wire Diameter 1/4 inch (6.35mm)
Panel Height 50 inch
Panel Length 8 ft
Color Silver, Galvanized Color
Packaging Wooden Pallet, Iron Pallet, Wooden Box, etc.
Applications Cattle fence, Horse fence, pig fence, sheep fence, farm fence, etc.
Certification CE CERTIFICATE / ISO
Product Description

Anping HUILONG has been engaged in wire mesh production since 1986, with 35 years of industry experience. Our welded wire cattle fence features a durable 4x4 inch mesh pattern with 1/4 inch wire diameter, providing exceptional strength and longevity for livestock containment.

Primary Applications: Cattle Fence / Hog Fence / Horse Fence / Bruss Wire
Specification Details
ASTM Standard A641/A641M-98
Material SAE1006/1008,Q195/235 SAE1050/1065
Coating Galvanize after welding
Galvanizing Type Hot Dip galvanized
Zinc Content 86 gm/m2
Coating Finish Shinny
Wire Diameter Tolerance 5.20 mm +/- 0.050 mm
Panel Length 16 ft long panels

Our welded wire cattle fence features a galvanized surface with bright silver finish, constructed from low carbon steel wire. The wire rods are welded at every intersection and hot-dipped galvanized after welding for superior corrosion and rust resistance.

Key Features
  • Constructed with 1/4" diameter low carbon steel wire for maximum durability
  • 4" x 4" square mesh openings provide optimal containment
  • Available in 50" height x 8' length panels for versatile installation
  • Hot-dipped galvanized after welding for superior corrosion resistance
  • Uniform welded intersections ensure structural integrity
  • Ideal for cattle, horses, pigs, sheep and other livestock
1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 0
Mesh Size Specifications
Mesh Size (inch) Mesh Size (mm) Wire Diameter (mm) Application
3/4" x 3/4" 19.05mm x 19.05mm 0.8mm-2.0mm Medium animals or garden use
4" x 4" 101.6mm x 101.6mm 2.4mm-5.1mm Construction, Garden, Animal raising, mining, industrial use
6" x 6" 152.4mm x 152.4mm 2.4mm-5.1mm Construction, Garden, Animal raising, mining, industrial use
1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 1
Quality Assurance

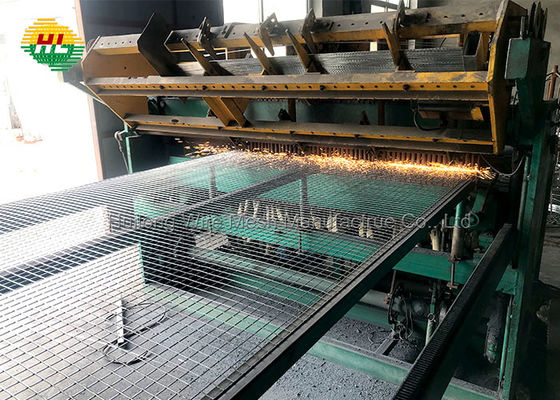

  • Precision spot welding using automated CNC welding machines
  • Secondary trimming ensures burr-free edges
  • Heavy galvanized coating for outdoor durability
  • Wire tolerance: ±2%
  • Mesh tolerance: ±5%
  • Weld strength: ≥2000N

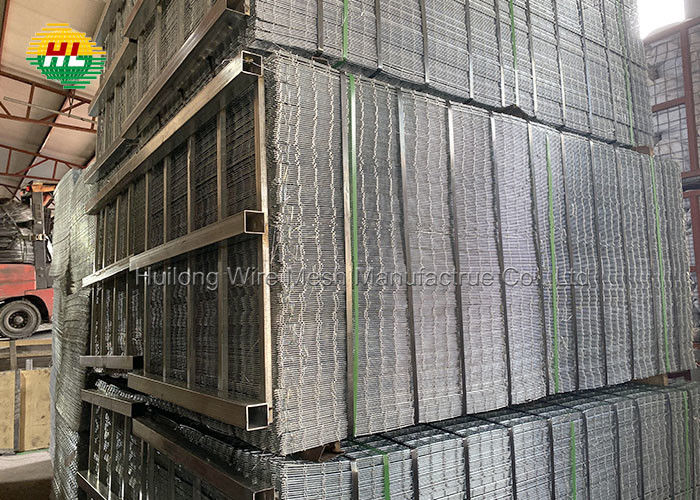

Packaging Options

Our welded wire mesh panels are securely packaged on pallets for safe transportation:

  • Wooden pallets for standard shipments
  • Iron pallets for heavy-duty requirements
  • Wooden boxes available for specialized shipping needs
  • Custom packaging solutions available
1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 2
Frequently Asked Questions
Q1: Are you a factory or trading company?

We are an 18-year manufacturing facility with our own trading company, combining production expertise with professional international trade services.

Q2: What's the MOQ?

Minimum order quantity is 200 pieces for standard products. Custom products have negotiable MOQ requirements, with no minimum for sample orders.

Q3: How do you guarantee product quality?

Our Quality Assurance Department implements strict inspections at every production stage. We provide 24-hour response and 72-hour resolution for any quality concerns.

1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 3 1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 4 1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 5 1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 6 1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 7 1 4 Inch Welded Wire Cattle Panels 4x4 Mesh Openings with Solid Structure 8
