6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating

I'm Online Chat Now
Certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
Not only your good products, but also your good after-sale services impressed me. Hope for more cooperations.

—— Michael

I ordered 3000 rolls of Welded Wire Mesh, and found that 3 rolls were damaged during transportation, but the factory compensated me within 24 hours. Overall, it is recommended.

—— Peter

It's the third time I buy from Huilong. Because of the Cornavirus, price here is very high, so I was looking for it from China. It's a very happy purchasing experience with Huilong, the quality is nothing different with the supermarket, I use the concertina wire for my fence project. The factory gave me gloves and pliers as a gift. It's worth it.

—— Paul

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating
6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating

Large Image :  6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: WWMP-HL004
Payment & Shipping Terms:
Minimum Order Quantity: 200 PIECES
Price: USD0.6-USD20
Packaging Details: WOODEN PALLET PACKAGING, IRON PALLET PACKAGING, WOODEN BOX PACKAGING, ETC.
Delivery Time: 7 DAYS AS SOON AS GET CUSTOMERS L/C OR DEPOSIT.
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: 7000-15000 PIECES PER DAY
Detailed Product Description
Product Name: 6 Inch X 6 Inch Square Mesh 3mm Diameter Hot Dipped Galvanized Welded Wire Mesh Panel For Radiant Floor Heating System Material: Galvanized Wire
Welding Type: Galvanized Before Welding Mesh Size: 6 Inch X 6 Inch
Wire Diameter: 3mm Wire Panel Length: 2m
Panel Width: 1m Packaging: Wooden Pallet, Iron Pallet, Or As Per Your Request.
Certification: CE CERTIFICATE / ISO Application: For Floor Heating, Construction Use, Etc.
High Light:

6x6 inch Welded Wire Mesh Panels

,

3mm Diameter Welded Wire Mesh Panels

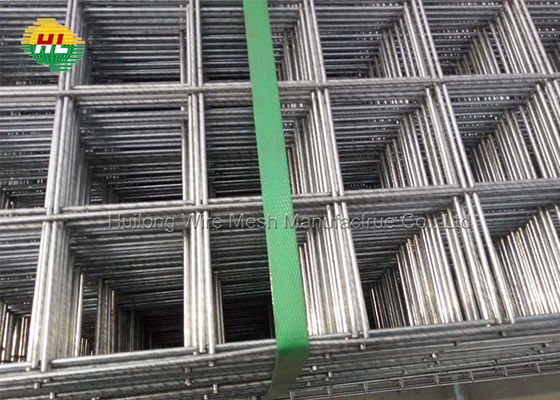

6 inch x 6 inch Square Mesh 3mm Diameter Hot Dipped Galvanized Welded Wire Mesh Panel for Radiant Floor Heating System

Anping HUILONG began to engage in the wire mesh production industry from 1986, so far it has been 35 years. Making wire mesh products widely used in all walks of life has always been the power and direction of our development and research.



In recent years, systems for heating and cooling have made an important evolution. Many manufacturers of cooling and heating systems have chosen HUILONG Welded Wire Heating Mesh panels as a major component of their qualitative system. Special customer design requirements can also be meet.



Welded Wire Mesh Panel is made of high quality low carbon steel wire after straightening and truncation and then welded by electric welding equipment. Welded Wire Mesh Panel is widely used because it has the advantages of simple structure, fast production, beautiful and practical, easy to transport and so on. Mainly used in supermarket shelves, floor heating, construction net bars, seedling breeding and so on. Floor heating galvanized welded wire mesh panels are becoming the industrial and building markets protagonist for several applications. Supply into a solution specifically targeted to meet specific customer requirements due to its extensive experience and its fine tuned organisation supported by a design office of excellence.



Radiant Floor Heating Mesh Panel is a specially designed type of panel used as a support for heating and cooling tubes.

If you're planning a radiant floor heating system, we can help provide radiant design meshes with installation tips.

Variable mesh sizes: 6 inch x 6 inch

Wire Diameter: 3.0mm

Panel Size: Length 2m x Width 1m

Available in stock. Fast delivery.

No loose wires. No extra waste.

This kind of welded wire mesh panels offer strong welding spots, flat surface and precise openings.



PRODUCT SPECIFICATION

MESH SIZE

(inch)

MESH SIZE

(mm)

WIRE DIAMETER

(mm)

APPLICATION
3/4" x 3/4" 19.05mm x 19.05mm BWG21-BWG14(0.8mm-2.0mm) Medium animals or garden using
1" x 1" 25.4mm x 25.4mm BWG21-BWG13(0.8mm-2.5mm) Medium animals or garden using
1" x 2" 25.4mm x 50.8mm BWG19-BWG13(1.0mm-2.5mm) Flowers and vegetables growing
2" x 2" 50.8mm x 50.8mm BWG16-BWG10(1.6mm-3mm) Construction, Garden, Animal raising, mining, industrial using
2’’ x3’’ 50.8mm x 76.2mm BWG16-BWG10(1.6mm-3mm) Construction, Garden, Animal raising, mining, industrial using
2”x 4” 50.8mm x 101.6mm BWG16-BWG10(1.6mm-3mm) Construction, Garden, Animal raising, mining, industrial using
3”x 3” 76.2mm x 76.2mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
3’’ x 4’’ 76.2mm x 101.6mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
4”x 4” 101.6mm x 101.6mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
6”x 6” 152.4mm x 152.4mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
8”x 8” 203.2mm x 203.2mm BWG6-BWG13(2.4mm-12mm) Construction, Garden, Animal raising, mining, industrial using
10”x 10” 254mm x 254mm BWG6-BWG13(2.4mm-12mm) Construction, Garden, Animal raising, mining, industrial using
12”x 12” 304.8mm x 304.8mm BWG6-BWG13(2.4mm-12mm) Construction, Garden, Animal raising, mining, industrial using
Support customization. Free sample available.



PRODUCT FEATURES

1. Why do so many people choose floor heating welded wire mesh panels?

At present, this kind of material is used in different indoor heating equipment. Because the material is machined, and it has good quality control. At the same time, the metal material can have good thermal conductivity and uniform heat dissipation, and the special grid structure can maintain heat for a long time, reduce heat dissipation and have good anti compression performance ability.



2. Advantages of materials

It can prevent the appearance of cracks in the ground and lead to the collapse of buildings. At present, choosing floor heating as the way for warming has become a way for many people to consider. Here, choosing floor heating net for indoor heating can improve the stability through the tight grid when the pipeline is installed. At the same time, it also has good safety and durability, the advantages of high precision, small error and good quality.



3. Compared with the new material Fiberglass Net, our Steel Welded Wire Mesh Panel’s advantages are obvious:

* Welded wire mesh panels made by iron or steel wire for floor warming and heating won’t bring allergic reactions when being installed by workers, while fiberglass material may cause severe anaphylactic reaction or even lung disease.

* Welded wire mesh panels for floor warming and heating don’t need re-gel coated to last its long life. Some fiberglass net still uses formaldehyde as a binder, which leaks out into the air. This product may also cause cancer.

* Welded wire mesh panels for floor warming and heating don't have Resin binder which smells bad, Vapor impermeability may require ventilation detail, but steel wire mesh doesn’t need.

* 2021 Coronavirus pneumonia is ubiquitous, therefore, natural raw materials are particularly important nowadays.

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 0



MASS PRODUCTION PROCEDURE

1) Raw Material Wire Preparation

2) Machine Welding

3) Galvanizing(Electro or Hot-dipped)

4) Pallet Packaging

5) Container Loading

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 1



TECHNICAL INFO

TEST REPORT WIRE TOLERANCE : 2%

TEST REPORT MESH TOLERANCE: 5%

TEST REPORT LENGTH TOLERANCE: 5%

TEST REPORT WIDTH TOLERANCE: 2%

TEST REPORT WELD TYPE: SPOT WELDING

TEST REPORT WELD STRENGTH: ≥2000N

PRODUCTION STANDARD: AS4687-2007 EN 10244-1-2009 ASTM A 740-1998

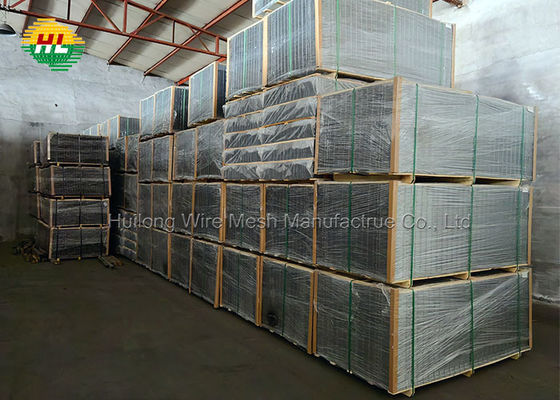

PACKAGING AND DELIVERY

1) Wooden Pallet;

2) Iron Pallet;

3) Wooden Box.



Welded Wire Mesh Panels are usually packaged in pallets. The pallet is a cargo platform, or a movable ground, so the goods loaded on the pallet are in a state of readiness that can be transferred into motion at any time. Because of the limitations of its own characteristics, the Welded Wire Mesh Panels need to be supported by pallets, so as to facilitate loading and unloading.



Usually there are two ways to load the pallet, one is wooden pallet, and the other is iron pallet. If the weight of the welded wire mesh panel is very large, then the use of iron pallet is undoubtedly the best choice, because the bearing capacity and compression capacity of iron pallet are much higher than that of wooden pallet. At the same time, we use special design to ensure the belts on the pallets stable and not loose. In addition, wooden boxes are also an alternative way of packing.

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 2



PRODUCT ADVANTAGES

Compared with the new material Fiberglass Net, our Steel Welded Wire Mesh Panel’s advantages are obvious:

* Welded wire mesh panels made by iron or steel wire for floor warming and heating won’t bring allergic reactions when being installed by workers, while fiberglass material may cause severe anaphylactic reaction or even lung disease.

* Welded wire mesh panels for floor warming and heating don’t need re-gel coated to last its long life. Some fiberglass net still uses formaldehyde as a binder, which leaks out into the air. This product may also cause cancer.

* Welded wire mesh panels for floor warming and heating don't have Resin binder which smells bad, Vapor impermeability may require ventilation detail, but steel wire mesh doesn’t need.

* 2021 Coronavirus pneumonia is ubiquitous, therefore, natural raw materials are particularly important nowadays.

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 3



FREQUENTLY ASKED QUESTIONS

Q1: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.



Q2: How to guarantee the quality of products?

We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.



Q3: What’s the MOQ?

MOQ is 200 panels for common standardized products; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.



HUILONG HISTORY

  • In 1989, HUILONG company was established, the original store was located in Anping Wire Mesh World Supermarket;
  • In 1994, Anping HUILONG wire mesh factory was founded, located in Nanhuan East Road, mainly for the domestic market and produce Welded Wire Mesh Roll, Welded Wire Mesh Panel, and Wire Mesh Fence, etc.;
  • In 1998, ethnic Chinese from Philippines visited us and confirmed the intention of cooperation;
  • In 2004, Philippines invested 1 million funds, HUILONG Wire Mesh became a joint venture company named as "ANPING HUILONG WIRE MESH MANUFACTURE CO., LTD.";
  • In 2008, HUILONG wire mesh international sales department successfully obtained European market, establishing a European trading circle based on France, Belgium and Italy;
  • In 2009, we obtained 50 acres land in Taicheng industry park, and built up a brandnew factory. The workshop occupies 25,000㎡, warehouse 10000㎡, with total 300 sales representatives and workers;
  • In 2011, our company exported to more than one hundred countries, cooperated with more than 200 customers;
  • In May 2012, Shijiazhuang international trade branch office was set up;
  • In 2013, we purchased 300㎡ of office building in Shijiazhuang;
  • In 2015, Anping HUILONG Wire Mesh Manufacture Co., Ltd joined the Anping Wire Mesh Chamber of Commerce, becoming an important part of it;
  • In 2016, we set up a new foreign trade team of 35 people, with an office area of 300 square meters;
  • In 2017-2018, our wire mesh products were well sold and well recognized in the markets of America, Africa and Southeast Asia;
  • In 2019, we registered AIBUER TRADING CO., LTD. and integrated more factory resources, enriched product categories, to provide customers with more valuable services;
  • In 2020, HUILONG invested and established Concertina Razor Wire Factory, which covers an area of 7,000 square meters;
  • In 2021, the factory department has established a domestic trade team of 30 people, with a new office area of 600 square meters.

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 4

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 5

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 6

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 7

6x6 Inch Welded Wire Mesh Panels 3mm Diameter For Radiant Floor Heating 8
