Product Details:
Payment & Shipping Terms:
|
Features: | Sharp Barbs, High Tensile Strength, Corrosion Resistance | Product: | Secure Barbed Wire Galvanized Metallic |
---|---|---|---|
Alloy Or Not: | Non-Alloy | Finish: | Hot Dipped Galvanzied |
Materal: | Low Carton Steel Wire, Steel Wire | Package: | 25kg/roll Or Customed |
Use: | Protection | Key Word: | Security Barbed Wire Galvanized |
Highlight: | Secure Metallic galvanized barbed wire,25kg galvanized barbed wire,multiple galvanised razor wire |
Barbed wire, also known as ordinary barbed wire, commonly known as "barbed wire", refers to the isolation and protection products woven with barbed wire entangled in the main wire (filament) through positive twisting, reverse twisting, positive and negative twisting or traditional twisting processes. The installation form of thorn rope in construction is generally linear.
The concept of "thorn rope" has a broad sense and a narrow sense, here "thorn rope" refers to what people usually say "thorn rope", specifically refers to "ordinary thorn rope", not including "blade thorn rope", in the concept of the connotation of the two is a parallel relationship, rather than including the relationship.
The barbed rope is composed of two parts: the main filament (also known as "filament") and the Nestor filament, and the filament is divided into single and double strands.
The material of the barbed wire is: low carbon steel wire (that is, iron wire), galvanized wire, PVC plastic coated wire, plastic coated wire, etc.
The use of thorn rope: used for grassland boundary, railway, highway isolation protection, etc.
GALVANIZED BARBED WIRE | ||||
Line Wire and Barb Wire Diameter (BWG) |
Approximate Length per Kilogram in meter | |||
Barbs Spacing 3'' | Barbs Spacing 4'' | Barbs Spacing 5'' | Barbs Spacing 6'' | |
12 x 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12 x 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12.5 x 12.5 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12.5 x 14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13 x 13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13 x 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13.5 x 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14 x 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14.5 x 14.5 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15 x 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15.5 x 15.5 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |

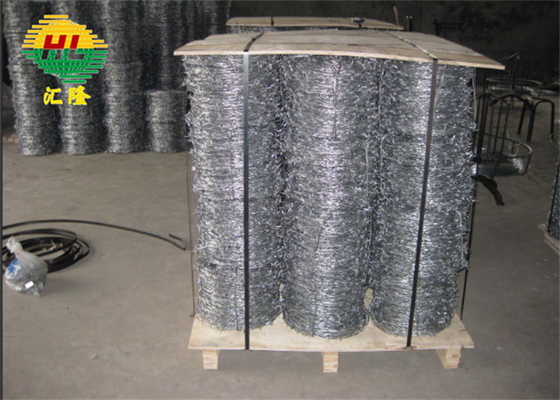

Our Galvanized Barbed Wire is carefully packaged to ensure safe delivery to our customers.
1. Packaging:
2. Shipping:
At Galvanized Barbed Wire, we take great care in packaging and shipping our products to ensure they arrive in perfect condition. We are committed to providing a smooth and efficient delivery process for our customers.
