Green Pvc Coted 2.7mm/3.4mm 2x1x1 80x100 Mesh Hexagonal Gabion Box

Cage box with high corrosion resistance, high strength, ductility of low carbon steel wire or coated PVC above the use of mechanical braid, the use of net cage box structure. According to ASTM and EN standards, the diameter of low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the stone cage wire is not less than 38kg/ square meter, the weight of the metal coating is generally higher than 245g/ square meter, the diameter of the stone cage wire is generally greater than the diameter of the wire. The length of the twisted-pair part shall not be less than 50mm. To ensure that the wire metal coating and polyvinyl chloride coating of the hinge part is not damaged.Gabion box mesh is widely used, widely used in water conservancy, Bridges, road engineering, at the same time to avoid floods, landslides, debris flow and other natural disasters have a significant impact.

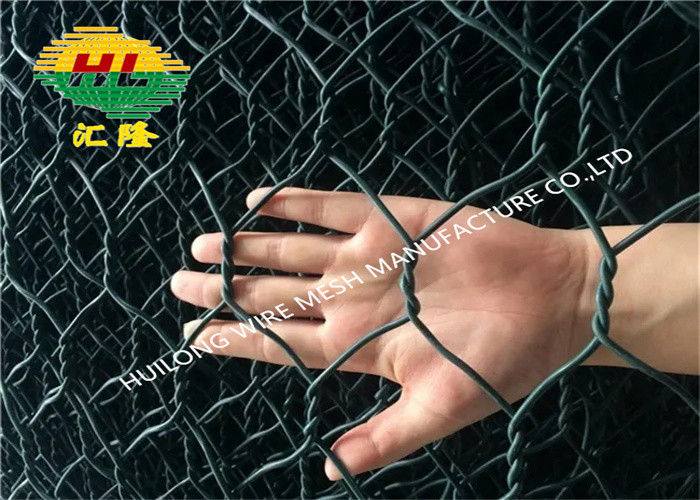

Green Pvc Coted 2.7mm/3.4mm 2x1x1 80x100 Mesh Hexagonal Gabion Box are made of high quality low carbon steel wire, then fininshed wire the green PVC. They are double twisted woven into hexagonal mesh shape. Our factory is certified in compliance with ISO 9001,ASTM and EN.

Make you satisfied with our forever pursuit.

SPECIFICATIONS

GABION BASKET MATERIALS

1) Heavy Galvanized steel wire: Excellent low-carbon steel wire, diameter: 2.0mm-4.0mm, tensile strength: no less than 380Mpa. The surface adopts hot galvanization for protection. The depth of the protective galvanized layer (max. 300g/m2) is decided according to customer's demands.

2) Zinc-5% aluminum-mixed alloy steel wire: (also called galfan steel) a new kind of material appearing recently with corrosion resistance 3 times of traditional pure galvanization; diameter: 2.0mm-4.0mm; tensile strength: no less than 380Mpa.

3) Galvanized steel wire with plastic coating: Excellent low-carbon steel with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it merge into the surrounding environment.

4) Zinc-5% aluminum-mixed alloy steel wire with PVC coating: alloy steel wire with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it to merge into the surrounding environment.

POPULAR SIZES YOU CAN CHOOSE

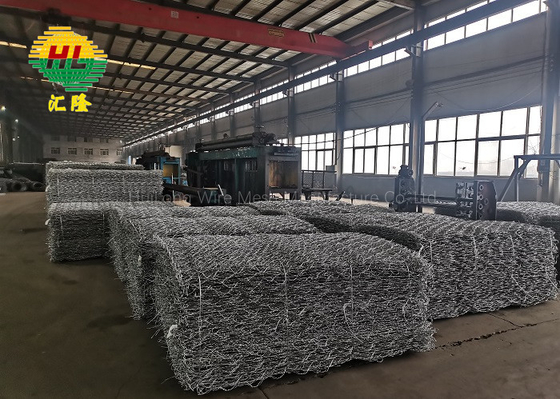

MASS PRODUCTION PROCEDURE

Wire Material Preparation---Machine weaving---Lacing wire installation---Packaging into bundles---Container loading

PACKAGING DETAILS

Gabion Basket is usually packaged in bundles. According to the specific sizes, Gabion Baskets are woven by machines and then will be folded into bundles, fixed with a binding belt, and then loaded into the container. The advantage of doing so is to save container space, so that it achieves the maximum utilization rate. When using, the bundles can be folded, with binding wire to assemble it and stones to fill in it, forming a complete Gabion Basket. It is strong and durable and easy to install, which plays an important role in resisting floods and making dams strong.

APPLICATIONS

Control and guide rivers and flood DAMS, rock protection, water and soil erosion prevention, bridge protection fixed structures, sea defence works, harbour works, retaining walls, road protection

OUR SERVICES

•  As a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
•  We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
•  Free samples are available.
• Specifications can be customized as per your request.
