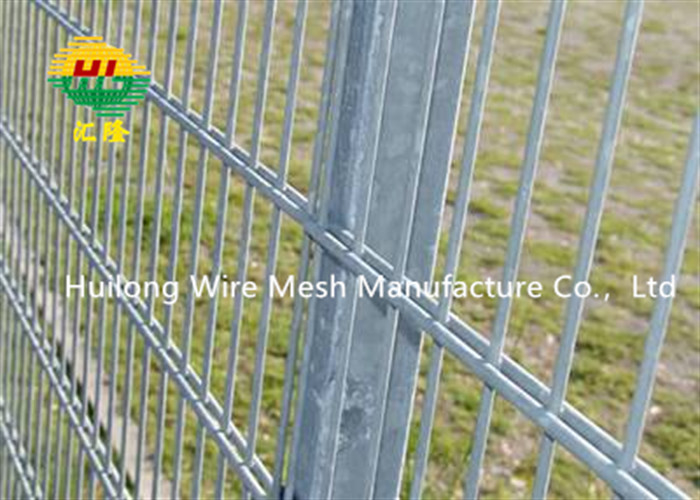

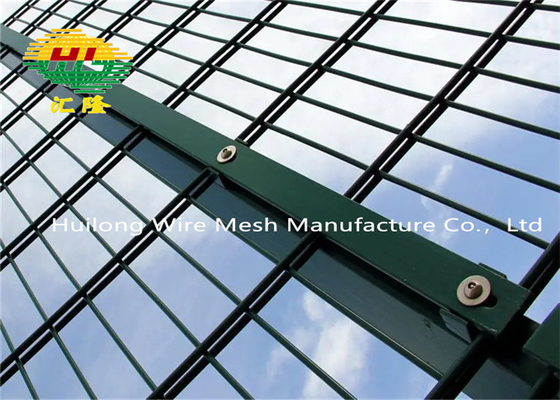

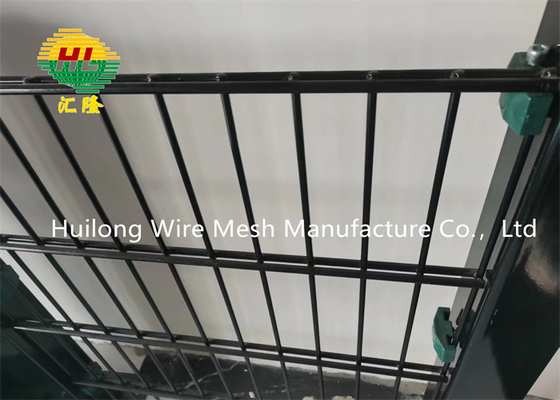

2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width

2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width
2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width

Large Image :  2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: WMF-HLLO0401
Payment & Shipping Terms:
Minimum Order Quantity: 100 PIECES
Price: USD8.0--USD18.0
Packaging Details: WOODEN PALLET, METAL PALLET, ETC.
Delivery Time: 7 DAYS AS SOON AS WE GET CUSTOMER'S L/C OR DEPOSIT.
Payment Terms: L/C, T/T AT SIGHT
Supply Ability: 3000 PIECES PER DAY
Detailed Product Description
Product Name: High Qualtity 2D Green PVC Coated 868/656 Double Wire Welded Mesh Fence Material: Low Carbon Steel Wire
Wire Diameter: 8-6-8mm, 6-5-6mm Panel Height: 800mm, 1000mm, 1200mm, 1400mm, 1600mm, 1800mm, 2000mm
Panel Width: 2500mm, 3000m Color: All Colors In RAL Standard Colors Are Avaliable
Finish: Hot Dip Galvanized, Powder Coated Max Height & Width: 2500mm & 3000mm According To Loading Containers Requirements
Application: Residential, Industrial, Commercial And Recreational Sites.
High Light:

656 PVC Coated Welded Mesh Fence

,

Welded Mesh Fence 3000m

,

2D Green 868 Welded Mesh

High Qualtity 2D Green PVC Coated 868/656 Double Wire Welded Mesh Fence

Double-wire welded fences, as the name suggests, has 2 horizontal wire and 1 vertical wire,it different with the noamal welded wire mesh, so they have better stability and longer utility than regular welded fences.At the same time, the design of double horizontal wire clip vertical wire also makes the fence more beautiful with a certain decorative role.

The High Qualtity 2D Green PVC Coated 868/656 Double Wire Welded Mesh Fence producted by Huilong company have excellent protection performance, it is suitable for the maintenance of farms, pastures, sports fields, gardens and courtyards.Also due to the pvc coated surface treatment,the service life of the fence has been greatly increased, and the corrosion resistance of the fence has also been strengthened.

Huilong wire mesh manufacture Co.,Ltd was founded in 1989, focusing on the development and production of welded mesh rolls,welded mesh fence, concertina razor wire. After nearly 34 years of development and efforts, we have become an area of more than 5,000 square meters with he production of a variety of products of the machine 300 sets of all categories of screen and fence products of industry and trade integrated company. At the same time, our export trade has been nearly 20 years ago since 2004, you can rest assured to send your order to us, we will do our best to ensure the quality and quantity of products delivered to your hands



2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 0

Thesheets below are our usual production specifications, only for your reference. Hope these sheets are helpful to you.



Name Mesh size Wire thickness Surface treatment Panel width Panel height(m)

Panel weight

(kg)

Double Wire  Mesh Fencing

50*200mm

55*200mm

2X6mm horizontal wire,5mm vertical wire



Galvanized and

electro static

Polyester

Powder coated

2.50 0.63 9.00
0.83 11.50
1.03 14.20
1.23 16.8
1.43 19.3
1.83 21.90
1.83 24.60
2.03 27.10
2.23 29.20
2.43

31.7



Name Mesh size Wire thickness Surface treatment Panel width Panel height(m) Panel weight(kg)
Double Wire Mesh Fencing

50*200mm

55*200mm

2X8mm horizontal vertical wire,6mm vertical wire



Galvanized and

electro static

Polyester

Powder coated

2.50 0.63 14.60
0.83 18.80
1.03 23.00
1.23 27.10
1.43 31.30
1.63 35.40
1.83 39.50
2.03 43.75
2.23 48.00
2.43 52.00

2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 1


MATCHED POSTS
The posts are available in a range of lengths to accommodate panel heights and ground conditions.
In addition, many variations are available:
● wall fixing plates, cranked posts or base plated
● cranked or straight extensions for barbed or razor wire
● cranked panels



Size Wall thickness Surface treatment Length Base plate Rain hat
60*40mm

2.0mm

2.5mm

Galvanized and

Electrostatic

Polyester

Powder

coated

On the basis of panel

height

available

Plastic

Or

metal

80*40mm



Size Wall thickness Surface treatment Length Base plate Rain hat
60*40mm

2.0mm

2.5mm

Galvanized and

Electrostatic

Polyester

Powder

coated

On the basis of panel

height

available

Plastic

Or

metal

80*40mm


2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 2

APPLICATIONS

2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 3

2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 4



PACKAGING
Mesh panels:
Metal pallet wrapped with cardboard plate and then wrapped with plastic film;
Post: Wrapped with PP bags, then put on pallet, wrapped with plastic film;

2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 5
 2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 6





QUALITY INSPECTION BEFORE LOADING

Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.

2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 7

2D Green 868/656 Double Wire Welded Mesh Fence PVC Coated 3000m Width 8

QUALITY CONTROL

HUILONG has always adhered to strict quality control in last 30 years, starting from raw material control to finished products,even packing and loading to container. Three quality inspectorsare responsible for different goods, ensuring that all goods arein good condlition before shipment.160 experienced workers, efficient and advancedmachinery and equipment, keep Huilong’s product quality at a high level always. All thatkeep huilong an more than 1000 containersoutput each year in a stableway.Unlike other factory, we never do shoddy work and use inferior material to compete price with others.HUIL ONG always insist on quality, and we prefer good pricewith good quality for long term business.For the wire mesh and fence coating issue, HUILONG will not lose every step as customers’ request.



AFTER-SALES SERVICE SYSTEM

1) After the order is confirmed, we will update the production schedule of the goods in time.

2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.

3) If any quality problem is found before delivery, we will deal with it in time.

4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.
