Product Details:
Payment & Shipping Terms:
|
Product Name: | South Africa Anti Climb Flat Or Curve 358 Welded Mesh Security Fencing 8GA Multipurpose | Material: | Low Carbon Steel Wire,galvanized Steel Wire |
---|---|---|---|
Color: | All Colors In Ral Standard Colors Are Avaliable | Tensile Range: | 540-690N/m2 |
Application: | Fence For Some High Security Require Areas | Max Height & Width: | 2500mm & 3000mm According To Loading Containers Requirements |
Surface Treatment: | Electro Galvanized, Hot-dipped Galvanized, PVC Coated. | Wire Diameter: | 8GA(4mm) Or 10GA(3mm) |
Mesh Size: | 76.2X12.7mm,76.2X25mm,76.2X50mm | Key Words: | Africa Anti Cut Flat 358 Welded Mesh Security Fencing 8GA Multipurpose |
Highlight: | 358 Welded Mesh Security Fence 8GA,Anti Climb Welded Mesh 8GA,358 security mesh panels Multipurpose |
This anti-climb high security mesh fence (sometimes called Clear View fence) has holes and welds at every intersection to eliminate foot and finger grips, prevents objects from passing, and is especially effective when using traditional hand cutting tools. Because of the strength of the wires and the configuration of the panel mesh, the fence is difficult to penetrate and expand, so it can be an effective deterrent to potential intruders. This rigid, robust, pressure-resistant barrier is manufactured from 4mm or 3mm vertical and 4mm horizontal steel wire with a diameter of 12.7mm x 76.2mm and resistance welded at each intersection.
Features of High-Security fences
Anti-climb – Small meshopenings. And, hands and feet can’t pass through.
Anti-cut – Strong wires and welded joints make it difficult for wire cutters and bolt cutters to cut.
Multipurpose – Widely application , including school, residential area, industrial area, and entertainment zones.
Durability – Made of high quality steel wire, then galvanized or polymer powder coating for surface treatment, to ensure long service life.
High strength welding at all intersections. Ensure the life of the product.
Good view, dense mesh to ensure line of sight, also ensure electronic monitoring.
Specification Of Flat Panel
mesh | wire thickness | surface treatment | panel width | height |
76.2*12.7mm
|
Horizontal: 3.0mm,3.5mm,4.0mm Vertical:4.0mm |
Galvanized and Electrostatic polyestar power coated
Hot dipped galvanized |
2.5m 2.2m |
1800mm |
2000mm | ||||
2100mm | ||||
2200mm | ||||
2400mm | ||||
2500mm | ||||
3000mm |

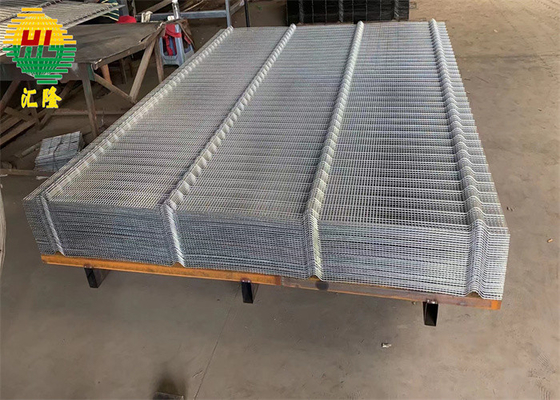

Specification Of Curve Panel
mesh | wire thickness | surface treatment | Folds nos | panel width | height |
76.2*12.7mm
|
Horizontal: 3.0mm,3.5mm,4.0mm Vertical:4.0mm |
Galvanized and Electrostatic polyestar power coated
Hot dipped galvanized |
3 |
2.5m 2.2m |
1800mm |
3 | 2000mm | ||||
4 | 2100mm | ||||
4 | 2200mm | ||||
4 | 2400mm | ||||
5 | 2500mm | ||||
6 | 3000mm |
How about the surface treatment?
HUILONG factory adopts advanced surface treatment and coating technology according to global environmental standards. We adopt German pretreatment techniques and American coating technology. A famous intermnational brand company design us the powder, which interpret the unique environmental protecting capability from diferent aspects. HUILONG is an expert in anti-corrosive technology in China with normal & hot-dip galvanizing, nano ceramic and polyester powder coating. Leading anti-corrosive technology makes our fence and gate products long service life.
External Coating(Polyester Coating): effectively fight against the erosion of UV, and keep the stability of the surface;
meanwhile, it has long-term fouling performance and capacity of the surface self-cleaning
Mid. Coating (Nano Ceramic Coating): can effectively enhance the adhesion of the coating and the substrate
Bottom Coating (Hot-dip Galavanizing): play the role of electrochemical protection, and avoid the steel substrate to be damaged.
INSTALLATION
PACKAGING
APPLICATION
● Prison.● Military base.● Airport.● Railway.● Shipping port.● Power plant.● Hospital.● School.● Community.
● Park● Bridge.● Roadside.● Farm.● Borderline
QUALITY INSPECTION BEFORE LOADING
Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.
QUALITY CONTROL
HUILONG has always adhered to strict quality control in last 30 years, starting from raw material control to finished products,even packing and loading to container. Three quality inspectorsare responsible for different goods, ensuring that all goods arein good condlition before shipment.160 experienced workers, efficient and advancedmachinery and equipment, keep Huilong’s product quality at a high level always. All thatkeep huilong an more than 1000 containersoutput each year in a stableway.Unlike other factory, we never do shoddy work and use inferior material to compete price with others.HUIL ONG always insist on quality, and we prefer good pricewith good quality for long term business.For the wire mesh and fence coating issue, HUILONG will not lose every step as customers’ request.
AFTER-SALES SERVICE SYSTEM
1) After the order is confirmed, we will update the production schedule of the goods in time.
2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.
3) If any quality problem is found before delivery, we will deal with it in time.
4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.
FREQUENTLY ASKED QUESTIONS
Q1: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
Q2: What’s the MOQ?
MOQ is 100 PIECES for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q3: How to guarantee the quality of products?
We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
HUILONG HISTORY
Contact Person: LV
Tel: 8613780284669
