Product Details:
Payment & Shipping Terms:
|

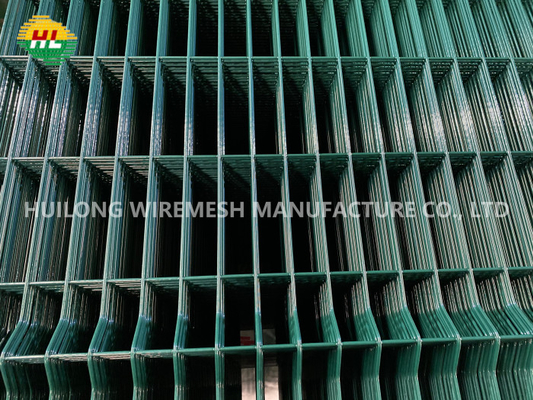

Product Name: | Hot-dip Galvanized V Mesh Fencing For Strong And Rigid Construction | Max Height & Width: | 2500mm & 3000mm According To Loading Containers Requirements |
---|---|---|---|
Material: | Low Carbon Steel Wire | Color: | All Colors In RAL Standard Colors Are Avaliable |
Surface Treatment: | Electro Galvanized, Hot-dipped Galvanized, PVC Coated. | Application: | Fence For Construction, Garden, Farm, Residential Areas, Etc. |
High Light: | 2500mm green v mesh fencing,rigid construction green v mesh fencing,hot dip galvanized v mesh fencing |
Hot dip galvanizing wires melt zinc ingots at high temperature, and then let the iron wire pass slowly, so that zinc can be attached to the surface of the iron wire. The galvanizing method is called hot dip galvanizing, and the zinc content of hot dip galvanized wires is 30-60g/m2.
When it comes to security, 'V' mesh fencing is one of the most comprehensive, cost effective solutions. It provides fantastic security, looks and value for money without compromising on any of the features you would expect from a top of the line security fence.
Name |
Mesh size |
Wire thickness |
Surface treatment |
Panel width |
Panel height(m) |
Panel weight (kg) |
Double panel |
50*200mm 55*200mm |
5mm vertical wire, 6mm horizontal wire |
Galvanized and electro static Polyester Powder coated |
2.50 |
0.63 |
9.00 |
0.83 |
11.50 |
|||||
1.03 |
14.20 |
|||||
1.23 |
16.8 |
|||||
1.43 |
19.3 |
|||||
1.83 |
21.90 |
|||||
1.83 |
24.60 |
|||||
2.03 |
27.10 |
|||||
2.23 |
29.20 |
|||||
2.43 |
31.7 |
Name |
Mesh size |
Wire thickness |
Surface treatment |
Panel width |
Panel height(m) |
Panel weight(kg) |
Double panel |
50*200mm 55*200mm |
6mm vertical wire, 8mm horizontal wire |
Galvanized and electro static Polyester Powder coated |
2.50 |
0.63 |
14.60 |
0.83 |
18.80 |
|||||
1.03 |
23.00 |
|||||
1.23 |
27.10 |
|||||
1.43 |
31.30 |
|||||
1.63 |
35.40 |
|||||
1.83 |
39.50 |
|||||
2.03 |
43.75 |
|||||
2.23 |
48.00 |
|||||
2.43 |
52.00 |
VARIOUS POSTS
The posts are available in a range of lengths to accommodate panel heights and ground conditions.
In additin, many variations are available:
● wall fixing plates, cranked posts or base plated
● cranked or straight extensions for barbed or razor wire
● cranked panels
Size |
Wall thickness |
Surface treatment |
Length |
Base plate |
Rain hat |
60*40mm |
2.0mm 2.5mm |
Galvanized and Electrostatic Polyester Powder coated |
On the basis of panel height |
available |
Plastic Or metal |
80*40mm |
Size |
Wall thickness |
Surface treatment |
Length |
Base plate |
Rain hat |
60*40mm |
2.0mm 2.5mm |
Galvanized and Electrostatic Polyester Powder coated |
On the basis of panel height |
available |
Plastic Or metal |
80*40mm |
APPLICATIONS
PACKAGING
Fence panels: Metal pallet wrapped with cardboard plate and then wrapped with plastic film.
Post: Wrapped with PP bags, then put on pallet, wrapped with plastic film;
QUALITY INSPECTION BEFORE LOADING
Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.
QUALITY CONTROL
HUILONG has always adhered to strict quality control in last 30 years, starting from raw material control to finished products,even packing and loading to container. Three quality inspectorsare responsible for different goods, ensuring that all goods arein good condlition before shipment.160 experienced workers, efficient and advancedmachinery and equipment, keep Huilong’s product quality at a high level always. All thatkeep huilong an more than 1000 containersoutput each year in a stableway.Unlike other factory, we never do shoddy work and use inferior material to compete price with others.HUIL ONG always insist on quality, and we prefer good pricewith good quality for long term business.For the wire mesh and fence coating issue, HUILONG will not lose every step as customers’ request.
AFTER-SALES SERVICE SYSTEM
1) After the order is confirmed, we will update the production schedule of the goods in time.
2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.
3) If any quality problem is found before delivery, we will deal with it in time.
4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.
FREQUENTLY ASKED QUESTIONS
Q1: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
Q2: What’s the MOQ?
MOQ is 500 pieces for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q3: How to guarantee the quality of products?
We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
