Product Details:
Payment & Shipping Terms:
|
Features: | Beautiful Appearance, High Tensile Strength, Add More Security, Etc. | Product Name: | Fence Wall Hot Dipped Galvanized Barbed Wire For Protection And Animal Raising |
---|---|---|---|
Material: | Galvanized Iron Wire; PVC Coated Iron Wire In Green, Blue, Gray And Any Other Colors | Wire Diameter: | 14 Gauge |
Barb Length: | 1.5-3cm | Barb Spacing: | 7.5-15cm |
Zinc Coating: | 30-200g/sqm | Waeving Type: | Normal Twist, Reverse Twist |
Coil Length: | 100m, 150m, 200m, 250m, 500m, Etc. | Coil Weight: | 8kg, 10kg, 15kg, 20kg, 25kg/coil |
Color: | Silver/Galvanized, Dark Green, Gray, Or As Per Your Request | Packaging: | In Bulk; On Wooden Pallet |
Highlight: | Galvanized Razor Barbed Wire,13x14 Razor Barbed Wire,Traditional Twist Galvanized Barbed Wire |
Galvanized Barbed Wire is a kind of modern security fencing material and has been extensively used in many countries. With Heavy zinc coating, Barbed Wire has higher anti-rust ability and can be used for longer time. Barbed Wire can be installed as deterrent to the perimeter intruders with piecing and cutting razor blades mounted at the top of the wall. Galvanized Barbed Wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts. It usually has common specifications, but if you have special needs, we can also do customization as per your request.
SPECIFICATIONS
GALVANIZED BARBED WIRE | ||||
Line Wire and Barb Wire Diameter (BWG) |
Approximate Length per Kilogram in meter | |||
Barbs Spacing 3'' | Barbs Spacing 4'' | Barbs Spacing 5'' | Barbs Spacing 6'' | |
12 x 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12 x 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12.5 x 12.5 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12.5 x 14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13 x 13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13 x 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13.5 x 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14 x 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14.5 x 14.5 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15 x 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15.5 x 15.5 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
ADVANTAGED FEATURES
High security
Long service life
Good rust-resistance ability
Anti-climbing and anti-theft
MASS PRODUCTION PROCEDURE
Producing Galvanized Barbed Wire is relatively simple. It is produced by an automatic machine, through which the line wire and the barb wire are twisted together and then rolled into a coil. See the pictures below. The speed of the machine is fast, so the production capacity is also excellent.

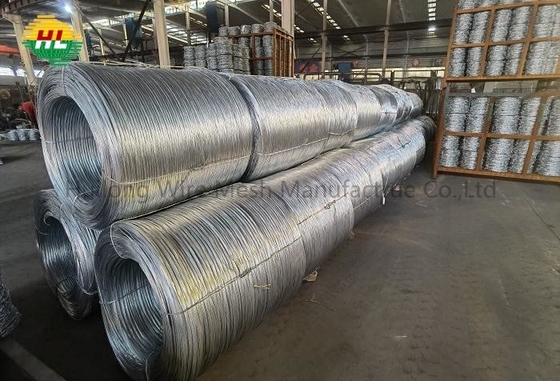

1) Raw Material Preparation----High quality galvanized iron wire
2) Machine Weaving or twisting
3) PVC Coating (Color as per requirements)
4) Packaging
5) Container Loading
PACKAGING DETAILS
Barbed Wire is usually made into coils. For container loading, we have bulk loading and wooden pallet loading. Our packaging will ensure the Barbed Wire not being damaged during storage and shipment. According to the customer’s instruction, we will also put the label paper into the packaging. There will be a certain product description on the label paper, representing product specifications, so that you can be clear about the product information. If you have other special requirements, for example your own label, we can also customize the packaging according to your requirements. In a word, if you have any requirements, please come forward and we will give you the best solution.
APPLICATIONS
Galvanized Barbed Wire is widely used for the separation and protection of the boundary of grassland, railway, highway, prison, private field, etc. It can also be used on the top of other types of fences, such as Chain Link Fence, Welded Wire Mesh Fence, Concertina Barbed Wire, etc., to add security in your private property.
RELATED PRODUCTS
You may also like the following products and accessaries to match your Barbed Wire, and we can also arrange the other goods according to your needs.
