Product Details:
Payment & Shipping Terms:
|
Product Name: | River Bank Protect Galvanized PVC Coated Galfan Hexagonal Gabion Basket Gabion Box Wire Mesh | Material: | PVC Coated Steel Wire |
---|---|---|---|
Standard: | ASTM A975, EN | Opening: | 60X80, 80X100,100X120,120X150MM |
Mesh Wire Diameter: | 2.5mm-3.4mm | Packaging: | In Bundles |
Application: | For Slope Support, Foundation Pit Support, Mountain Rock Hanging Net With Shotcrete, Slope Planting, Railway And Highway Isolation Block | ||
Highlight: | Gabion Wire Mesh Cages,Prevent Soil Erosion Gabion Wire Mesh,3x1x1m Gabion Box Wire Mesh |
Gabion wire mesh cages are used in different environments, and their corrosion resistance is also different, mainly including general corrosion resistance, relative corrosion resistance and strong corrosion resistance. The general corrosion-resistant gabion mesh uses ordinary hot-dip galvanized steel wire, which has low zinc content, high requirements on the surrounding environment, and long service life. It is usually used above the water surface. Relatively corrosion-resistant gabion mesh is composed of high-heat galvanized iron wire. Its zinc content is high, and the requirements for the surrounding environment are not very high. It is widely used, corrosion resistance, acid and alkali resistance are also better, and the service life is generally resistant. Twice as corrosive gabion cage. The strongest corrosion resistance is the zinc-aluminum alloy wire, which has good corrosion resistance and pH. It can be used not only on the surface of the water, but also under water. The longest service life is about forty or fifty years.
COMMON SPECIFICATIONS FOR PVC COATED GABION
Mesh Opening | 60 x 80mm | 80 x 100mm | 100 x 120mm | 120 x 150mm |
Diameter | Usually between 2.5mm and 3.4mm | |||
Gabion Size | 2 x 1 x 1m | 2 x 1 x 0.5m | 4 x 1 x 1m | 4 x 2 x 1m |
Other specifications from customers are also available |
GABION BOX MATERIALS
1) Galvanized steel wire: Excellent low-carbon steel wire, diameter: 2.0mm-4.0mm, tensile strength: no less than 380Mpa. The surface adopts hot galvanization for protection. The depth of the protective galvanized layer (max. 300g/m2) is decided according to customer demands.
2) Zinc-5% aluminum-mixed mishmash alloy steel wire: (also called galfan steel) a new kind of material appearing recently with corrosion resistance 3 times of traditional pure galvanization; diameter: 2.0mm-4.0mm; tensile strength: no less than 380Mpa.
3) Galvanized steel wire with plastic coating: Excellent low-carbon steel with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it merge into the surrounding environment.
4) Zinc-5% aluminum-mixed mishmash alloy steel wire: alloy steel wire with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it to merge into the surrounding environment.
POPULAR SIZES YOU CAN CHOOSE

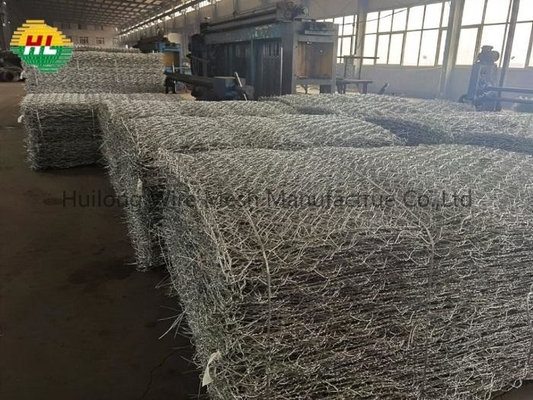

MASS PRODUCTION PROCEDURE
Weaving of Gabions:
1) Gabions are molded once. Except cover plates, the edge plates, end plates and bottom plates are inseparable. Length/width tolerance (±5%) height tolerance (±5%). The interior part is isolated into independent units by adopting clapboards every other one meter.
2)Gabions adopt assembly mode. The cover plates, the edge plates, end plates and bottom plates are separately assembled into cages wound by spiral steel wire. All the edge wire of the cage adopts thick wire to improve the strength of the gabions.

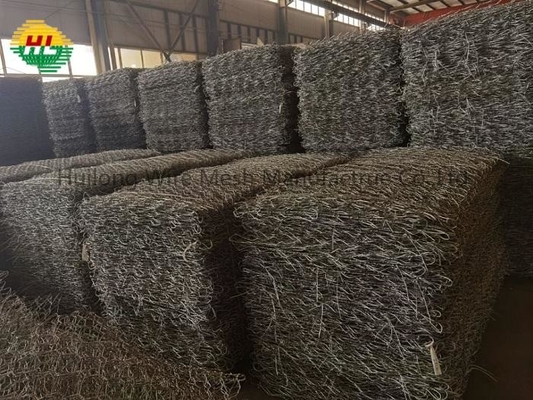

PACKAGING DETAILS

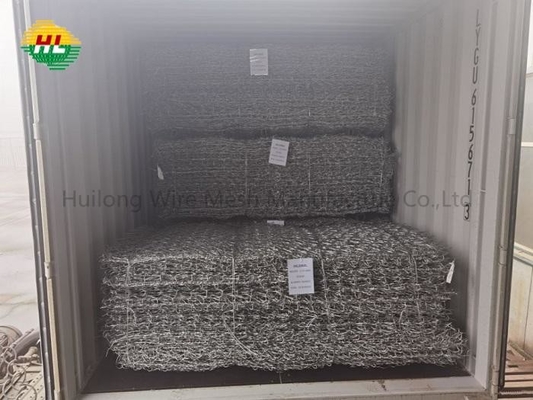

Gabion Box Wire Mesh is usually packaged in bundles. According to the specific sizes, Gabion Box panels are woven and then will be folded into bundles, fixed with a binding belt, and then loaded into the container. The advantage of doing so is to save container space, so that it achieves the maximum utilization rate. When using, the bundles can be folded, with binding wire to assemble it and stones to fill in it, forming a complete Gabion Box. It is strong and durable, and plays an important role in resisting floods and making dams strong.
APPLICATIONS
The Gabions must be filled with rock ranging between 100 mm and 250 mm. The range in sizes may allow for a variation of 5% oversize and / or 5% undersize rock, provided it is not placed at the exposed surface. In all cases, oversize rock shall not be larger than 300 mm and the undersize rock shall not be smaller than 100 mm. Rocks shall be hard, angular to round, durable and of such quality that they shall not disintegrate on exposure to water or weathering during the life of the structure. Care should be taken when placing the stone to ensure that the Polymer coating on gabions is not damaged. All visible faces should be carefully hand placed for appearance purposes.
