Home ProductsGabion Box Wire Mesh

2*1*1m 80*100mm Aperture Gabion Basket With Rocks

I'm Online Chat Now
Certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
Not only your good products, but also your good after-sale services impressed me. Hope for more cooperations.

—— Michael

I ordered 3000 rolls of Welded Wire Mesh, and found that 3 rolls were damaged during transportation, but the factory compensated me within 24 hours. Overall, it is recommended.

—— Peter

It's the third time I buy from Huilong. Because of the Cornavirus, price here is very high, so I was looking for it from China. It's a very happy purchasing experience with Huilong, the quality is nothing different with the supermarket, I use the concertina wire for my fence project. The factory gave me gloves and pliers as a gift. It's worth it.

—— Paul

2*1*1m 80*100mm Aperture Gabion Basket With Rocks

2*1*1m 80*100mm Aperture Gabion Basket With Rocks
2*1*1m 80*100mm Aperture Gabion Basket With Rocks 2*1*1m 80*100mm Aperture Gabion Basket With Rocks 2*1*1m 80*100mm Aperture Gabion Basket With Rocks

Large Image :  2*1*1m 80*100mm Aperture Gabion Basket With Rocks Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: GBWM-HL011
Payment & Shipping Terms:
Minimum Order Quantity: 100 SETS
Price: USD12.00-20.00/SET
Packaging Details: IN BUNDLES
Delivery Time: 15 DAYS AS SOON AS WE GET CUSTOMERS L/C OR DEPOSIT.
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: 60 TONS PER DAY
Detailed Product Description
Product Name: 2*1*1m With 80*100mm Aperture Gabion Basket With Stones Material: Low Carbon Steel Wire, Galvanized Wire, PVC Coated Iron Wire
Standard: ASTM A975, EN Finish: Galvanized, PVC Coated
Opening: 60x80, 80x100, 100x120mm Mesh Wire Diameter: 2.0mm, 2.2mm, 2.7mm
Selvedge Wire Diameter: 2.7mm, 3.0mm, 3.4mm Gabion Box Length: 1m, 1.5m, 2m, 3m, 4m
Gabion Box Width: 0.5m, 1m Gabion Box Height: 0.5m, 1m
Packaging: In Bundles Application: For Slope Support, Foundation Pit Support, Mountain Rock Hanging Net With Shotcrete, Slope Planting, Railway And Highway Isolation Block
High Light:

2x1x1m Gabion Basket With Rocks

,

80x100mm Gabion Basket With Rocks

2*1*1m With 80*100mm Aperture Gabion Basket With Stones

Gabion mesh can be used for slope support, pit support, mountain rock face hanging net spraying, slope vegetation (greening), railroad highway isolation barrier net, it can also be made into box cage, net mat, used for river, dam and sea pond anti-scouring protection, reservoir, river interception with net box. The most serious disaster of rivers is that the water scours the river banks and damages them, causing flooding, resulting in a lot of loss of life and property and a lot of soil erosion. Therefore, when dealing with the above problems, the application of the ecological grid structure becomes one of the good solutions, which can make the riverbed and riverbank protected for a long time.





SPECIFICATIONS

STANDARD MESH AND WIRE SIZES
Standard Mesh dimensions XxY

Mesh wire Gl dia

(mm)

Selvedge wire

Gl dia (mm)

60x80MM 2.0 2.7
80x100MM 2.2 3.0
100x120MM 2.7 3.4

Gabion Box Sizes
Length (m) Width (m) Height (m)
1 0.5 or 1 0.5 or 1
1.5 1 0.5 or 1
2 0.5 or 1 0.5 or 1
3 1 0.5 or 1
4 1 0.5 or 1

Mattress Sizes
Length (m) Width (m) Height (m)
3 2 0.17, 0.23 or 0.30
6 6 0.17, 0.23 or 0.30


2*1*1m 80*100mm Aperture Gabion Basket With Rocks 0



GABION BOX MATERIALS

1) Galvanized steel wire: Excellent low-carbon steel wire, diameter: 2.0mm-4.0mm, tensile strength: no less than 380Mpa. The surface adopts hot galvanization for protection. The depth of the protective galvanized layer (max. 300g/m2) is decided according to customer demands.



2) Zinc-5% aluminum-mixed mishmash alloy steel wire: (also called galfan steel) a new kind of material appearing recently with corrosion resistance 3 times of traditional pure galvanization; diameter: 2.0mm-4.0mm; tensile strength: no less than 380Mpa.



3) Galvanized steel wire with plastic coating: Excellent low-carbon steel with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it merge into the surrounding environment.



4) Zinc-5% aluminum-mixed mishmash alloy steel wire: alloy steel wire with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it to merge into the surrounding environment.



POPULAR SIZES YOU CAN CHOOSE

2*1*1m 80*100mm Aperture Gabion Basket With Rocks 1



MASS PRODUCTION PROCEDURE

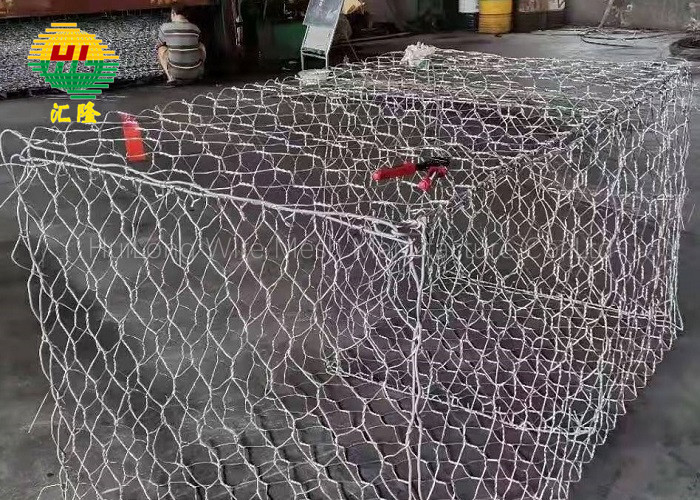

Weaving of Gabions:

1) Gabions are molded once. Except cover plates, the edge plates, end plates and bottom plates are inseparable. Length/width tolerance (±5%) height tolerance (±5%). The interior part is isolated into independent units by adopting clapboards every other one meter.

2)Gabions adopt assembly mode. The cover plates, the edge plates, end plates and bottom plates are separately assembled into cages wound by spiral steel wire. All the edge wire of the cage adopts thick wire to improve the strength of the gabions.

2*1*1m 80*100mm Aperture Gabion Basket With Rocks 2

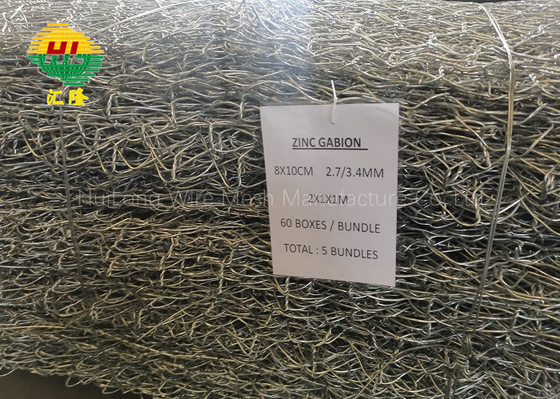

PACKAGING DETAILS

Gabion Box Wire Mesh is usually packaged in bundles. According to the specific sizes, Gabion Box panels are woven and then will be folded into bundles, fixed with a binding belt, and then loaded into the container. The advantage of doing so is to save container space, so that it achieves the maximum utilization rate. When using, the bundles can be folded, with binding wire to assemble it and stones to fill in it, forming a complete Gabion Box. It is strong and durable, and plays an important role in resisting floods and making dams strong.

2*1*1m 80*100mm Aperture Gabion Basket With Rocks 3

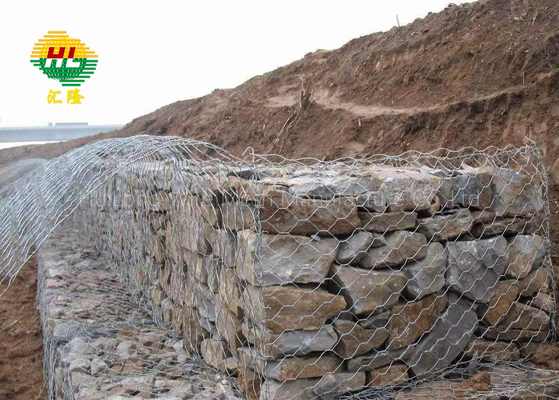

APPLICATIONS

The Gabions must be filled with rock ranging between 100 mm and 250 mm. The range in sizes may allow for a variation of 5% oversize and / or 5% undersize rock, provided it is not placed at the exposed surface. In all cases, oversize rock shall not be larger than 300 mm and the undersize rock shall not be smaller than 100 mm. Rocks shall be hard, angular to round, durable and of such quality that they shall not disintegrate on exposure to water or weathering during the life of the structure. Care should be taken when placing the stone to ensure that the Polymer coating on gabions is not damaged. All visible faces should be carefully hand placed for appearance purposes.

2*1*1m 80*100mm Aperture Gabion Basket With Rocks 4



OUR SERVICES

  •  As a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
  •  We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
  •  Free samples are available. Specifications can be customized as per your request.



HUILONG HISTORY

  • In 1989, HUILONG company was established, the original store was located in Anping Wire Mesh World Supermarket;
  • In 1994, Anping HUILONG wire mesh factory was founded, located in Nanhuan East Road, mainly for the domestic market and produce Welded Wire Mesh Roll, Welded Wire Mesh Panel, and Wire Mesh Fence, etc.;
  • In 1998, ethnic Chinese from Philippines visited us and confirmed the intention of cooperation;
  • In 2004, Philippines invested 1 million funds, HUILONG Wire Mesh became a joint venture company named as "ANPING HUILONG WIRE MESH MANUFACTURE CO., LTD.";
  • In 2008, HUILONG wire mesh international sales department successfully obtained European market, establishing a European trading circle based on France, Belgium and Italy;
  • In 2009, we obtained 50 acres land in Taicheng industry park, and built up a brandnew factory. The workshop occupies 25,000㎡, warehouse 10000㎡, with total 300 sales representatives and workers;
  • In 2011, our company exported to more than one hundred countries, cooperated with more than 200 customers;
  • In May 2012, Shijiazhuang international trade branch office was set up;
  • In 2013, we purchased 300㎡ of office building in Shijiazhuang;
  • In 2015, Anping HUILONG Wire Mesh Manufacture Co., Ltd joined the Anping Wire Mesh Chamber of Commerce, becoming an important part of it;
  • In 2016, we set up a new foreign trade team of 35 people, with an office area of 300 square meters;
  • In 2017-2018, our wire mesh products were well sold and well recognized in the markets of America, Africa and Southeast Asia;
  • In 2019, we registered AIBUER TRADING CO., LTD. and integrated more factory resources, enriched product categories, to provide customers with more valuable services;
  • In 2020, HUILONG invested and established Concertina Razor Wire Factory, which covers an area of 7,000 square meters;
  • In 2021, the factory department has established a domestic trade team of 30 people, with a new office area of 600 square meters.

2*1*1m 80*100mm Aperture Gabion Basket With Rocks 5

2*1*1m 80*100mm Aperture Gabion Basket With Rocks 6

2*1*1m 80*100mm Aperture Gabion Basket With Rocks 7

2*1*1m 80*100mm Aperture Gabion Basket With Rocks 8

2*1*1m 80*100mm Aperture Gabion Basket With Rocks 9
