Product Name: | 2x0.5x0.5m Galvanized Gabion Box Stone Cages Wire Mesh Gabion Basket Weaving Gabion Fence | Material: | Low Carbon Steel Wire, Galvanized Wire, PVC Coated Iron Wire |
---|---|---|---|
Standard: | ASTM A975, EN | Finish: | Galvanized, PVC Coated |
Opening: | 60x80, 80x100, 100x120mm | Mesh Wire Diameter: | 2.0mm, 2.2mm, 2.7mm |
Selvedge Wire Diameter: | 2.7mm, 3.0mm, 3.4mm | Gabion Box Length: | 1m, 1.5m, 2m, 3m, 4m |
Gabion Box Width: | 0.5m, 1m | Gabion Box Height: | 0.5m, 1m |
Packaging: | In Bundles | Application: | For Slope Support, Foundation Pit Support, Mountain Rock Hanging Net With Shotcrete, Slope Planting, Railway And Highway Isolation Block |
High Light: | 60x80mm Wire Mesh Gabion Basket,380N Wire Mesh Gabion Basket |

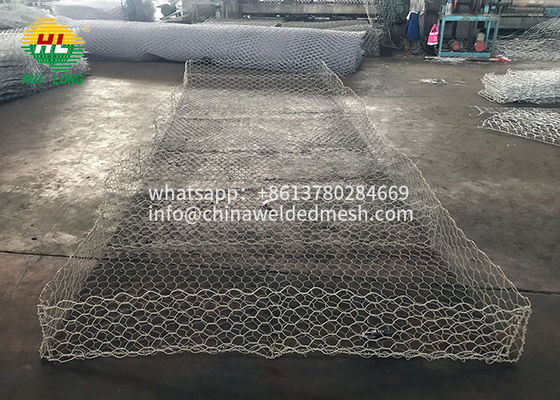

Gabion Box Wire Mesh is named by different shapes of gabion box,gabion basket, gabion wall, gabion mattresses, etc. It's made from hexagonal wire mesh.
Material: low carbon steel wire, stainless steel wire
Surface Treatment: hot dipped galvanized, electro galvanized, PVC/PE coated or galfan coated.
Wire Diameter: 1.5mm - 4mm or as required.
Aperture(mm): 60 × 80, 80 ×100, 80 ×120, 100 ×120, 100 ×150, 120 × 150mm
Gabion size : 1x1x0.5m, 1x1x1m, 2x1x1m, 3x1x1m, 0.2x1mx1m, 0.3x1x2m
Tensile Strength: more than 380N per square meter.
Gabion Style: gabion box, gabion mattress
Application: for construction garden retaining stone gabion wall, for protection and reinforcement.
SPECIFICATIONS
STANDARD MESH AND WIRE SIZES | ||
Standard Mesh dimensions X x Y |
Mesh wire Gl dia (mm) |
Selvedge wire Gl dia (mm) |
60 x 80 | 2.0 | 2.7 |
80 x 100 | 2.2 | 3.0 |
100 x 120 | 2.7 | 3.4 |
Gabion Box Sizes | ||
Length (m) | Width (m) | Height (m) |
1 | 0.5 or 1 | 0.5 or 1 |
1.5 | 1 | 0.5 or 1 |
2 | 0.5 or 1 | 0.5 or 1 |
3 | 1 | 0.5 or 1 |
4 | 1 | 0.5 or 1 |
Mattress Sizes | ||
Length (m) | Width (m) | Height (m) |
3 | 2 | 0.17, 0.23 or 0.30 |
6 | 6 | 0.17, 0.23 or 0.30 |
GABION BOX MATERIALS
1) Galvanized steel wire: Excellent low-carbon steel wire, diameter: 2.0mm-4.0mm, tensile strength: no less than 380Mpa. The surface adopts hot galvanization for protection. The depth of the protective galvanized layer (max. 300g/m2) is decided according to customer demands.
2) Zinc-5% aluminum-mixed mishmash alloy steel wire: (also called galfan steel) a new kind of material appearing recently with corrosion resistance 3 times of traditional pure galvanization; diameter: 2.0mm-4.0mm; tensile strength: no less than 380Mpa.
3) Galvanized steel wire with plastic coating: Excellent low-carbon steel with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it merge into the surrounding environment.
4) Zinc-5% aluminum-mixed mishmash alloy steel wire: alloy steel wire with PVC or PE protective coating on the surface which will be weaved into various gabions. This protective coating will greatly increase the protection in high pollution environment. In addition, the options of different colors enable it to merge into the surrounding environment.
POPULAR SIZES YOU CAN CHOOSE
MASS PRODUCTION PROCEDURE
Weaving of Gabions:
1) Gabions are molded once. Except cover plates, the edge plates, end plates and bottom plates are inseparable. Length/width tolerance (±5%) height tolerance (±5%). The interior part is isolated into independent units by adopting clapboards every other one meter.
2)Gabions adopt assembly mode. The cover plates, the edge plates, end plates and bottom plates are separately assembled into cages wound by spiral steel wire. All the edge wire of the cage adopts thick wire to improve the strength of the gabions.
PACKAGING DETAILS

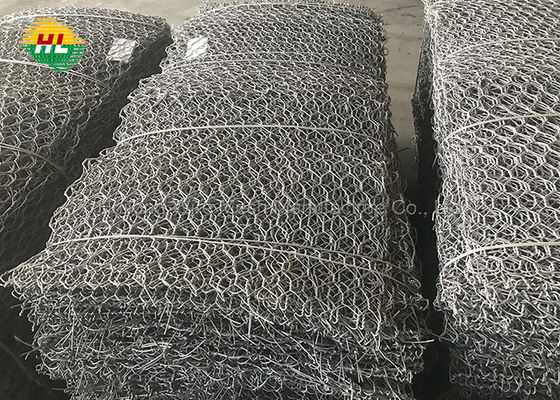

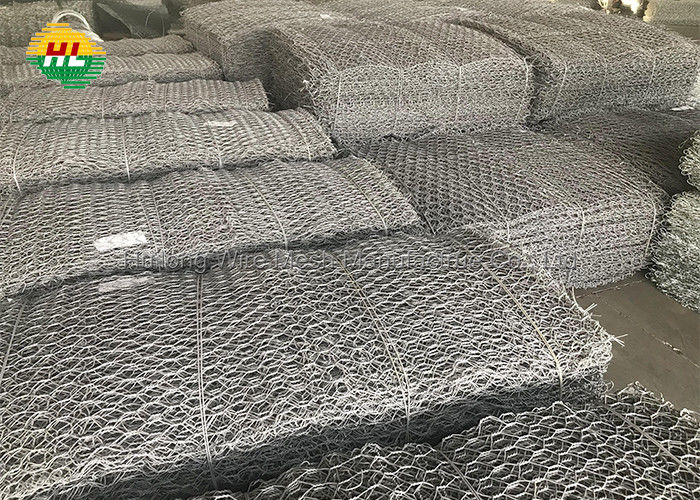

Gabion Box Wire Mesh is usually packaged in bundles. According to the specific sizes, Gabion Box panels are woven and then will be folded into bundles, fixed with a binding belt, and then loaded into the container. The advantage of doing so is to save container space, so that it achieves the maximum utilization rate. When using, the bundles can be folded, with binding wire to assemble it and stones to fill in it, forming a complete Gabion Box. It is strong and durable, and plays an important role in resisting floods and making dams strong.
APPLICATIONS
The Gabions must be filled with rock ranging between 100 mm and 250 mm. The range in sizes may allow for a variation of 5% oversize and / or 5% undersize rock, provided it is not placed at the exposed surface. In all cases, oversize rock shall not be larger than 300 mm and the undersize rock shall not be smaller than 100 mm. Rocks shall be hard, angular to round, durable and of such quality that they shall not disintegrate on exposure to water or weathering during the life of the structure. Care should be taken when placing the stone to ensure that the Polymer coating on gabions is not damaged. All visible faces should be carefully hand placed for appearance purposes.
