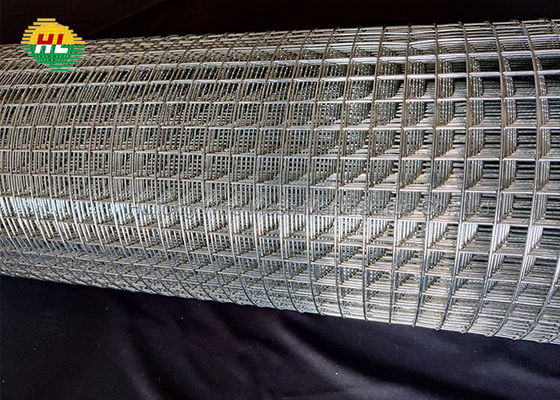

Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter

Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter
Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter

Large Image :  Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: WWMR-HL005
Payment & Shipping Terms:
Minimum Order Quantity: 50 Rolls
Price: USD 7.00--USD 40.00
Packaging Details: Wooden pallet packaging, or Bulk packaging
Delivery Time: 7-25 days as soon as we get customer's L/C or deposit.
Payment Terms: T/T, L/C at sight
Supply Ability: 15 X40' HC, total 10,500 rolls per month
Detailed Product Description
Product Name: Hot-Dipped Galvanized 1/2 Square 36in X 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter Material: Low Carbon Steel Q195/Low Carbon Iron Wire/Galvanized Wire
Welding Type: Galvanized Before Welding, Galvanized After Welding Mesh Size: 1/2'' ( 12.7mm)
Mesh Type: Square Opening Wire Diameter: 19 Gauge (0.912mm)
Roll Length: 100ft (30.48m) Roll Height: 36 Inch (0.91m)
Color: Silver, Galvanized Surface Treatment: Hot Dip Galvanized
Application: Animal Keeping, Garden Plant Support, Tree Guards Soil Sifter

Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter

HUILONG WIRE MESH began to engage in the wire mesh production industry from 1986, so far it has been 35 years. Making wire mesh widely used in all walks of life has always been the power and direction of our development and research.



In order to guide customers to find products that can meet their needs conveniently, we hereby classify the raw materials according to the ability of rust resistance into the following levels, hoping to be of great help for customers in choosing the right products.



PRODUCT GRADES

CARBON STEEL WELDED WIRE MESH MATERIAL RUST RESISTANCE LEVEL PRICE APPLICATION
Q235 Stainless Steel 304/316L I Expensive Mining, chemical industry, food and pharmaceutical industry



Q195

Zn - 95%, Al-5% II Expensive Welded gabion for decorating the gardens with stones inside.



Q195

Hot-dipped galvanized after welding III.A Little high

deep-sea agriculture use as fish cages

Garden fencing, animal cages animal raising .

zinc coating + PVC coating III.B Little high Garden fencing, animal cages, animal raising

Q195

Hot-dipped galvanized before welded 240-270G IV.A Medium Garden fencing, animal cages, animal raising
Hot-dipped galvanized before welded 40-60G IV.B Economic Garden fencing, animal cages, animal raising







Q195

Electro galvanized before welding V.A Economic Construction using (wall mesh, roof mesh, floor mesh, road mesh)
Electro galvanized after welding V.B Economic Construction using (wall mesh, roof mesh, floor mesh, road mesh)



Q195

Re-drawing welded wire mesh VI Cheapest Construction using (wall mesh, roof mesh, floor mesh, road mesh)



Hot-dipped galvanized welded wire mesh is made with low carbon steel wire welded by automatic electric welding machine then put it into hot dip galvanizing treatment. This kind of welded wire mesh has the characteristics of strong rust resistance, strong corrosion resistance, smooth surface and long service life. The mesh surface is smooth and neat, the structure is firm and uniform, and the overall performance is good. Even if it is partially cut or under pressure, it will not loose.



Hot-Dipped Galvanized 1/2 x 1/2 Square Mesh 36in x 100ft 19 Gauge Chicken Wire Net for Garden Plant Supports Tree Guards Soil Sifter, equals 12.7x12.7mm mesh/ 0.912mm diameter / 0.91m height and 30.48m Length, it can provide about 27.7 square meter area.



This kind of welded wire mesh is usually applicated in animal keeping, garden plant support, tree guards soil sifter, such fields.

 garden plant support

 tree guards soil sifter

 underground garden

 house improvement item

 door and window security net

 animal and plant fence

 handicraft production

 aquaculture

 machine protection, and other fields.



PRODUCT FEATURES

1) Galvanized Welded Wire Mesh (GRADE IV V VI) plays a certain role in building thermal insulation and anti cracking engineering. There are two kinds of external wall plastering mesh: hot-dip galvanized welded wire mesh GRADE IV AND GRADE V (long service life, strong anti-corrosion performance); GRADE VI -redrawing welded wire mesh (economic benefits, flat mesh surface, white and shiny). According to the requirements of the region and construction unit, the reasonable material selection is carried out. The specifications of plastering welded wire mesh are: 12.7 × 12.7mm, 19.05x19.05mm, 25.4x25.4mm.



2) Hot Dip Galvanized welded wire mesh roll (GRADE III and GRADE IV) is used as animal breeding cage, the wire diameter is about 1.6-3mm, the mesh surface is smooth, and animals will not be scratched. The amount of zinc on galvanized welded wire mesh is uniform, and it is not easy to rust. It is more convenient to use, and the living environment of animals is more comfortable. Of course, the price is much cheaper than that of stainless steel series.



3) Technical requirements for Welded Wire Mesh Roll

The mesh surface is flat, the mesh is uniform, and the color should be basically the same. Broken wire and broken welding can’t exceed more than 3 places per meter, two times checking for rolls, double times dealing with the sharp ends.



PRODUCT SPECIFICATION

MESH SIZE

(inch)

MESH SIZE

(mm)

WIRE DIAMETER

(mm)

APPLICATION
1/4" x 1/4" 6.4mm x 6.4mm BWG25-BWG22(0.5mm-0.7mm) Small bird, mouse, snakes
3/8" x 3/8" 10.6mm x 10.6mm BWG22-BWG18(0.7mm-1.2mm) Small animals raising purpose
1/2" x 1/2" 12.7mm x 12.7mm BWG23-BWG14(0.6mm-2.0mm) Medium animals or garden using
5/8" x 5/8" 15.8mm x 15.8mm BWG21-BWG14(0.8mm-2.0mm) Medium animals or garden using
3/4" x 3/4" 19.05mm x 19.05mm BWG21-BWG14(0.8mm-2.0mm) Medium animals or garden using
1" x 1/2" 25.4mm x 12.7mm BWG21-BWG13(0.8mm-2.5mm) Medium animals or garden using
1" x 1" 25.4mm x 25.4mm BWG21-BWG13(0.8mm-2.5mm) Medium animals or garden using
1-1/2" x 1-1/2" 38.1mm x 38.1mm BWG19-BWG13(1.0mm-2.5mm) Flowers and vegetables growing
2" x 2" 50.8mm x 50.8mm BWG16-BWG10(1.6mm-3mm) Construction, Garden, Animal raising, mining, industrial using
2”x 3” 50.8mm x 76.2mm BWG16-BWG10(1.6mm-3mm) Construction, Garden, Animal raising, mining, industrial using
2”x 4” 50.8mm x 101.6mm BWG16-BWG10(1.6mm-3mm) Construction, Garden, Animal raising, mining, industrial using
3”x 3” 76.2mm x 76.2mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
4”x 4” 101.6mm x 101.6mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
6”x 6” 152.4mm x 152.4mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
8”x 8” 203.2mm x 203.2mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
10”x 10” 254mm x 254mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
12”x 12” 304.8mm x 304.8mm BWG6-BWG13(2.4mm-5.1mm) Construction, Garden, Animal raising, mining, industrial using
Support customization. Free sample available.



MASS PRODUCTION PROCEDURE

1) Raw Material---Wire

2) Machine Welding

3) Galvanizing (Electro Galvanized or Hot-dipped Galvanized)

4) PVC Coating (Any color can be chosen in RAL COLOR SYSTEM)

5) Packing

6) Container Loading

Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter 0

TECHNICAL INFO

TEST REPORT WIRE TOLERANCE : 土2%

TEST REPORT MESH TOLERANCE: 土5%

TEST REPORT LENGTH TOLERANCE: 土5%

TEST REPORT WIDTH TOLERANCE: 土2%

TEST REPORT WELD TYPE: SPOT WELDING

TEST REPORT WELD STRENGTH: ≥2000N

PRODUCTION STANDARD: AS4687-2007 EN 10244-1-2009 ASTM A 740-1998

Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter 1

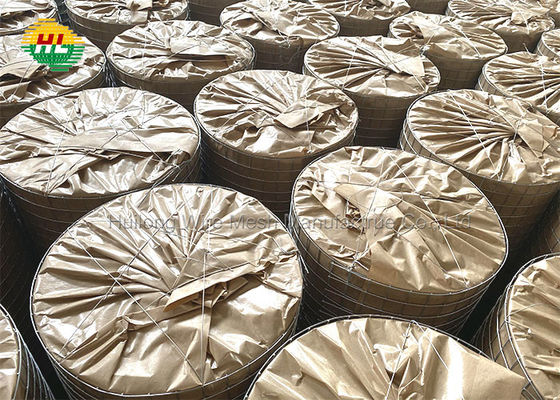

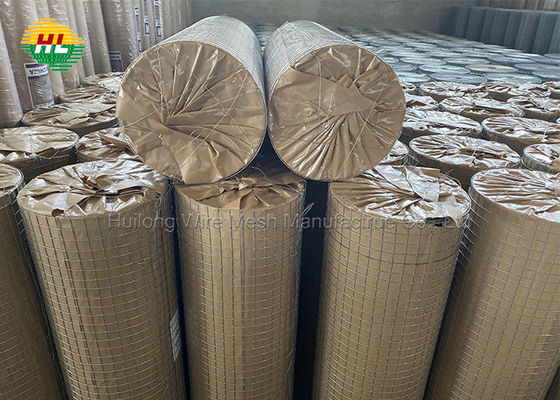

PACKAGING DETAILS

The packing of Welded Wire Mesh Roll is very exquisite, generally speaking, there are eight different packing ways: waterproof paper only, plastic shrink only, plastic film only, waterproof paper then plastic shrink, waterproof paper then plastic film, plastic woven bag, plastic shrink and then carton box, pallet, etc. Other special packing is also OK as your request. The waterproof paper for packing Welded Wire Mesh we use is of high quality and beautiful appearance.



1) Waterproof paper only

2) plastic film only

3) plastic shrink only

4) waterproof paper + plastic film

5) waterproof paper + plastic shrink

6) plastic woven bag

7) plastic shrink + carton box

8) Wooden pallet or iron Pallet: special design to ensure the belts stable









Our packaging will ensure the Welded Wire Mesh Rolls not being damaged during storage and shipment. According to the customer’s instruction, we will also put the label paper into the packaging. There will be a certain product description on the label paper, representing product specifications, so that you can be clear about the product information. If you have other special requirements, for example your own label, we can also customize the packaging according to your requirements. In a word, if you have any requirements, please come forward and we will give you the best solution.



Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter 2



 OTHER APPLICATIONS OF WELDED WIRE MESH ROLL

* Garden Fencing

* Animal and Pet Enclosures

* Tree or Plant Support

* Storage Bins

* Construction and Building Project Applications

* Industrial Applications

* Anti-theft Safety Mesh

Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter 3

Hot-Dipped Galvanized 1/2 Square 36in x 100ft 19gauge Chicken Wire Net Garden Plant Supports Tree Guards Soil Sifter 4



FREQUENTLY ASKED QUESTIONS

Q1: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.









Q2: How to choose from so many kinds of welded wire mesh materials for different applications?

Please refer to the above PRODUCT GRADES CHART. According to the difference of zinc coating and quality level, it can be classified into Grade I II III IV V VI from high to low. You can choose the right product according to your actual use.









Q3: What is the difference between Galvanized Welded Wire Mesh and PVC Coated Welded Wire Mesh?

PVC Coating is a process which is after galvanized welded wire mesh. PVC powder adheres to the surface of galvanized welded wire mesh by high temperature. PVC Coated Welded Wire Mesh is mainly used for garden fence, poultry breeding, supermarket shelf and decoration. It has bright color, elegant appearance and double-layer anti-corrosion and anti-rust functions. Green is the most commonly used color, other colors can also be customized according to your needs.



Q4: What’s the MOQ?

MOQ is 50 rolls for common standardized products; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.



Q5: How to guarantee the quality of products?

We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
