Product Name: | RAL6005 Green PVC Coated Welded Wire Holland Fence Green Welded Wire Garden Fence | Material: | Low Carbon Steel Wire, Galvanized Wire, PVC Coated Iron Wire |
---|---|---|---|
Finish: | PVC Coated | Color: | RAL6005, RAL9005, Any Other Colors In RAL Are Available |
Height: | 1.2m,1.5m,1.8m,2.0m | Mesh Opening: | 50.8x50.8mm, 50.8x101.6mm, 76.2x101.6mm, 101.6x101.6mm, Etc |
Standard: | EN10218-2 | Tensile Strength: | 650N/mm2 |
Applications: | For Farm, Garden Fencing, Airport Fence, Road Fence, Etc. | ||
Highlight: | RAL6005 Welded Wire Mesh Rolls,Green PVC Welded Wire Mesh Rolls,PVC Coated Holland Wire Fence |

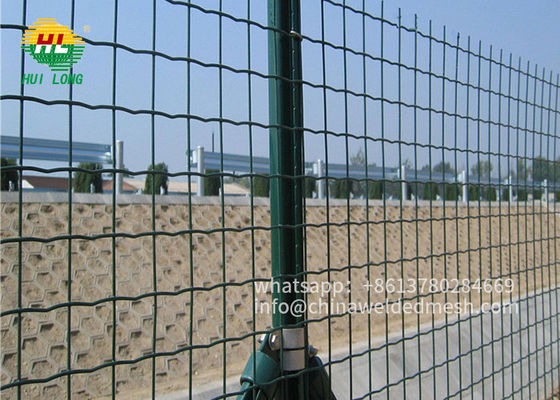

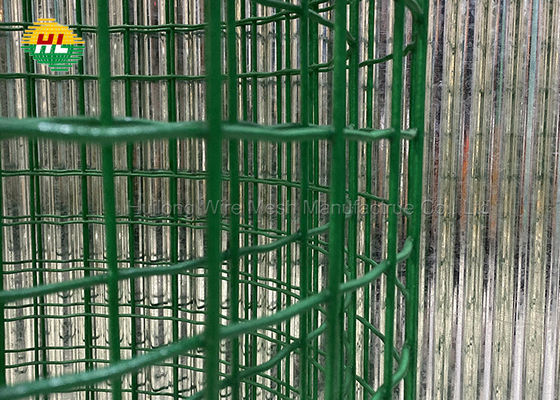

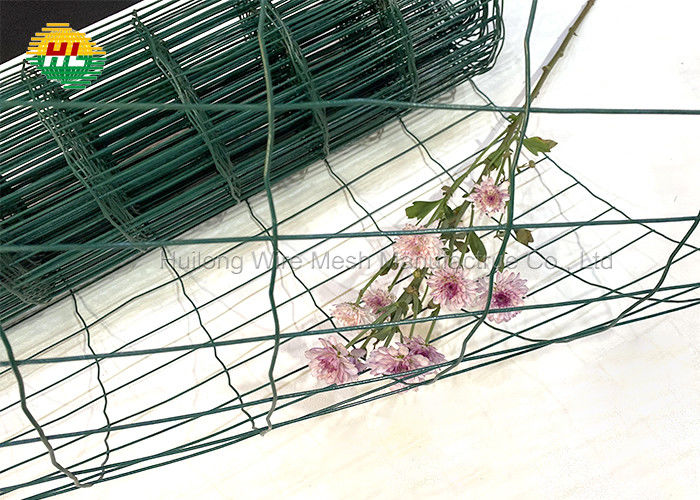

Euro Fence is also named as Holland Wire Mesh. Firstly, it is welded by high quality galvanized wire into panels, and then with PVC coating, the panel will have double anti-rust ability. Actually, Euro Fence is a kind of Welded Wire Mesh Fence, with square or rectangle meshes. This wire fence is welded from galvanized wire with low carbon contents and then PVC coated after welding, which forms a double anti-rust protection. In the middle of the horizontal wires, there’s a small shrinkage, which adds its tensile strength and allows water easily drain down. For strengthening purposes, we have extra horizontal wires on the top and bottom, with the spacing distance 25.4mm. Euro Fence is widely used as Garden fence, Railway fence, and Industrial fence. There are two popular colors, Green RAL6005 and Black RAL9005.
Anping HUILONG began to engage in the wire mesh production industry from 1986, so far it has been 35 years. Making wire mesh widely used in all walks of life has always been the power and direction of our development and research.
SPECIFICATIONS
Finish
|
Mesh Opening (mm) |
Wire Diameter (mm) |
Height (cm) |
Length (m) |
PVC Coated |
50.8 x 50.8 | 2.0/2.5mm | 102,122,152,183,203 | 25 |
50.8 x 101.6 | 1.7/2.2mm | 41,61,81,102,122,152,183,203 | 5,10,25 | |
50.8 x 101.6 | 2.0/2.5mm | 61,81,102,122,152,183,203 | 10,25 | |
63.5 x 101.6 | 1.7/2.2mm | 61,81,102,122,152,183,203 | 10,25 | |
76.2 x 101.6 | 1.6/2.1mm | 61,81,102,122,152,183,203 | 10,25 | |
101.6 x 101.6 | 1.6/2.1mm | 102,122,152 | 20 | |
Galvanized | 76.2 x 101.6 | 1.6mm | 61,91,122 | 20 |
EURO FENCE FEATURES
* The good PVC powder can make the fence live a longer time in the outdoor environment.
* Ensure the the intersection welding joins is strong enough.
* The distance between the horizontal wires is 50.8mm(2'') or 101.6mm(4'')
* The distance between the vertical wires is 50.8mm(2'') or 63.5mm, 76.2mm(3''), 101.6mm(4'') for economic type.
* Core wire 2.0mm/2.5mm ourside or 1.7mm/2.2mm economic type tolerances according to EN10218-2.
* The tensile strength of the vertical wires is at least 650N/mm2.
* There is a V-Shaped ripples in the middle of the Horionzental wire, which enhances the elasticity of the euro fence, in addition, it is also better for the water to drop down.
* The core wire is galvanized wire, outer with pvc coated, the double process can provide better anti-rust in humid environment.
* Widely used in residential ,commercial and industrial areas.
* RAL 6005 Green and RAL 9005 Black are the most popular colors, and any other colors in RAL Color System are also available as per your request.
* Bright color, harmoniously matched with the surrounding environment.
* Customization is available.
APPLICATIONS
Mainly used for safety protection of airports, ports, and docks; isolation and protection of parks, lawns, zoos, ponds, lakes, roads, and residential areas in municipal construction; Protection and decoration of hotels, hotels, supermarkets, and entertainment venues.
