Product Details:
Payment & Shipping Terms:
|
Product Name: | 36 Inch X 25 Foot-1 Inch X 1 Inch 16GA Galvanized Welded Wire Mesh Roll For Garden Economy Fence | Material: | Low Carbon Steel Q195/Low Carbon Iron Wire/Galvanized Wire |
---|---|---|---|
Welding Type: | Galvanized Before Welding, Galvanized After Welding | Mesh Size: | 1Inch X 1 Inch |
Mesh Type: | Square Mesh Opening | Wire Diameter: | 16 Gauge |
Roll Length: | 25 Foot | Roll Height: | 36 Inch |
Color: | Silver, Galvanized | Surface Treatment: | Hot Dip Galvanized, Electro Galvanized |
Application: | For Garden Economy Fence |
HUILONG began to engage in the wire mesh production industry from 1986, so far it has been 35 years. Making wire mesh widely used in all walks of life has always been the power and direction of our development and research.
In order to guide customers to find products that can meet their needs conveniently, we hereby classify the raw materials according to the ability of rust resistance into the following levels, hoping to be of great help for customers in choosing the right products.
PRODUCT GRADES
CARBON STEEL | WELDED WIRE MESH MATERIAL | RUST RESISTANCE LEVEL | PRICE | APPLICATION |
Q235 | Stainless Steel 304/316L | I | Expensive | Mining, chemical industry, food and pharmaceutical industry |
Q195 |
Zn - 95%, Al-5% | II | Expensive | Welded gabion for decorating the gardens with stones inside. |
Q195 |
Hot-dipped galvanized after welding | III.A | Little high |
deep-sea agriculture use as fish cages Garden fencing, animal cages animal raising . |
zinc coating + PVC coating | III.B | Little high | Garden fencing, animal cages, animal raising | |
Q195 |
Hot-dipped galvanized before welded 240-270G | IV.A | Medium | Garden fencing, animal cages, animal raising |
Hot-dipped galvanized before welded 40-60G | IV.B | Economic | Garden fencing, animal cages, animal raising | |
Q195 |
Electro galvanized before welding | V.A | Economic | Construction using (wall mesh, roof mesh, floor mesh, road mesh) |
Electro galvanized after welding | V.B | Economic | Construction using (wall mesh, roof mesh, floor mesh, road mesh) | |
Q195 |
Re-drawing welded wire mesh | VI | Cheapest | Construction using (wall mesh, roof mesh, floor mesh, road mesh) |

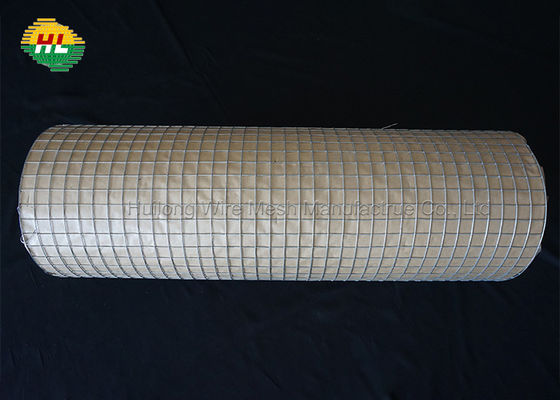

36 Inch x 25 Foot-1 Inch x 1 Inch 16GA Galvanized Welded Wire Mesh Roll for Garden Economy Fence
Other Available Sizes For You To Choose
1’’ x 1’’ 16 Gauge Welded Wire Mesh Roll | ||||||
Mesh Size | 1’’ x 1’’ | 1’’ x 1’’ | 1’’ x 1’’ | 1’’ x 1’’ | 1’’ x 1’’ | 1’’ x 1’’ |
Wire Diameter | 16 Gauge | 16 Gauge | 16 Gauge | 16 Gauge | 16 Gauge | 16 Gauge |
Roll Length | 25 Foot | 50 Foot | 25 Foot | 50 Foot | 25 Foot | 50 Foot |
Roll Width | 24 Inch | 24 Inch | 36 Inch | 36 Inch | 48 Inch | 48 Inch |
Hot Dip Galvanized | √ | √ | √ | √ | √ | √ |
Electro Galvanized | √ | √ | √ | √ | √ | √ |
PRODUCT FEATURES
1) Galvanized Welded Wire Mesh (GRADE IV V VI) plays a certain role in building thermal insulation and anti cracking engineering. There are two kinds of external wall plastering mesh: hot-dip galvanized welded wire mesh GRADE IV AND GRADE V (long service life, strong anti-corrosion performance); GRADE VI -redrawing welded wire mesh (economic benefits, flat mesh surface, white and shiny). According to the requirements of the region and construction unit, the reasonable material selection is carried out. The specifications of plastering welded wire mesh are: 12.7 × 12.7mm, 19.05x19.05mm, 25.4x25.4mm.
2) Hot Dip Galvanized welded wire mesh roll (GRADE III and GRADE IV) is used as animal breeding cage, the wire diameter is about 1.6-3mm, the mesh surface is smooth, and animals will not be scratched. The amount of zinc on galvanized welded wire mesh is uniform, and it is not easy to rust. It is more convenient to use, and the living environment of animals is more comfortable. Of course, the price is much cheaper than that of stainless steel series.
3) Technical requirements for Welded Wire Mesh Roll
The mesh surface is flat, the mesh is uniform, and the color should be basically the same. Broken wire and broken welding can’t exceed more than 3 places per meter, two times checking for rolls, double times dealing with the sharp ends.
PRODUCT SPECIFICATION
MESH SIZE (inch) |
MESH SIZE (mm) |
WIRE DIAMETER (mm) |
APPLICATION |
1/4" x 1/4" | 6.4mm x 6.4mm | BWG25-BWG22(0.5mm-0.7mm) | Small bird, mouse, snakes |
3/8" x 3/8" | 10.6mm x 10.6mm | BWG22-BWG18(0.7mm-1.2mm) | Small animals raising purpose |
1/2" x 1/2" | 12.7mm x 12.7mm | BWG23-BWG14(0.6mm-2.0mm) | Medium animals or garden using |
5/8" x 5/8" | 15.8mm x 15.8mm | BWG21-BWG14(0.8mm-2.0mm) | Medium animals or garden using |
3/4" x 3/4" | 19.05mm x 19.05mm | BWG21-BWG14(0.8mm-2.0mm) | Medium animals or garden using |
1" x 1/2" | 25.4mm x 12.7mm | BWG21-BWG13(0.8mm-2.5mm) | Medium animals or garden using |
1" x 1" | 25.4mm x 25.4mm | BWG21-BWG13(0.8mm-2.5mm) | Medium animals or garden using |
1-1/2" x 1-1/2" | 38.1mm x 38.1mm | BWG19-BWG13(1.0mm-2.5mm) | Flowers and vegetables growing |
2" x 2" | 50.8mm x 50.8mm | BWG16-BWG10(1.6mm-3mm) | Construction, Garden, Animal raising, mining, industrial using |
2”x 3” | 50.8mm x 76.2mm | BWG16-BWG10(1.6mm-3mm) | Construction, Garden, Animal raising, mining, industrial using |
2”x 4” | 50.8mm x 101.6mm | BWG16-BWG10(1.6mm-3mm) | Construction, Garden, Animal raising, mining, industrial using |
3”x 3” | 76.2mm x 76.2mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
4”x 4” | 101.6mm x 101.6mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
6”x 6” | 152.4mm x 152.4mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
8”x 8” | 203.2mm x 203.2mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
10”x 10” | 254mm x 254mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
12”x 12” | 304.8mm x 304.8mm | BWG6-BWG13(2.4mm-5.1mm) | Construction, Garden, Animal raising, mining, industrial using |
Support customization. Free sample available. |
MASS PRODUCTION PROCEDURE
1) Raw Material
2) Machine Welding
3) Galvanizing (Electro Galvanized or Hot-dipped Galvanized)
4) PVC Coating
5) Packing
6) Container Loading
TECHNICAL INFO
TEST REPORT WIRE TOLERANCE : 土2%
TEST REPORT MESH TOLERANCE: 土5%
TEST REPORT LENGTH TOLERANCE: 土5%
TEST REPORT WIDTH TOLERANCE: 土2%
TEST REPORT WELD TYPE: SPOT WELDING
TEST REPORT WELD STRENGTH: ≥2000N
PRODUCTION STANDARD: AS4687-2007 EN 10244-1-2009 ASTM A 740-1998
PACKAGING DETAILS
The packing of Welded Wire Mesh Roll is very exquisite, generally speaking, there are eight different packing ways: waterproof paper only, plastic shrink only, plastic film only, waterproof paper then plastic shrink, waterproof paper then plastic film, plastic woven bag, plastic shrink and then carton box, pallet, etc. Other special packing is also OK as your request. The waterproof paper for packing Welded Wire Mesh we use is of high quality and beautiful appearance.
1) Waterproof paper only
2) plastic film only
3) plastic shrink only
4) waterproof paper + plastic film
5) waterproof paper + plastic shrink
6) plastic woven bag
7) plastic shrink + carton box
8) Wooden pallet or iron Pallet: special design to ensure the belts stable
Our packaging will ensure the Welded Wire Mesh Rolls not being damaged during storage and shipment. According to the customer’s instruction, we will also put the label paper into the packaging. There will be a certain product description on the label paper, representing product specifications, so that you can be clear about the product information. If you have other special requirements, for example your own label, we can also customize the packaging according to your requirements. In a word, if you have any requirements, please come forward and we will give you the best solution.
OTHER APPLICATIONS OF WELDED WIRE MESH ROLL
* Garden Fencing
* Animal and Pet Enclosures
* Tree or Plant Support
* Storage Bins
* Construction and Building Project Applications
* Industrial Applications
* Anti-theft Safety Mesh
FREQUENTLY ASKED QUESTIONS
Q1: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
Q2: How to choose from so many kinds of welded wire mesh materials for different applications?
Please refer to the above PRODUCT GRADES CHART. According to the difference of zinc coating and quality level, it can be classified into Grade I II III IV V VI from high to low. You can choose the right product according to your actual use.
Q3: What is the difference between Galvanized Welded Wire Mesh and PVC Coated Welded Wire Mesh?
PVC Coating is a process which is after galvanized welded wire mesh. PVC powder adheres to the surface of galvanized welded wire mesh by high temperature. PVC Coated Welded Wire Mesh is mainly used for garden fence, poultry breeding, supermarket shelf and decoration. It has bright color, elegant appearance and double-layer anti-corrosion and anti-rust functions. Green is the most commonly used color, other colors can also be customized according to your needs.
Q4: What’s the MOQ?
MOQ is 50 rolls for common standardized products; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
