Razor Concertina Barbed Wire For Larger Areas Of Protection
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Stainless Steel, Galvanized. | Wire Diameter: | 2.0,2.5,2.8mm |
|---|---|---|---|
| Coil Diamter: | 300,500,700,900mm | Clip Per Spirl: | 3,5,0 |
| Tensile: | 1400-1500MPA | Length: | 8,10m As Your Request |
| Standard: | ASTM, EN | ||
| Highlight: | Larger Areas Razor Barbed Wire,Razor concertina barbed wire,Larger Areas Protection Razor Barbed Wire |
||

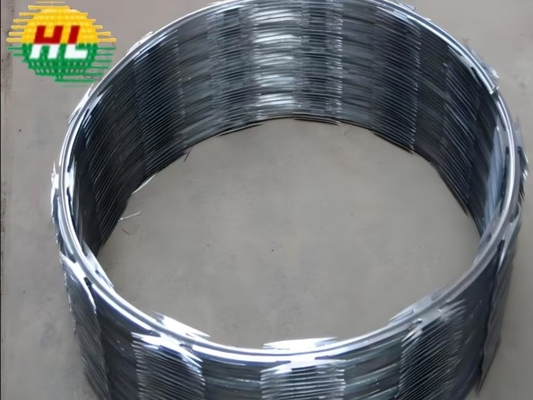

Razor Concertina Barbed Wire For Larger Areas Of Protection
Product Specifications
| Attribute | Value |
|---|---|
| Material | Stainless Steel, Galvanized |
| Wire Diameter | 2.0, 2.5, 2.8mm |
| Coil Diameter | 300, 500, 700, 900mm |
| Clip Per Spiral | 3, 5, 0 |
| Tensile | 1400-1500MPA |
| Length | 8, 10m (Customizable) |
| Standard | ASTM, EN |
Product Description
Razor barbed wire is a mesh structure of multiple razor wires woven or welded together at regular intervals to form a denser and stronger protective layer. This design provides comprehensive protective coverage while maintaining the deterrent effect of sharp blades, effectively blocking intrusion attempts from any direction. The product can be customized with different mesh sizes and blade densities to meet various security level requirements.
Material Supply System
- Blade: Galvanized Steel or Stainless Steel (0.5mm thickness), Barb Length: 12-65mm, Barb Spacing: 26-100mm
- Core Wire: Electro Galvanized Wire, Hot-dipped Galvanized Wire, or Stainless Steel Wire (2.5mm diameter)
- PVC Coating: Available in standard green or custom RAL colors for enhanced corrosion resistance and aesthetics
Common Blade Types
- BTO (Barbed Tape Obstacle): BTO-10, BTO-18, BTO-16, BTO-22, BTO-30
- CBT (Concertina Barbed Tape): CBT-60, CBT-65
Our blades feature a high tensile reinforcing band for maximum strength, substantially more difficult to cut or trample. The heavy-duty steel clips can withstand approximately 200lbs/100kgs of force, making them resistant to manual or standard tool separation.
Mass Production Procedure
- Raw Material Preparation: Galvanized Steel or Stainless Steel Plate + Wire
- Machine Punching: Steel sheet punched into sharp barbs
- Machine Forming: Core wire and razor plate assembly
- Clip Installation: C-ring clips installed with clip gun for firm attachment
- PVC Coating: Available in RAL 6005 Green or other RAL colors
- Packaging: Waterproof paper + woven bag, corrugated carton, or pallet options
Packaging System
Our specialized packaging ensures safe handling of these sharp products:
- Coil packaging with waterproof paper and woven bags
- Compressed packaging (10-20 coils with steel belts) for efficient shipping
- Small corrugated boxes for retail distribution
- Custom corrugated cartons (3-5 coils per box)
- Pallet packaging with plastic film and packing belts
Quality Control System
We maintain strict quality control from raw materials to final product, ensuring compliance with international standards. Our quality assurance department implements inspections at every production stage, supported by a comprehensive after-sales service system.
International Standards
- ASTM F1910-98(2018) - Standard Specification for Long Barbed Tape Obstacles
- ASTM F1379-95(2018) - Standard Terminology Relating to Barbed Tape
- ASTM F1911-05(2019) - Standard Practice for Installation of Barbed Tape

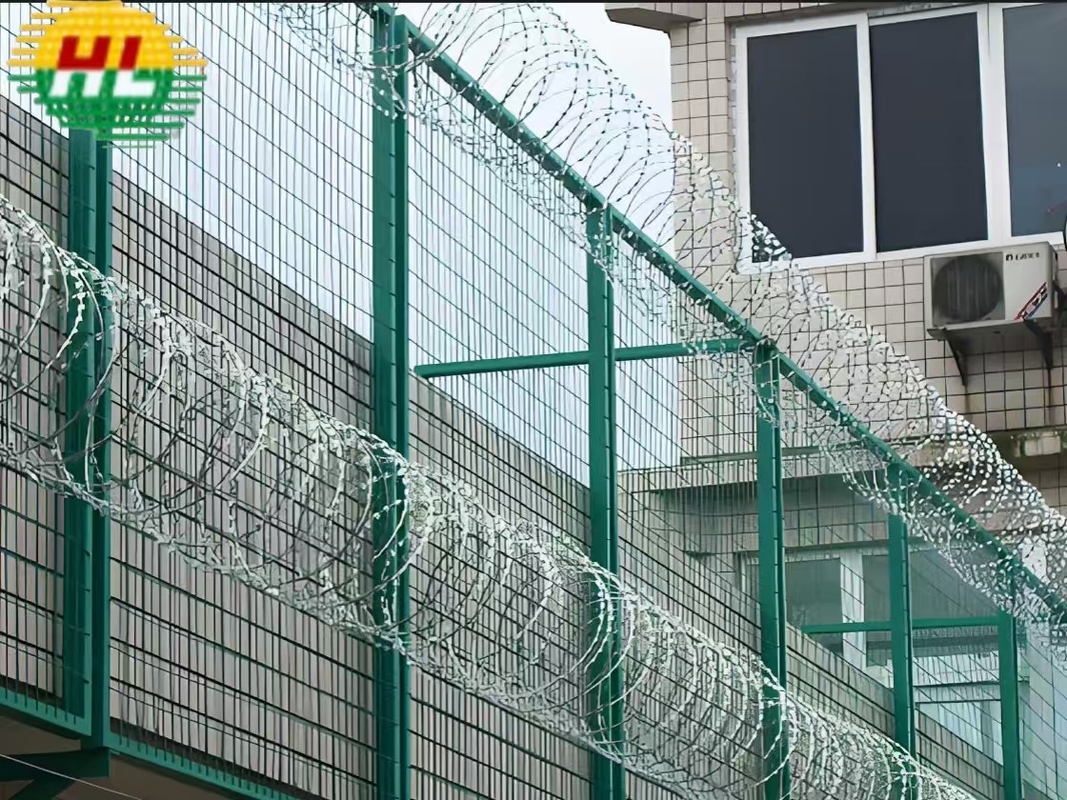

Product Applications
Our razor barbed wire is widely used in high-security facilities worldwide, including:
- Industrial and mining enterprises
- Residential complexes and government buildings
- Border posts and military installations
- Prisons and detention facilities
Deep Processing Options
We offer specialized processing to meet diverse security needs:
- Welded Razor Wires: Diamond or rectangular mesh patterns for enhanced security
- Double Concertina Razor Wire: Combined coils for highest security grade
- Mobile Deployment System: Rapid deployment trailers for temporary barriers
- Flat Loop Concertina Wire: Ideal for fence topping without overhang
Frequently Asked Questions
Q1: Are you a factory or trading company?
We are an 18-year manufacturer with our own factory and registered trading company, combining production control with professional international trade services.
Q2: What's the MOQ?
Standard products: 50 coils minimum. Custom products: negotiable. No MOQ for samples.
Q3: How do you guarantee product quality?
Our Quality Assurance Department implements strict inspections at all production stages. We provide 24-hour response and 72-hour resolution for any issues.
Company History
1989: Company established in Anping Wire Mesh World Supermarket
1994: Founded manufacturing facility for domestic market products
2004: Became joint venture with Philippines investment
2008: Expanded to European markets
2009: Built new 50-acre factory complex
2011: Exported to over 100 countries
2020: Established dedicated Razor Wire Factory (7,000㎡)
