Various Blade Types BTO-10 BTO-18 BTO-16 BTO-22 BTO-30 CBT-60 CBT-65 Concertina Barbed Wire in Ukraine Safety
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Ukraine Military Use Galvanized 1000mm BTO16 BTO18 Galvanized Razor Barbed Wire Fence | Material: | Stainless Steel,galvanized. |
|---|---|---|---|
| Wire Diameter: | 2.0,2.5,2.8mm | Coil Diamter: | 300mm 450mm 500mm 700mm 900mm 1000mm Customized |
| Clip Per Spirl: | 0 3 5 | Length: | 8,10m As Your Request |
| Tensile: | 1400-1500MPA | Standard: | ASTM A975, EN |
| Highlight: | Concertina Barbed Wire BTO-18,Concertina Barbed Wire BTO-16,Concertina Barbed Wire BTO-10 |
||
High Security Ukraine Market Military BTO16 BTO18 Concertina Barbed Wire Fence
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Ukraine Military Use Galvanized 1000mm BTO16 BTO18 Galvanized Razor Barbed Wire Fence |
| Material | Stainless steel, galvanized |
| Wire diameter | 2.0, 2.5, 2.8mm |
| Coil diameter | 300mm, 450mm, 500mm, 700mm, 900mm, 1000mm (Customized available) |
| Clip per spiral | 0, 3, 5 |
| Length | 8m, 10m (Custom lengths available) |
| Tensile | 1400-1500MPA |
| Standard | ASTM A975, EN |
Product Description
Blade barbed wire is a high-security protection product that fixes sharp blades on high-strength steel wire or rope through a specialized process. These blades are manufactured from premium stainless steel or alloy steel, offering exceptional hardness and corrosion resistance to maintain sharpness in harsh environments. The evenly distributed blades create an impenetrable barrier that effectively deters trespassing attempts.
Material Supply System
- Blade: Galvanized Steel or Stainless Steel (0.5mm thickness), Barb Length: 12-65mm, Barb Spacing: 26-100mm
- Core Wire: Electro Galvanized Wire, Hot-dipped Galvanized Wire, or Stainless Steel Wire (2.5mm diameter)
- PVC Coating: Available in standard green or custom RAL colors for enhanced corrosion resistance and aesthetics
Common Blade Types
- BTO (Barbed Tape Obstacle): BTO-10, BTO-16, BTO-18, BTO-22, BTO-30
- CBT (Concertina Barbed Tape): CBT-60, CBT-65
Our blades feature a high-tensile reinforcing band for maximum strength, resistant to cutting or trampling. The heavy-duty steel clips withstand approximately 200lbs/100kgs of force, requiring specialized tools for removal.
Technical Specifications
| Coil diameter | Loops | Clips | Length | Note |
|---|---|---|---|---|
| 300mm | 33 | - | 8-10m | Single coil |
| 450mm | 56 | 3 | 8-10m | Cross type |
| 500mm | 56 | 3 | 9-10m | Cross type |
| 600mm | 56 | 3 | 10-11m | Cross type |
| 700mm | 56 | 5 | 10-12m | Cross type |
| 900mm | 56 | 5 | 12-14m | Cross type |
Manufacturing Process
- Raw Material Preparation: Galvanized/Stainless Steel Plate + Wire
- Machine Punching: Steel sheet punched into sharp barbs
- Machine Forming: Core wire and razor plate assembly

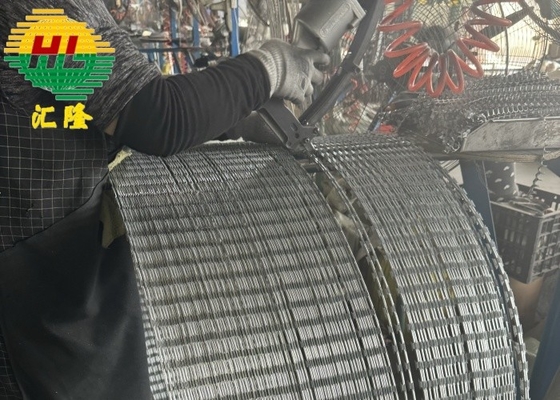

- Clip Installation: C-ring clips secured with pneumatic clip guns
- PVC Coating: Available in RAL 6005 Green or custom colors
- Packaging: Waterproof paper + woven bag, corrugated carton, or pallet options
Packaging Options
- Standard Coil: Waterproof paper + woven bag packaging
- Compressed Package: 10-20 coils compressed with steel belts
- Retail Packaging: Small corrugated boxes for individual coils
- Bulk Cartons: 3-5 coils per custom corrugated carton
- Palletized: Compressed wire with plastic film and packing belts
Production Capacity
Our 5,000 square meter production facility includes:
- 5 punching machines
- 20 wire wrapping machines
- 50 automatic pneumatic clip guns
- 6 manual workbenches
- 68 skilled workers including dedicated quality inspectors
We use pneumatic clip guns operating at 90-120psi (6-8bars) for faster, stronger clip installation.
Quality Assurance
Our comprehensive quality control system covers all stages from raw materials to final shipment. We adhere to international standards including:
- ASTM F1910-98(2018): Standard Specification for Long Barbed Tape Obstacles
- ASTM F1379-95(2018): Standard Terminology Relating to Barbed Tape
- ASTM F1911-05(2019): Standard Practice for Installation of Barbed Tape
Applications
Our concertina barbed wire is widely used for high-security applications including:
- Military installations and border security
- Prisons and detention facilities
- Government buildings
- Industrial complexes
- Residential security
Enhanced Security Solutions
- Welded Razor Wire: Diamond or rectangular mesh patterns for added security
- Double Concertina: Combined coils for highest security grade
- Mobile Deployment: Rapid barrier systems for temporary security
- Flat Loop: Low-profile installation for existing fences
Frequently Asked Questions
Are you a factory or trading company?
We operate both as an 18-year manufacturing facility and a registered trading company, combining production control with professional international trade services.
What's the MOQ?
Minimum order quantity is 50 coils for standard products. Custom products require negotiation. Sample orders have no MOQ.
How do you guarantee product quality?
Our Quality Assurance Department implements strict inspections at all production stages. We provide 24-hour response and 72-hour resolution for any issues.
Company History
1989: Company established in Anping Wire Mesh World Supermarket
1994: Founded manufacturing facility for domestic market products
2004: Became joint venture with international investment
2008: Expanded to European markets
2009: Built new 50-acre production facility
2011: Exported to over 100 countries
2020: Established dedicated razor wire factory (7,000㎡)
2021: Expanded domestic trade team and facilities
