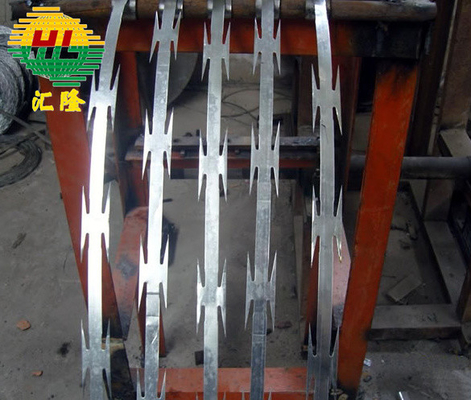

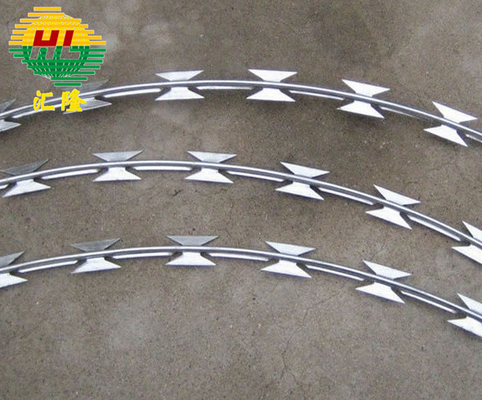

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China
Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China
video play

Large Image :  Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: CRWF-HLLO240401
Payment & Shipping Terms:
Minimum Order Quantity: 50 COILS
Price: USD5.0-USD15.0/KG
Packaging Details: IN COILS WITH WATERPROOF PAPER+WOVEN BAG; CARTON BOX; PALLET, ETC.
Delivery Time: 7 DAYS AS SOON AS GET CUSTOMERS L/C OR DEPOSIT.
Payment Terms: L/C, T/T AT SIGHT
Supply Ability: 40,000 KG PER DAY
Detailed Product Description
Product Name: 0.45mm Plate Hotdip Galvanized Border Concertina Razor Wire Material: Galvanized Steel, Stainless Steel
Wire Diameter: 2.0, 2.5, 2.8mm Coil Diamter: 1000mm
Clips Per Spirl: 7 Length: 8,10m As Your Request
Tensile: 1400-1500MPA International Standard: ASTM
Packaging: In Coils, In Carton, On Pallet, Etc. Application: For High Security, Private Garden, Barrier Fence, Etc.
High Light:

Bto-22 Concertina Razor Wire

,

China Concertina Razor Wire

,

Hot DIP Concertina Razor Wire

Hot DIP Concertina Bto-22 Type Razor Barbed Wire

Hot DIP Concertina Bto-22 Type Razor Barbed Wire

Concertina razor wire is a formidable security barrier designed to deter intruders and unauthorized access. It consists of razor-sharp blades wrapped around a high-tensile wire in a concertina or spiral configuration, creating a formidable barrier that is difficult to breach. The sharp blades, typically made of galvanized steel or stainless steel, are arranged in a manner that enhances their effectiveness in preventing unauthorized entry.

The distinctive appearance of concertina razor wire serves as a visual deterrent, signaling the presence of a high-security perimeter. It is commonly used in military installations, prisons, border security, and other critical infrastructure facilities where security is paramount.

Concertina razor wire is a formidable security barrier designed to deter intruders and unauthorized access. It consists of razor-sharp blades wrapped around a high-tensile wire in a concertina or spiral configuration, creating a formidable barrier that is difficult to breach. The sharp blades, typically made of galvanized steel or stainless steel, are arranged in a manner that enhances their effectiveness in preventing unauthorized entry.

The distinctive appearance of concertina razor wire serves as a visual deterrent, signaling the presence of a high-security perimeter. It is commonly used in military installations, prisons, border security, and other critical infrastructure facilities where security is paramount.

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 0



RAW MATERIALS

1) Blade

Material: Galvanized Steel or Stainless Steel

Thickness: 0.5mm

Barb Length: 12-65mm

Barb Spacing: 26-100mm



2) Core Wire

Material: Electro Galvanized Wire, Hot-dipped Galvanized Wire, Stainless Steel Wire

Wire Diameter: 2.5mm



If you need,razor wire product can also be coated by PVC, so that it has higher corrosion resistance and is more beautiful. Green color is commonly used, and other colors can be customized according to customers’ requirements.

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 1



COMMON BLADE TYPES

1) BTO (Barbed Tape Obstacle):

    BTO-10, BTO-22, BTO-30;

2) CBT (Concertina Barbed Tape):

    CBT-60, CBT-65.



Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 2

SPECIFICATIONS



Razor Blade Type and Specification
Reference Number

Blade Style



Thickness

(mm)

Wire Dia.

(mm)

Barb Length

(mm)

Barb Width

(mm)

Barb Spacing

(mm)

BTO-10 Please see the above pictures 0.5±0.05 2.5±0.1 10±1 15±1 25±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 35±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 50±1
CBT-60 0.5±0.05 2.5±0.1 60±2 31±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2





Outside Diameter No. of Loops

Standard Length

per Coil

Type Notes
300mm 33 4-6m CBT-60, CBT-65 Single Coil
450mm 33 7-8 m CBT-60, CBT-65 Single Coil
500mm 56 12-13m CBT-60, CBT-65 Single Coil
700mm 56 13-14m CBT-60, CBT-65 Single Coil
960mm 56 14-15m CBT-60, CBT-65 Single Coil
450mm 56 8-9m (3 clips) BTO-10, BTO-22, BTO-30 Cross Type
500mm 56 9-10m (3 clips) BTO-10, BTO-22, BTO-30 Cross Type
600mm 56 10-11m (3 clips) BTO-10, BTO-22, BTO-30 Cross Type
700mm 56 10-12m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type
800mm 56 11-13m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type
900mm 56 12-14m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type
980mm 56 14-16m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type

MASS PRODUCTION PROCEDURE

1) Raw Material —— Galvanized Steel or Stainless Steel Plate + Galvanized Steel or Stainless Steel Wire.

2) Machine Punching ——  The galvanized sheet or stainless steel sheet is formed into the shape of a blade during the machine stamping process

3) Machine Forming —— Combine the coil wire and the blade plate.

4) Clip Installation—— We use clip gun to install C-ring clip, to make it firm

5) PVC Coating—— RAL 6005 Green color or any other colors in RAL Color System are all available.

6) Packaging —— Packaged with waterproof paper + woven bag, corrugated carton, or pallet. Special requirements can be customized.

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 3



Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 4



PACKAGING SYSTEM

Because Concertina Barbed Wire has sharp blades, it is necessary to pay more attention to the way of packaging.

1) Generally, Razor Barbed Wire will be made into a coil, and then we use waterproof paper and woven bag for packaging. These coils can be directly loaded into container. Or, 10-20 coils will be compressed together with steel belts to make it stronger. In contrast, the loading quantity of compressed package is much more than what is in loose package.

2) Small Corrugated Box packaging, Razor Barbed Wire coils can be put into small pieces of paper boxes separately, this method is mainly used for supplying supermarkets or stores which directly facing the end users.

3) Corrugated Carton packaging, corrugated cartons can be customized according to customer requirements, and then 3-5 coils of razor wire are stacked into one carton, separated by cardboard in the middle.

4) Pallet packaging, compressed Razor Barbed Wire can also be packaged with plastic film, packing belt and pallet.

5) In addition, according to customer needs, we can also carry out exclusive customized services.



Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 5



WAREHOUSE STORAGE SYSTEM

The production workshop of Concertina Barbed Wire occupies an area of 5,000 square meters, with 5 punching machines, 20 wire wrapping machines, 50 automatic pneumatic clip guns for clip installation, 6 workbenches for manual buckle. Our daily output is about 80 tons, and we have a large stock, and we can deliver the products with conventional specifications to the port or the designated warehouse immediately after the payment is completed.

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 6

International Standard for Razor Barbed Wire

ASTM F1910-98(2018)---Standard Specification for Long Barbed Tape Obstacles

ASTM F1379-95(2018)---Standard Terminology Relating to Barbed Tape

ASTM F1911-05(2019)---Standard Practice for Installation of Barbed Tape



QUALITY INSPECTION BEFORE LOADING

Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.



AFTER-SALES SERVICE SYSTEM

1) After the order is confirmed, we will update the production schedule of the goods in time.

2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.

3) If any quality problem is found before delivery, we will deal with it in time.

4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.



FREQUENTLY ASKED QUESTIONS

Q1: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.



Q2: What’s the MOQ?

MOQ is 50 coils for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.



Q3: How to guarantee the quality of products?

We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.



HUILONG HISTORY

  • In 1989, HUILONG company was established, the original store was located in Anping Wire Mesh World Supermarket;
  • In 1994, Anping HUILONG wire mesh factory was founded, located in Nanhuan East Road, mainly for the domestic market and produce Welded Wire Mesh Roll, Welded Wire Mesh Panel, and Wire Mesh Fence, etc.;
  • In 1998, ethnic Chinese from Philippines visited us and confirmed the intention of cooperation;
  • In 2004, Philippines invested 1 million funds, HUILONG Wire Mesh became a joint venture company named as "ANPING HUILONG WIRE MESH MANUFACTURE CO., LTD.";
  • In 2008, HUILONG wire mesh international sales department successfully obtained European market, establishing a European trading circle based on France, Belgium and Italy;
  • In 2009, we obtained 50 acres land in Taicheng industry park, and built up a brandnew factory. The workshop occupies 25,000㎡, warehouse 10000㎡, with total 300 sales representatives and workers;
  • In 2011, our company exported to more than one hundred countries, cooperated with more than 200 customers;
  • In May 2012, Shijiazhuang international trade branch office was set up;
  • In 2013, we purchased 300㎡ of office building in Shijiazhuang;
  • In 2015, Anping HUILONG Wire Mesh Manufacture Co., Ltd joined the Anping Wire Mesh Chamber of Commerce, becoming an important part of it;
  • In 2016, we set up a new foreign trade team of 35 people, with an office area of 300 square meters;
  • In 2017-2018, our wire mesh products were well sold and well recognized in the markets of America, Africa and Southeast Asia;
  • In 2019, we registered AIBUER TRADING CO., LTD. and integrated more factory resources, enriched product categories, to provide customers with more valuable services;
  • In 2020, HUILONG invested and established Concertina Razor Wire Factory, which covers an area of 7,000 square meters;
  • In 2021, the factory department has established a domestic trade team of 30 people, with a new office area of 600 square meters.

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 7

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 8

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 9

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 10

Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 11Hot DIP Concertina Bto-22 Type Razor Barbed Wire From China 12
