BTO-22 2.8MM COIL WIRE Hotdip Galvanized Border Concertina Razor Wire

BTO-22 2.8MM COIL WIRE Hotdip Galvanized Border Concertina Razor Wire

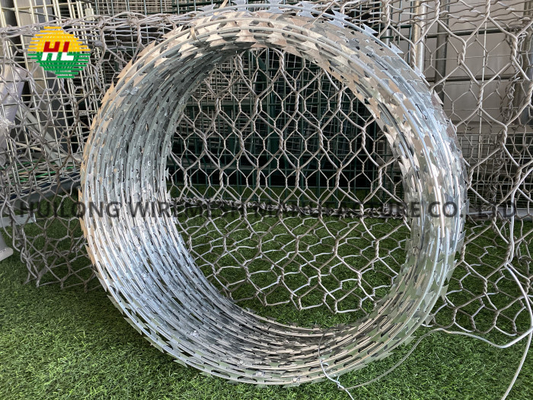

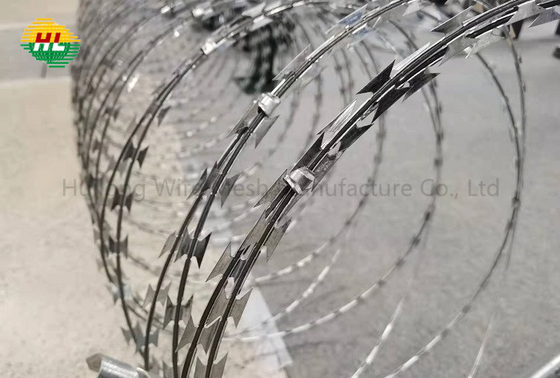

Concertina razor wire is a formidable security barrier commonly used to fortify perimeters and deter unauthorized access. It consists of razor-sharp blades or barbs attached to high-tensile wire, which is then coiled into a compact, concertina-like configuration. This design creates a formidable obstacle that is difficult to breach or navigate without specialized equipment or training.

The razor blades or barbs are typically made of hardened steel, designed to inflict significant injury upon contact, thereby serving as a potent deterrent against intruders. Concertina razor wire is often deployed in high-security areas such as prisons, military installations, border crossings, and other sensitive facilities where strict access control is paramount.

Beyond its physical deterrent properties, concertina razor wire also serves as a psychological barrier, signaling to potential trespassers the seriousness of the security measures in place. Its presence alone can dissuade individuals from attempting to breach a perimeter.

Despite its effectiveness, concertina razor wire requires careful handling during installation and maintenance to prevent accidental injury to personnel. Additionally, proper signage and fencing regulations should be observed to ensure compliance with safety standards and legal requirements

RAW MATERIALS

1) Blade

Material: Galvanized Steel or Stainless Steel

Thickness: 0.5mm

Barb Length: 12-65mm

Barb Spacing: 26-100mm

2) Core Wire

Material: Electro Galvanized Wire, Hot-dipped Galvanized Wire, Stainless Steel Wire

Wire Diameter: 2.8mm

If you need,razor wire product can also be coated by PVC, so that it has higher corrosion resistance and is more beautiful. Green color is commonly used, and other colors can be customized according to customers’ requirements.

COMMON BLADE TYPES

1) BTO (Barbed Tape Obstacle):

    BTO-10, BTO-22, BTO-30;

2) CBT (Concertina Barbed Tape):

    CBT-60, CBT-65.

SPECIFICATIONS

1) Raw Material —— Galvanized Steel or Stainless Steel Plate + Galvanized Steel or Stainless Steel Wire.

2) Machine Punching ——  The galvanized sheet or stainless steel sheet is formed into the shape of a blade during the machine stamping process

3) Machine Forming —— Combine the coil wire and the blade plate.

4) Clip Installation—— We use clip gun to install C-ring clip, to make it firm

5) PVC Coating—— RAL 6005 Green color or any other colors in RAL Color System are all available.

6) Packaging —— Packaged with waterproof paper + woven bag, corrugated carton, or pallet. Special requirements can be customized.

PACKAGING SYSTEM

Because Concertina Barbed Wire has sharp blades, it is necessary to pay more attention to the way of packaging.

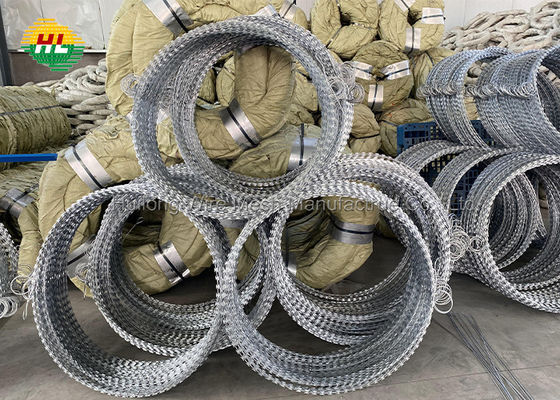

1) Generally, Razor Barbed Wire will be made into a coil, and then we use waterproof paper and woven bag for packaging. These coils can be directly loaded into container. Or, 10-20 coils will be compressed together with steel belts to make it stronger. In contrast, the loading quantity of compressed package is much more than what is in loose package.

2) Small Corrugated Box packaging, Razor Barbed Wire coils can be put into small pieces of paper boxes separately, this method is mainly used for supplying supermarkets or stores which directly facing the end users.

3) Corrugated Carton packaging, corrugated cartons can be customized according to customer requirements, and then 3-5 coils of razor wire are stacked into one carton, separated by cardboard in the middle.

4) Pallet packaging, compressed Razor Barbed Wire can also be packaged with plastic film, packing belt and pallet.

5) In addition, according to customer needs, we can also carry out exclusive customized services.

WAREHOUSE STORAGE SYSTEM

The production workshop of Concertina Barbed Wire occupies an area of 5,000 square meters, with 5 punching machines, 20 wire wrapping machines, 50 automatic pneumatic clip guns for clip installation, 6 workbenches for manual buckle. Our daily output is about 80 tons, and we have a large stock, and we can deliver the products with conventional specifications to the port or the designated warehouse immediately after the payment is completed.

International Standard for Razor Barbed Wire

ASTM F1910-98(2018)---Standard Specification for Long Barbed Tape Obstacles

ASTM F1379-95(2018)---Standard Terminology Relating to Barbed Tape

ASTM F1911-05(2019)---Standard Practice for Installation of Barbed Tape

QUALITY INSPECTION BEFORE LOADING

Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.

AFTER-SALES SERVICE SYSTEM

1) After the order is confirmed, we will update the production schedule of the goods in time.

2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.

3) If any quality problem is found before delivery, we will deal with it in time.

4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.

FREQUENTLY ASKED QUESTIONS

Q1: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.

Q2: What’s the MOQ?

MOQ is 50 coils for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q3: How to guarantee the quality of products?

We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
