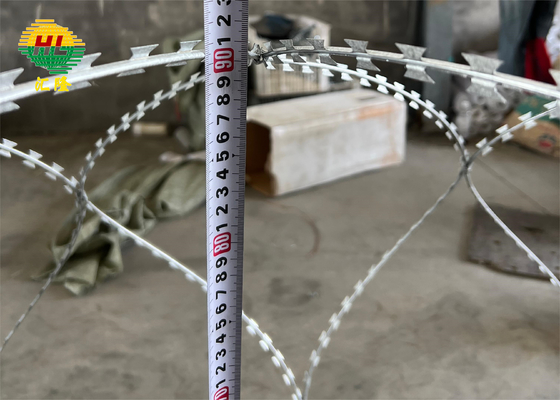

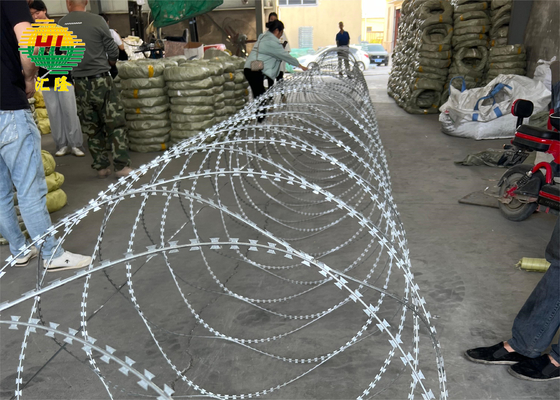

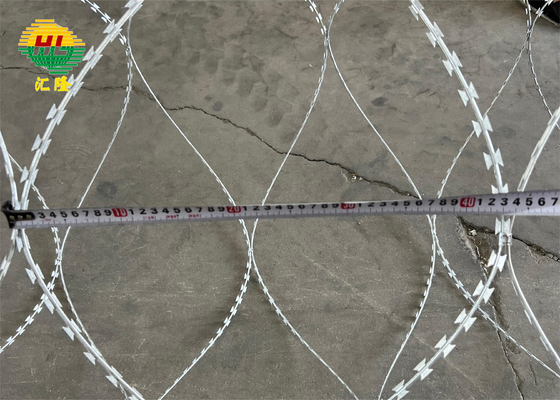

0.45mm Plate Hotdip Galvanized Border BTO-22 Concertina Razor Wire
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 0.45mm Plate Hotdip Galvanized Border Concertina Razor Wire | Material: | Galvanized Steel, Stainless Steel |
|---|---|---|---|
| Wire Diameter: | 2.0, 2.5, 2.8mm | Coil Diamter: | 1000mm |
| Clips Per Spirl: | 7 | Length: | 8,10m As Your Request |
| Tensile: | 1400-1500MPA | International Standard: | ASTM |
| Packaging: | In Coils, In Carton, On Pallet, Etc. | Application: | For High Security, Private Garden, Barrier Fence, Etc. |
| Highlight: | Hotdip Galvanized Concertina Razor Wire,0.45mm Concertina Razor Wire,BTO-22 Concertina Razor Wire |
||
0.45mm Plate Hotdip Galvanized Border BTO-22 Concertina Razor Wire
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | 0.45mm Plate Hotdip Galvanized Border Concertina Razor Wire |
| Material | Galvanized Steel, Stainless Steel |
| Wire Diameter | 2.0, 2.5, 2.8mm |
| Coil Diameter | 1000mm |
| Clips per Spiral | 7 |
| Length | 8,10m as your request |
| Tensile | 1400-1500MPA |
| International Standard | ASTM |
| Packaging | in Coils, in Carton, on Pallet, etc. |
| Application | for High Security, Private Garden, Barrier Fence, etc. |
Product Description
Concertina razor wire is a formidable security barrier designed to deter intruders and unauthorized access. It consists of razor-sharp blades wrapped around a high-tensile wire in a concertina or spiral configuration, creating a formidable barrier that is difficult to breach. The sharp blades, typically made of galvanized steel or stainless steel, are arranged to maximize effectiveness in preventing unauthorized entry.
The distinctive appearance of concertina razor wire serves as a visual deterrent, signaling the presence of a high-security perimeter. It is commonly used in military installations, prisons, border security, and other critical infrastructure facilities where security is paramount.
Raw Materials
- Blade: Material: Galvanized Steel or Stainless Steel | Thickness: 0.5mm | Barb Length: 12-65mm | Barb Spacing: 26-100mm
- Core Wire: Material: Electro Galvanized Wire, Hot-dipped Galvanized Wire, Stainless Steel Wire | Wire Diameter: 2.5mm
Razor wire product can also be PVC coated for higher corrosion resistance and improved aesthetics. Green is commonly used, with other colors available upon request.
Common Blade Types
- BTO (Barbed Tape Obstacle): BTO-10, BTO-22, BTO-30
- CBT (Concertina Barbed Tape): CBT-60, CBT-65
Technical Specifications
| Reference Number | Blade Style | Thickness (mm) | Wire Dia. (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
|---|---|---|---|---|---|---|
| BTO-10 | See pictures | 0.5±0.05 | 2.5±0.1 | 10±1 | 15±1 | 25±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 35±1 | |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 50±1 | |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 31±1 | 100±2 | |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
|---|---|---|---|---|
| 300mm | 33 | 4-6m | CBT-60, CBT-65 | Single Coil |
| 450mm | 33 | 7-8 m | CBT-60, CBT-65 | Single Coil |
| 500mm | 56 | 12-13m | CBT-60, CBT-65 | Single Coil |
| 700mm | 56 | 13-14m | CBT-60, CBT-65 | Single Coil |
| 960mm | 56 | 14-15m | CBT-60, CBT-65 | Single Coil |
| 450mm | 56 | 8-9m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 500mm | 56 | 9-10m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 600mm | 56 | 10-11m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 700mm | 56 | 10-12m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 800mm | 56 | 11-13m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 900mm | 56 | 12-14m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 980mm | 56 | 14-16m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
Manufacturing Process
- Raw Material: Galvanized Steel or Stainless Steel Plate + Galvanized Steel or Stainless Steel Wire
- Machine Punching: Forming the galvanized sheet or stainless steel sheet into blade shape
- Machine Forming: Combining the coil wire and the blade plate
- Clip Installation: Using clip gun to install C-ring clip for firmness
- PVC Coating: Available in RAL 6005 Green or any other RAL Color System colors
- Packaging: Waterproof paper + woven bag, corrugated carton, or pallet. Custom options available
Packaging Options
Because Concertina Barbed Wire has sharp blades, special packaging attention is required:
- Standard Coil Packaging: Waterproof paper and woven bag for direct container loading or compressed with steel belts for higher density
- Small Corrugated Box: Individual coils in paper boxes for retail/store distribution
- Corrugated Carton: Custom cartons holding 3-5 coils with cardboard separators
- Pallet Packaging: Compressed wire with plastic film, packing belt and pallet
- Custom Solutions: Exclusive packaging services available upon request
Production Capacity
Our production facility covers 5,000 square meters with:
- 5 punching machines
- 20 wire wrapping machines
- 50 automatic pneumatic clip guns
- 6 manual buckle workbenches
Daily output: ~80 tons | Large inventory available for immediate shipment of standard specifications.
Quality Standards
- ASTM F1910-98(2018) - Standard Specification for Long Barbed Tape Obstacles
- ASTM F1379-95(2018) - Standard Terminology Relating to Barbed Tape
- ASTM F1911-05(2019) - Standard Practice for Installation of Barbed Tape
Quality Assurance
Our comprehensive quality control system ensures timely delivery of products meeting international standards. Both our factory inspectors and customer-designated inspectors verify quality and quantity before shipment, with documentation provided throughout the process.
After-Sales Service
- Regular production schedule updates after order confirmation
- 24-hour response time for all inquiries
- 72-hour problem resolution guarantee
- Immediate attention to any quality issues found before delivery
- 24-hour response for post-delivery issues with photo documentation
Frequently Asked Questions
Are you a factory or trading company?
We are an 18-year factory with a registered trading company. This gives us both manufacturing control and professional international trade capabilities, ensuring quality products with excellent service.
What's the MOQ?
Minimum order quantity is 50 coils for standard stocked products. Custom products require negotiation. No MOQ for samples.
How do you guarantee product quality?
Our Quality Assurance Department implements strict inspections at every production stage. We prevent unqualified products from reaching the market and provide 24/7 support with 72-hour resolution guarantees.
Company History
1989: HUILONG company established in Anping Wire Mesh World Supermarket
1994: Founded Anping HUILONG wire mesh factory serving domestic market
1998: Began international cooperation with Philippines
2004: Became joint venture "ANPING HUILONG WIRE MESH MANUFACTURE CO., LTD."
2008: Expanded to European markets
2009: Built new factory on 50-acre land with 25,000㎡ workshop
2011: Exported to over 100 countries with 200+ customers
2012: Established Shijiazhuang international trade branch
2013: Purchased 300㎡ Shijiazhuang office building
2015: Joined Anping Wire Mesh Chamber of Commerce
2016: Expanded foreign trade team to 35 professionals
2017-2018: Strong sales in America, Africa and Southeast Asia
2019: Registered AIBUER TRADING CO., LTD. to expand product range
2020: Established 7,000㎡ Concertina Razor Wire Factory
2021: Formed 30-person domestic trade team with 600㎡ office
