Product Name: | Huilong Hot Dipped Galvanized 1.2m 1.5m 1.8m Height Field Hinge Joint Farm Fence | Material: | Hot Dipped Galvanized Steel Wire |
---|---|---|---|
Fence Style: | Woven Wire | Roll Length: | 50m 100m 150m 200m |
Roll Height: | 1.2m 1.5m 1.8m | Edge Wire Diameter: | 2.5mm |
Inner Wire Diameter: | 2mm | Application: | For Farm Field Fence, Deer Fence, Cattle Fence Etc. |
Highlight: | hot dipped galvanized field farm fence,1.8m field farm fence,1.5m hinge joint fence |

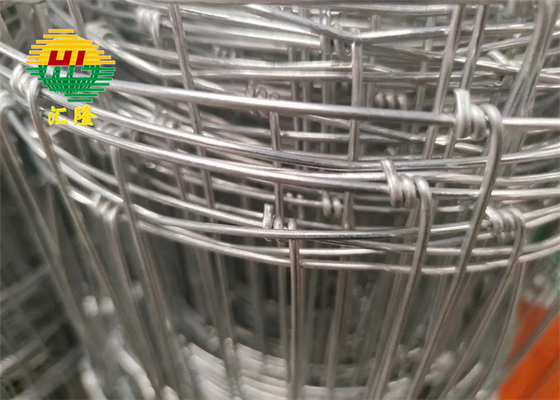

Huilong Hot Dipped Galvanized 1.2m 1.5m 1.8m Height Field Hinge Joint Farm Fence are made from high quality hot dipped galvanized steel wire.It has four wrapped knots or joints formed by two vertical holding wires that are wound together, give pressure, and then spring back into shape. There are 3 normal woven stype of the farm fence,hinge joint knot,square knot and fixed knot.This hinge joint knot provides a continuous protection, maximum strength and flexibility throughout the fence fabric. Hinged joint wire mesh fences are widely used in farms and ranches in the United States, Canada, South Africa, Australia and other countries as field fence materials. Hinged fences are also known as hinged knot fences or hinged lock fences, hinge joint wire mesh.Because of its easy installation and high strength characteristics, it is widely used in the world
Features:
There are different height options for different animals.
The spacing of horizontal lines is different in different growth stages.
Different vertical line spacing has different tensile strength.
Fixed knotted fencing is also available.
Suitable for chicken, rabbit, cat, horse, sheep, deer, even camels and other breeds.
SPECIFICATIONS
Material: Zinc-aluminum alloy wire or galvanized low carbon steel wire, both high draw wire.
Wire diameter: 1.6/2.0/2.5/3.0mm
Upper and lower wire diameters: 2.0/2.5/3.0/3.7mm
Fence height: 1.05 m to 2.4 m.
No | The specification of Hinge Joint Field Fence | Gross Weight | Top and Bottom Wire Dia. | Inner Wire Dia. | |
Type | Specifications(the incremental vertical hole sizes) | kg | mm | mm | |
1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2 |
2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2 |
3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2 |
4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2 |
5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2 |
6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2 |
7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 | 2.5 | 2 |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2 |
9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 |
Material:Hot dip galvanized wire,Zinc Coating of 40-50g/m², Zinc coating more than 200g/m² |
|||||
TIPS:1. The first data in type is the No.of line wire; The second data is horizontal hole size(mm); The third data is the height of the fence(mm); The fourth data is the total length for each roll(m). 2. Other sizes also available. |
ADDVANTAGES
1.Easy to install and fix.
2.The material has long life and excellent corrosion and rust resistance.
3.High practical value. Widely used (fields, fields, lawns and gardens).
DIFFERENT STYPE OF THE PRODUCT
Field Fence | |
Surface treatment | Electric galvanized.Galvanized,Hot Dipped Galvanized. |
Type : |
1.square knot 2.fixed knot 3.hinge joint knot |
Application | grassland, forestry and highway |
Packaging | plastic film, wooden pallet, bulk package or as your demand |
height | 0.8-2.0m or as your demand |
length | 50-200m or as your request |
PACKAGING DETAILS
1) Nuded Packing, with label inside.
2) Plastic film only, with label inside.
3) Plastic Shrink only, with label inside.
4) Plastic woven bag, with label inside.
5) Wooden Pallet or Iron Pallet: special design to ensure the belts stable.
APPLICATIONS
1) Protect your investment with our most reliable limits for cattle, pigs and other large animals.
2) can withstand the needs of large fauna
3) suitable for all terrain, as well as herds and pastures
4) special wire coil can withstand the worst weather, allowing the fence to expand and shrink
5) galvanized wires resistant to weathering and wear
RELATED PRODUCTS
1) T Post
T Post is matched and used with Hinge Joint Wire Mesh Fence, which has a steel plate on the top of the post for easier installation.
2) T Post Clip
T Post Clips allow you to easily secure the rolled Hinge Joint Wire Mesh Fence to the T-post tightly.
3) Y Post
Y Post is widely used as post for Farm Fences.
4) Post Driver
Post Driver can be used to help drill the post into ground more easily.
FREQUENTLY ASKED QUESTIONS
Q1: Is High Tensile Hinged Joint Knot Fence Different to erect?
While High Tensile Hinged joint knot fencing certainly requires different techniques to erect than mild steel, it is no more difficult. Most farms have access to a post driver that can easily drive in strainers to the required depth. Bending and tying off is simple when using the correct technique.
Q2: Isn’t High Tensile Hinged Joint Knot Fence Expensive?
It is a common misconception that a mild steel hinged joint knot fence will cost less than High Tensile. High Tensile mesh rolls may be more expensive to buy, but this is more than compensated for by the reduced numbers of posts and labour required.
Although HT8/80/15 is the most common spec used for livestock, we also offer a wide variety of specifications to suit different animals and applications. Please contact one of our fencing experts who are on hand to provide you with professional support and advice.
Q3: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
Q4: Can you offer samples?
Yes, free sample is available according to your request. And we can also ensure that the quality of the sample is the same as that of the mass products.
Q5: How about the payment terms?
T/T (30% deposit in advance) , L/C at sight.
Q6: How about the delivery time?
Within 7-15 days after receiving customer’s deposit or L/C.
