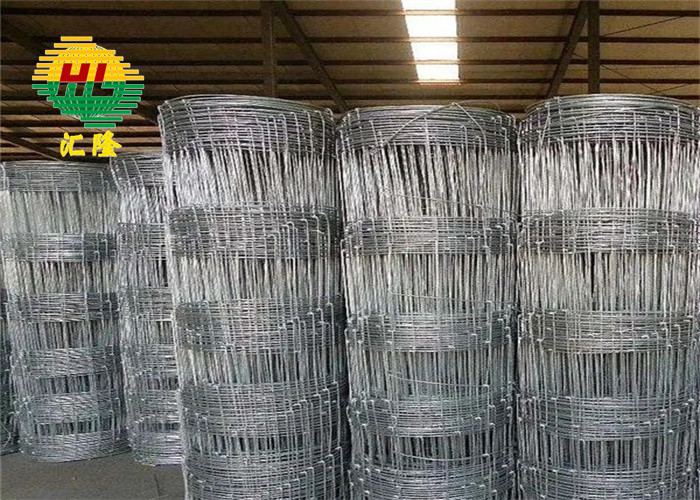

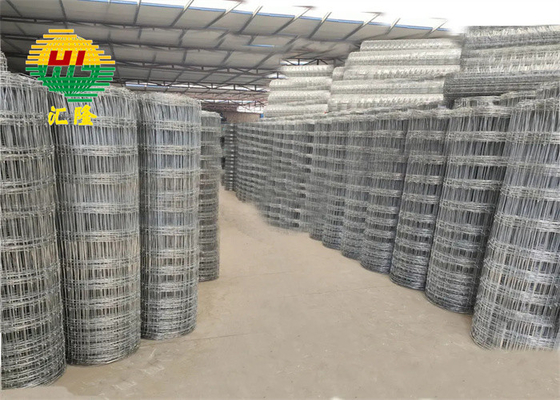

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence

I'm Online Chat Now
Certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
Not only your good products, but also your good after-sale services impressed me. Hope for more cooperations.

—— Michael

I ordered 3000 rolls of Welded Wire Mesh, and found that 3 rolls were damaged during transportation, but the factory compensated me within 24 hours. Overall, it is recommended.

—— Peter

It's the third time I buy from Huilong. Because of the Cornavirus, price here is very high, so I was looking for it from China. It's a very happy purchasing experience with Huilong, the quality is nothing different with the supermarket, I use the concertina wire for my fence project. The factory gave me gloves and pliers as a gift. It's worth it.

—— Paul

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence
High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence

Large Image :  High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: HJWM-HLLO230605
Payment & Shipping Terms:
Minimum Order Quantity: 100 ROLLS
Price: USD12.00-USD22.00/ROLL
Packaging Details: IN ROLLS WITH PLASTIC FILM/ PLASTIC SHRINK/ WOVEN BAG/ PALLET, ETC.
Delivery Time: 7 DAYS AS SOON AS WE GET CUSTOMER'S L/C OR DEPOSIT.
Payment Terms: L/C, T/T AT SIGHT
Supply Ability: TOTAL 3000ROLLS PER DAY
Detailed Product Description
Product Name: High Tension Galvanized Farm Grassland Fence Hinge Joint Wire Mesh Material: Galvanized Steel Wire
Fence Style: Woven Wire Roll Length: 50m 100m 150m 200m
Roll Height: 1.2m 1.5m 1.8m 2m Edge Wire Diameter: 2.5mm
Inner Wire Diameter: 2mm Application: For Farm Field Fence, Deer Fence, Cattle Fence Etc.
High Light:

high tension hinge joint wire mesh

,

galvanized hinge joint wire mesh

,

high tension hinge joint fence

High Tension Galvanized Farm Grassland Fence Hinge Joint Wire Mesh

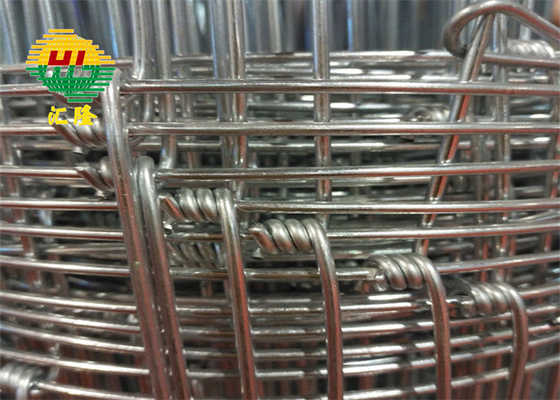

Hinged joint field fences have four wrapped knots or joints formed by two vertical holding wires that are wound together, give pressure, and then spring back into shape. This hinge knot provides a continuous protection, maximum strength and flexibility throughout the fence fabric. Hinged fences are widely used in farms and ranches in the United States, Canada, South Africa, Australia and other countries as field fence materials. Hinged fences are also known as hinged knot fences or hinged lock fences, hinge joint wire mesh.

Uses: hinged joint iron fence, used in grassland, pasture, ecological protection projects, protection of grassland, forestry, highway and other places.

SPECIFICATIONS

No The specification of Hinge Joint Field Fence Gross Weight Top and Bottom Wire Dia. Inner Wire Dia.
Type Specifications(the incremental vertical hole sizes) kg mm mm
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2
7 9/150/1245/50 102+114+127+140+152+178+203+229 26 2.5 2
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2
10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2
Material:Hot dip galvanized wire,Zinc
Coating of 40-50g/m², Zinc coating more than 200g/m²
TIPS:1. The first data in type is the No.of line wire; The second data is horizontal hole size(mm); The third data is the height of the fence(mm); The fourth data is the total length for each roll(m).
2. Other sizes also available.

ADDVANTAGES

Material Low carbon steel wire,galvanized iron wire
Inner wire diameter 1.8-2.5mm
Edge wire diameter 1.9-3.5mm
Surface treatment Galvanized & hot-dipped & pvc coated
Height 0.8m,1.0m,1.2m,1.5m,1.7m,2.0m,2.3m,2.6m,
Length 10-200m
Applications Used for borders in field and grassland for breeding of deer,cattle,etc
Characteristics Corrosion resistance.high tensile strength wire,firm structure,etc
Packing Packed by plastic film,in wooden pallet,in bulk


1.Easy to install and fix.

2.The material has long life and excellent corrosion and rust resistance.

3.High practical value. Widely used (fields, fields, lawns and gardens).

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence 0

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence 1



DIFFERENT STYPE OF THE PRODUCT



Field Fence
Surface treatment Electric galvanized.Galvanized,Hot Dipped Galvanized.
Type :

 1.square knot 2.fixed knot 3.hinge joint knot

Application grassland, forestry and highway
Packaging plastic film, wooden pallet, bulk package or as your demand
height 0.8-2.0m or as your demand
length 50-200m or as your request

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence 2

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence 3

PACKAGING DETAILS

1) Nuded Packing, with label inside.

2) Plastic film only, with label inside.

3) Plastic Shrink only, with label inside.

4) Plastic woven bag, with label inside.

5) Wooden Pallet or Iron Pallet: special design to ensure the belts stable.

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence 4

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence 5

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence 6

APPLICATIONS

1) Protect your investment with our most reliable limits for cattle, pigs and other large animals.

2) can withstand the needs of large fauna

3) suitable for all terrain, as well as herds and pastures

4) special wire coil can withstand the worst weather, allowing the fence to expand and shrink

5) galvanized wires resistant to weathering and wear

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence 7



RELATED PRODUCTS

1) T Post

T Post is matched and used with Hinge Joint Wire Mesh Fence, which has a steel plate on the top of the post for easier installation.

2) T Post Clip

T Post Clips allow you to easily secure the rolled Hinge Joint Wire Mesh Fence to the T-post tightly.

3) Y Post

Y Post is widely used as post for Farm Fences.

4) Post Driver

Post Driver can be used to help drill the post into ground more easily.

High Tension Hinge Joint Wire Mesh Galvanized Farm Grassland Fence 8



FREQUENTLY ASKED QUESTIONS

Q1: Is High Tensile Hinged Joint Knot Fence Different to erect?

While High Tensile Hinged joint knot fencing certainly requires different techniques to erect than mild steel, it is no more difficult. Most farms have access to a post driver that can easily drive in strainers to the required depth. Bending and tying off is simple when using the correct technique.



Q2: Isn’t High Tensile Hinged Joint Knot Fence Expensive?

It is a common misconception that a mild steel hinged joint knot fence will cost less than High Tensile. High Tensile mesh rolls may be more expensive to buy, but this is more than compensated for by the reduced numbers of posts and labour required.

Although HT8/80/15 is the most common spec used for livestock, we also offer a wide variety of specifications to suit different animals and applications. Please contact one of our fencing experts who are on hand to provide you with professional support and advice.



Q3: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.



Q4: Can you offer samples?

Yes, free sample is available according to your request. And we can also ensure that the quality of the sample is the same as that of the mass products.



Q5: How about the payment terms?

T/T (30% deposit in advance) , L/C at sight.



Q6: How about the delivery time?

Within 7-15 days after receiving customer’s deposit or L/C.
