10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height

I'm Online Chat Now
Certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
Not only your good products, but also your good after-sale services impressed me. Hope for more cooperations.

—— Michael

I ordered 3000 rolls of Welded Wire Mesh, and found that 3 rolls were damaged during transportation, but the factory compensated me within 24 hours. Overall, it is recommended.

—— Peter

It's the third time I buy from Huilong. Because of the Cornavirus, price here is very high, so I was looking for it from China. It's a very happy purchasing experience with Huilong, the quality is nothing different with the supermarket, I use the concertina wire for my fence project. The factory gave me gloves and pliers as a gift. It's worth it.

—— Paul

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height
10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height

Large Image :  10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: HJWM-HLLO230602
Payment & Shipping Terms:
Minimum Order Quantity: 100 ROLLS
Price: USD12.00-USD22.00/ROLL
Packaging Details: IN ROLLS WITH PLASTIC FILM/ PLASTIC SHRINK/ WOVEN BAG/ PALLET, ETC.
Delivery Time: 7 DAYS AS SOON AS WE GET CUSTOMER'S L/C OR DEPOSIT.
Payment Terms: L/C, T/T AT SIGHT
Supply Ability: TOTAL 3000ROLLS PER DAY
Detailed Product Description
Product Name: HUILONG 10 Wires Hinge Joint Field Fence, 330 Ft Length, 47 Inch Height Material: Galvanized Steel Wire
Fence Style: Woven Wire Roll Length: 330ft
Roll Height: 47inch Edge Wire Diameter: 2.5mm
Inner Wire Diameter: 2mm Application: For Farm Field Fence, Deer Fence, Cattle Fence Etc.
High Light:

hinge joint fence china

,

hinge joint fence distributor

,

hinge joint fence exporter

HUILONG 10 Wires Hinge Joint Field Fence, 330 ft Length, 47 inch Height

Hinged field fences are the most commonly used type with economic benefits. Different forms of weaving are used to wrap horizontal lines with vertical lines at each intersection to form hinge joints. This spring-shaped knot will provide maximum elasticity to absorb the most violent impact energy and spring back into its original shape. The hinge joint allows the necessary flexibility to move without breaking the wire when the pressure is placed on the stock over the fence.

A hinged joint fence, often referred to as a farm fence, has four wrapped hinge joints where two vertical draws are wound together to form a hinge joint. The knot acts like a hinge, contracting under pressure and then bouncing back into shape. This provides easy installation as the hinge "gives" while retaining the full height for continued protection and good appearance. Vertical wires are individually cut and wrapped for maximum strength and flexibility.

SPECIFICATIONS

No The specification of Hinge Joint Field Fence Gross Weight Top and Bottom Wire Dia. Inner Wire Dia.
Type Specifications(the incremental vertical hole sizes) kg mm mm
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2
7 9/150/1245/50 102+114+127+140+152+178+203+229 26 2.5 2
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2
10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2
Material:Hot dip galvanized wire,Zinc
Coating of 40-50g/m², Zinc coating more than 200g/m²
TIPS:1. The first data in type is the No.of line wire; The second data is horizontal hole size(mm); The third data is the height of the fence(mm); The fourth data is the total length for each roll(m).
2. Other sizes also available.



Material Low carbon steel wire,galvanized iron wire
Inner wire diameter 1.8-2.5mm
Edge wire diameter 1.9-3.5mm
Surface treatment Galvanized & hot-dipped & pvc coated
Height 0.8m,1.0m,1.2m,1.5m,1.7m,2.0m,2.3m,2.6m,
Length 10-200m
Applications Used for borders in field and grassland for breeding of deer,cattle,etc
Characteristics Corrosion resistance.high tensile strength wire,firm structure,etc
Packing Packed by plastic film,in wooden pallet,in bulk

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 0

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 1



DIFFERENT STYPE OF THE PRODUCT

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 2

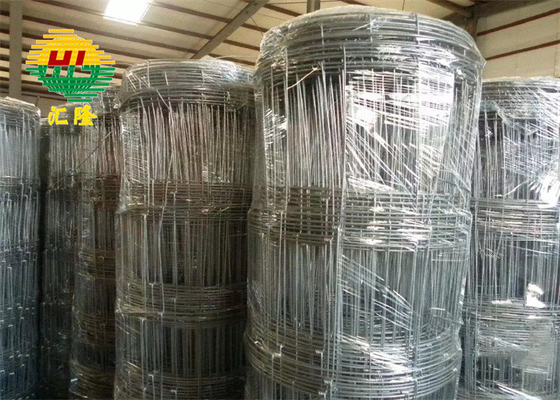

PACKAGING DETAILS

1) Nuded Packing, with label inside.

2) Plastic film only, with label inside.

3) Plastic Shrink only, with label inside.

4) Plastic woven bag, with label inside.

5) Wooden Pallet or Iron Pallet: special design to ensure the belts stable.

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 3

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 4

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 5

APPLICATIONS

1) Protect your investment with our most reliable limits for cattle, pigs and other large animals.

2) can withstand the needs of large fauna

3) suitable for all terrain, as well as herds and pastures

4) special wire coil can withstand the worst weather, allowing the fence to expand and shrink

5) galvanized wires resistant to weathering and wear

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 6



RELATED PRODUCTS

1) T Post

T Post is matched and used with Hinge Joint Wire Mesh Fence, which has a steel plate on the top of the post for easier installation.

2) T Post Clip

T Post Clips allow you to easily secure the rolled Hinge Joint Wire Mesh Fence to the T-post tightly.

3) Y Post

Y Post is widely used as post for Farm Fences.

4) Post Driver

Post Driver can be used to help drill the post into ground more easily.

10 Wires Field Hinge Joint Fence 330 Ft Length 47 Inch Height 7



FREQUENTLY ASKED QUESTIONS

Q1: Is High Tensile Hinged Joint Knot Fence Different to erect?

While High Tensile Hinged joint knot fencing certainly requires different techniques to erect than mild steel, it is no more difficult. Most farms have access to a post driver that can easily drive in strainers to the required depth. Bending and tying off is simple when using the correct technique.



Q2: Isn’t High Tensile Hinged Joint Knot Fence Expensive?

It is a common misconception that a mild steel hinged joint knot fence will cost less than High Tensile. High Tensile mesh rolls may be more expensive to buy, but this is more than compensated for by the reduced numbers of posts and labour required.

Although HT8/80/15 is the most common spec used for livestock, we also offer a wide variety of specifications to suit different animals and applications. Please contact one of our fencing experts who are on hand to provide you with professional support and advice.



Q3: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.



Q4: Can you offer samples?

Yes, free sample is available according to your request. And we can also ensure that the quality of the sample is the same as that of the mass products.



Q5: How about the payment terms?

T/T (30% deposit in advance) , L/C at sight.



Q6: How about the delivery time?

Within 7-15 days after receiving customer’s deposit or L/C.
