Home ProductsConcertina Barbed Wire

Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse

All Products
Concertina Barbed Wire (150)
Concertina Razor Wire Fence (86)
Galvanized Barbed Wire (72)
Putanka MZP Barrier (26)
Welded Wire Mesh Panels (70)
Welded Wire Mesh Rolls (91)
Gabion Box Wire Mesh (63)
Welded Mesh Fence (88)
Hexagonal Wire Netting (65)
Chain Link Wire Fence (107)
Hinge Joint Wire Mesh (60)
Iron Binding Wire (33)
Hesco Defensive Barriers (27)
I'm Online Chat Now
Not only your good products, but also your good after-sale services impressed me. Hope for more cooperations.

—— Michael

I ordered 3000 rolls of Welded Wire Mesh, and found that 3 rolls were damaged during transportation, but the factory compensated me within 24 hours. Overall, it is recommended.

—— Peter

It's the third time I buy from Huilong. Because of the Cornavirus, price here is very high, so I was looking for it from China. It's a very happy purchasing experience with Huilong, the quality is nothing different with the supermarket, I use the concertina wire for my fence project. The factory gave me gloves and pliers as a gift. It's worth it.

—— Paul

Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse

Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse
Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse

Large Image :  Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: CBW-HLLO0412
Payment & Shipping Terms:
Minimum Order Quantity: 50 COILS
Price: USD5.0-USD15.0/KG
Packaging Details: IN COILS WITH WATERPROOF PAPER+WOVEN BAG; CARTON BOX; PALLET, ETC.
Delivery Time: 15-20 DAYS AS SOON AS WE GET CUSTOMER’S DEPOSIT OR L/C.
Payment Terms: L/C,T/T AT SIGHT
Supply Ability: 40,000 KG PER DAY
Contact Now
Detailed Product Description
Product Name: Bto-22 Pvc Coated/Galvanized Cash Goods In Warehouse Concertina Razor Wire Material: Low Carbon Steel Wire
Wire Diameter: 2.0mm,2.5mm,2.8mm Coil Diamter: 450/500/600mm
Clip Per Spirl: 3,5,0 Length: 8,10m As Your Request
Lensile: 1400-1500MPA Standard: ASTM A975, EN
Color: Sliver,Black,Green,Red,etc Packaging: IN COILS WITH WATERPROOF PAPER+WOVEN BAG; CARTON BOX; PALLET, ETC.
Application: Prisons，Public Area，Private Land，etc Keywords: Bto-22 Galvanized/Pvc Coated Concertina Razor Wire
Highlight:

2.0mm Concertina Razor Wire

,

2.0mm Galvanized Razor Wire

,

Bto-22 Concertina Razor Wire

Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse
Product Specifications
Attribute Value
Product Name Bto-22 Pvc Coated/Galvanized Cash Goods In Warehouse Concertina Razor Wire
Material Low Carbon Steel Wire
Wire diameter 2.0mm, 2.5mm, 2.8mm
Coil diameter 450/500/600mm
Clip per spiral 3,5,0
Length 8,10m as your request
Tensile 1400-1500MPA
Standard ASTM A975, EN
Color Silver, Black, Green, Red, etc
Packaging IN COILS WITH WATERPROOF PAPER+WOVEN BAG; CARTON BOX; PALLET, ETC.
Application Prisons, Public area, Private land, etc
Product Description

Our Bto-22 Galvanized/Pvc Coated Concertina Razor Wire is a high-security perimeter protection solution consisting of razor plates combined with core wire. This warehouse-stocked product offers faster delivery and competitive pricing compared to custom orders.

Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse 0
Material Supply System
  • Blade: Low carbon steel galvanized plate (0.5mm thickness)
  • Barb Length: 12-65mm with 26-100mm spacing
  • Core Wire: Electro Galvanized or Hot-dipped Galvanized Wire (2.5mm/2.8mm diameter)
Common Blade Types
  • BTO (Barbed Tape Obstacle): BTO-10, BTO-22, BTO-30
  • CBT (Concertina Barbed Tape): CBT-60, CBT-65

Our blades feature a high tensile reinforcing band for maximum strength and durability, resistant to cutting or trampling. The heavy-duty steel clips can withstand approximately 200lbs/100kgs of force.

Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse 1
Technical Specifications
Outside Diameter No. of Loops Standard Length per Coil Razor Type Notes
450mm 33 7-8M CBT-60, 65 Single Coil
500mm 56 12-13M CBT-60, 65 Single Coil
700mm 56 13-14M CBT-60, 65 Single Coil
960mm 56 14-15M CBT-60, 65 Single Coil
450mm 56 8-9M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
500mm 56 9-10M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 10-11M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 8-10M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
700mm 56 10-12M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
800mm 56 11-13M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
900mm 56 12-14M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
960mm 56 13-15M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
980mm 56 14-16M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
Production Process
  1. Raw Material: Galvanized Steel or Stainless Steel Plate + Wire
  2. Machine Punching: Steel sheet punched into sharp barbs
  3. Machine Forming: Core wire and razor plate assembly
  4. Clip Installation: Pneumatic clip gun installation of C-ring clips
  5. Packaging: Customized packaging options available
Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse 2
Packaging Options
  • Standard Coil Packaging: Waterproof paper + woven bag (direct container loading)
  • Compressed Packaging: 10-20 coils compressed with steel belts
  • Corrugated Box Packaging: Individual coils in small boxes for retail
  • Carton Packaging: 3-5 coils per customized carton
  • Pallet Packaging: Compressed coils with plastic film and packing belts
Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse 3
Quality Assurance

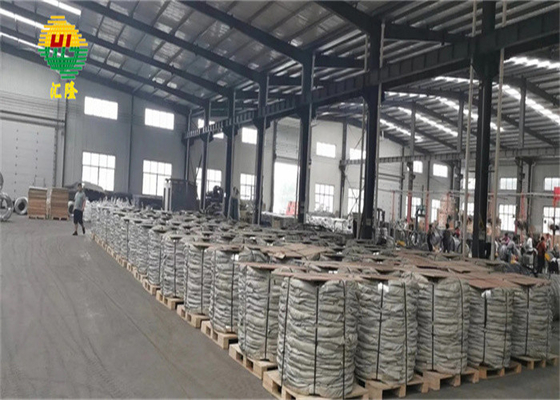

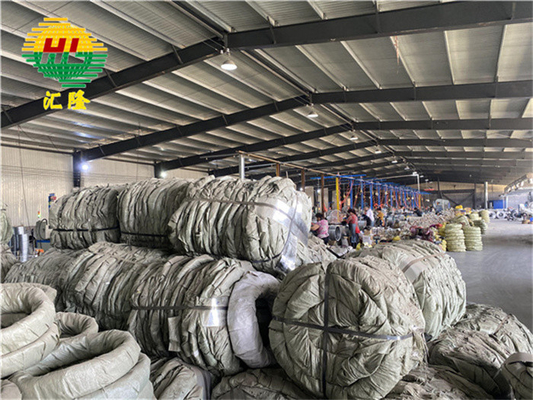

Our 5,000 square meter production facility features 50 machines capable of producing 20 tons daily. Quality inspectors monitor every production stage to ensure international standards compliance (ASTM F1910-98, ASTM F1379-95, ASTM F1911-05).

Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse 4 Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse 5
Applications

Our BTO-22 Concertina Razor Wire is ideal for:

  • Prisons and detention facilities
  • Military installations
  • Government buildings
  • Industrial complexes
  • Private property protection
Bto-22 Pvc Coated Galvanized 2.0mm Concertina Razor Wire Cash Goods In Warehouse 6
Frequently Asked Questions
Q1: Are you a factory or trading company?

We are an 18-year manufacturing factory with our own trading company, combining production control with professional international trade services.

Q2: What's the MOQ?

Minimum order quantity is 50 coils for standard products. Custom orders require negotiation. No MOQ for samples.

Q3: How do you guarantee product quality?

Our Quality Assurance Department implements strict inspections at every production stage. We provide 24-hour response and 72-hour problem resolution for any issues.

Company History
1989: HUILONG company established in Anping Wire Mesh World Supermarket
1994: Founded Anping HUILONG wire mesh factory
1998: First international cooperation established
2004: Became joint venture company with Philippines investment
2008: Expanded to European markets
2009: Built new factory in Taicheng industry park
2011: Exported to over 100 countries
2012: Established Shijiazhuang international trade branch
2015: Joined Anping Wire Mesh Chamber of Commerce
2020: Established dedicated Concertina Razor Wire Factory
