High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard

High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard
High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard

Large Image :  High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: CBW-HLLO0410
Payment & Shipping Terms:
Minimum Order Quantity: 50 COILS
Price: USD5.0-USD15.0/KG
Packaging Details: IN COILS WITH WATERPROOF PAPER+WOVEN BAG; CARTON BOX; PALLET, ETC.
Delivery Time: 15-20 DAYS AS SOON AS WE GET CUSTOMER’S DEPOSIT OR L/C.
Payment Terms: L/C,T/T AT SIGHT
Supply Ability: 40,000 KG PER DAY
Contact Now
Detailed Product Description
Product Name: High Qualitity High Security Galvanized CBT-60/CBT-65 Concertina Barbed Wire Material: Low Carbon Steel Wire
Wire Diameter: 2.0mm,2.5mm,2.8mm Coil Diamter: 450/500/600mm
Clip Per Spirl: 3,5,0 Length: 8,10m As Your Request
Lensile: 1400-1500MPA Standard: ASTM A975, EN
Color: Sliver Packaging: IN COILS WITH WATERPROOF PAPER+WOVEN BAG; CARTON BOX; PALLET, ETC.
Application: Prisons，Public Area，Private Land，etc Keywords: High Security Galvanized Cbt-60/Cbt-65 Concertina Barbed Wire
Highlight:

High Security CBT-65 razor wire

,

Concertina Barbed Wire ASTM A975

,

CBT-65 Razor Wire ASTM A975 Standard

High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard
Product Specifications
Attribute Value
Product Name High Quality High Security Galvanized CBT-60/CBT-65 Concertina Barbed Wire
Material Low Carbon Steel Wire
Wire diameter 2.0mm, 2.5mm, 2.8mm
Coil diameter 450/500/600mm
Clip per spiral 3, 5, 0
Length 8, 10m as your request
Tensile 1400-1500MPA
Standard ASTM A975, EN
Color Silver
Packaging In coils with waterproof paper + woven bag; carton box; pallet, etc.
Application Prisons, public areas, private land, etc.
Product Description

Our High Quality High Security Galvanized CBT-60/CBT-65 Concertina Barbed Wire is a premium security solution widely used in prisons, industrial areas, and private properties. The extended blade lengths of 60mm and 65mm provide superior security and barrier properties compared to standard barbed wire.

High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard 0
Material Supply System

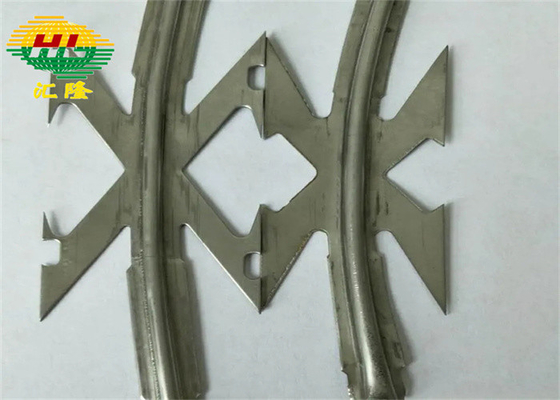

  • Blade: Low carbon steel galvanized plate, 0.5mm thickness, barb length 12-65mm, barb spacing 26-100mm
  • Core Wire: Electro galvanized or hot-dipped galvanized wire, diameter options: 2.5mm/2.8mm
Common Blade Types
  • BTO (Barbed Tape Obstacle): BTO-10, BTO-22, BTO-30
  • CBT (Concertina Barbed Tape): CBT-60, CBT-65

The blade features a high tensile reinforcing band for maximum strength, making it extremely difficult to cut or trample. Our heavy-duty steel clips can withstand approximately 200lbs/100kgs of force.

High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard 1
Technical Specifications
Outside Diameter No. of Loops Standard Length per Coil Razor Type Notes
450mm 33 7-8M CBT-60, 65 Single Coil
500mm 56 12-13M CBT-60, 65 Single Coil
700mm 56 13-14M CBT-60, 65 Single Coil
960mm 56 14-15M CBT-60, 65 Single Coil
450mm 56 8-9M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
500mm 56 9-10M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 10-11M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 8-10M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
700mm 56 10-12M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
800mm 56 11-13M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
900mm 56 12-14M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
960mm 56 13-15M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
980mm 56 14-16M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
Manufacturing Process
  1. Raw Material: Galvanized steel or stainless steel plate + galvanized steel or stainless steel wire
  2. Machine Punching: Steel sheet is punched into sharp barbs
  3. Machine Forming: Core wire and razor plate assembly
  4. Clip Installation: C-ring clips installed using pneumatic clip guns
  5. Packaging: Waterproof paper + woven bag, corrugated carton, or pallet packaging

PVC coating is applied before final packaging when required.

High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard 2

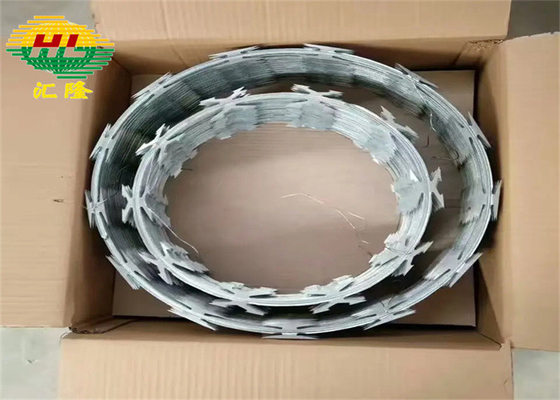

Packaging Options
  • Standard Packaging: Waterproof paper + woven bag, either loose or compressed with steel belts
  • Retail Packaging: Small corrugated boxes for individual coils
  • Bulk Packaging: Custom corrugated cartons holding 3-5 coils
  • Palletized Packaging: Compressed coils with plastic film, packing belt and pallet

We offer customized packaging solutions to meet specific customer requirements.

High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard 3
Production Capacity

Our 5,000 square meter production facility includes:

  • 5 punching machines
  • 20 wire wrapping machines
  • 50 automatic pneumatic clip guns
  • 6 manual workbenches
  • 68 skilled workers including quality inspectors

We maintain dedicated storage areas for raw materials and finished products with strict quality control measures.

Quality Assurance

Our comprehensive quality control system covers every stage from raw material procurement to final product inspection. We adhere to international standards including:

  • ASTM F1910-98(2018) - Standard Specification for Long Barbed Tape Obstacles
  • ASTM F1379-95(2018) - Standard Terminology Relating to Barbed Tape
  • ASTM F1911-05(2019) - Standard Practice for Installation of Barbed Tape
High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard 4
Applications

Our concertina barbed wire is widely used for high-security applications including:

  • Industrial and mining facilities
  • Residential and commercial properties
  • Border security installations
  • Military and government buildings
  • Prisons and detention centers
High Security CBT-60 CBT-65 Razor Wire Concertina Barbed Wire ASTM A975 Standard 5
Frequently Asked Questions
Are you a factory or trading company?

We are an 18-year manufacturing company with our own factory and registered trading company. This allows us to maintain strict quality control while offering comprehensive sourcing services.

What's the MOQ?

Minimum order quantity is 50 coils for standard products. Custom products require negotiation. Sample orders have no MOQ.

How do you guarantee product quality?

Our Quality Assurance Department implements strict inspections at every production stage. We provide 24-hour response and 72-hour resolution for any quality issues.
