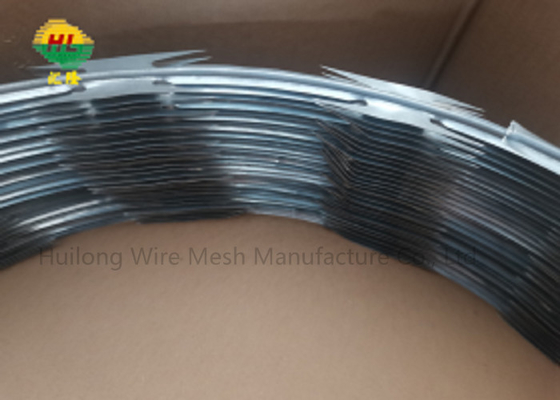

Galvanized ASTM Security Concertina Barbed Wire Anti Climb 500mm Cbt-60

Galvanized ASTM Security Concertina Barbed Wire Anti Climb 500mm Cbt-60
Galvanized ASTM Security Concertina Barbed Wire Anti Climb 500mm Cbt-60 Galvanized ASTM Security Concertina Barbed Wire Anti Climb 500mm Cbt-60 Galvanized ASTM Security Concertina Barbed Wire Anti Climb 500mm Cbt-60

Large Image :  Galvanized ASTM Security Concertina Barbed Wire Anti Climb 500mm Cbt-60 Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: w-010
Payment & Shipping Terms:
Minimum Order Quantity: 57 COILS
Price: USD6.0-USD14.0/KG
Packaging Details: 40,000 KG PER DAY
Delivery Time: 7-20 DAYS AS SOON AS WE GET CUSTOMER
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: IN COILS WITH WATERPROOF PAPER+WOVEN BAG; CARTON BOX; PALLET, ETC.
Detailed Product Description
Product Name: CBT-60 Hot Dipped Galvanized Concertina Barbed Wire Double Loop With Clips 450mm For Farm Fence Garden Keyword: High Security Cbt-60 Galvanized Concertina Barbed Wire
Material: Hot-dipped Galvanized Wire Diameter: 2.0,2.5,2.8mm
Coil Diamter: 500 Mm Clip Per Spirl: 0,3,5
Roll Length: 8,10m As Your Request Tensile: 1400-1500MPA
International Standard: ASTM Application: Private Houses, Villa Walls,
High Light:

Concertina Barbed Wire 500mm

,

ASTM Concertina Barbed Wire

,

security barbed wire 500mm

High security cbt-60 galvanized concertina barbed wire anti climb 500mm installation on the wall and fence





The concertina barbed wire are materials produced using steel sheets. This material can cut and cause other types of injury to anyone who tries improperly on its land. Because it is sharp and is hardly damaged, the material has a satisfactory safety standard. Blade wire has the characteristic of beauty, economy and practicality, good anti-blocking effect, and convenient construction. It is naturally surrounded by walls or fences for protection purposes. It is mainly used in military sites, prisons, government agencies, banks, and the walls of living quarters, private houses, villa walls, doors and windows, highways, railway guardrails, and border lines to protect security.





Galvanized ASTM Security Concertina Barbed Wire Anti Climb 500mm Cbt-60 0









Galvanized ASTM Security Concertina Barbed Wire Anti Climb 500mm Cbt-60 1





Common Blade Types

Generally, we have two types of razor blades, which are commonly named as BTO and CBT. They are named according to the shapes of the razor with different razor lengths. Please refer to the following forms.

1) BTO (Barbed Tape Obstacle): BTO-10, BTO-22, BTO-30;

2) CBT (Concertina Barbed Tape): CBT-60, CBT-65.



Material Supply System



1) Blade

Material: Galvanized Steel or Stainless Steel

Thickness: 0.5mm

Barb Length: 12-65mm

Barb Spacing: 26-100mm



2) Core Wire

Material: Electro Galvanized Wire, Hot-dipped Galvanized Wire, Stainless Steel Wire

Wire Diameter: 2.5mm



3) PVC Coating

Razor Barbed Wire can also be coated by PVC, so that it has higher corrosion resistance and is more beautiful. Green color is commonly used, and other colors can be customized according to customers’ requirements.



Galvanized ASTM Security Concertina Barbed Wire Anti Climb 500mm Cbt-60 2



Most Durable

Blade: Stainless Steel Plate

Core Wire: Stainless Steel Wire

Medium Grade

Blade: Stainless Steel Plate

Core Wire: Galvanized Steel Wire

Most Economical

Blade: Galvanized Steel Plate

Core Wire: Galvanized Steel Wire

PVC Coated

Blade: PVC Coated Steel Plate

Core Wire: PVC Coated Steel Wire


Razor Blade Type and Specification
Reference Number

Blade Style



Thickness

(mm)

Wire Dia.

(mm)

Barb Length

(mm)

Barb Width

(mm)

Barb Spacing

(mm)

BTO-10 Please see the above pictures 0.5±0.05 2.5±0.1 10±1 15±1 25±1
BTO-22   0.5±0.05 2.5±0.1 22±1 15±1 35±1
BTO-30   0.5±0.05 2.5±0.1 30±1 18±1 50±1
CBT-60   0.5±0.05 2.5±0.1 60±2 31±1 100±2
CBT-65   0.5±0.05 2.5±0.1 65±2 21±1 100±2



Outside Diameter No. of Loops

Standard Length

per Coil

Type Notes
300mm 33 4-6m CBT-60, CBT-65 Single Coil
450mm 33 7-8 m CBT-60, CBT-65 Single Coil
500mm 56 12-13m CBT-60, CBT-65 Single Coil
700mm 56 13-14m CBT-60, CBT-65 Single Coil
960mm 56 14-15m CBT-60, CBT-65 Single Coil
450mm 56 8-9m (3 clips) BTO-10, BTO-22, BTO-30 Cross Type
500mm 56 9-10m (3 clips) BTO-10, BTO-22, BTO-30 Cross Type
600mm 56 10-11m (3 clips) BTO-10, BTO-22, BTO-30 Cross Type
700mm 56 10-12m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type
800mm 56 11-13m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type
900mm 56 12-14m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type
980mm 56 14-16m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type


MASS PRODUCTION PROCEDURE

1) Raw Material —— Galvanized Steel or Stainless Steel Plate + Galvanized Steel or Stainless Steel Wire.

2) Machine Punching —— Steel sheet is punched into sharp barbs with punching machine.

3) Machine Forming —— Core wire and razor plate

4) Clip Installation—— We use clip gun to install C-ring clip, to make it firm

5) PVC Coating—— RAL 6005 Green color or any other colors in RAL Color System are all available.

6) Packaging —— Packaged with waterproof paper + woven bag, corrugated carton, or pallet. Special requirements can be customized.

2.5mm Concertina Barbed Tape , Security Rbt Reinforced Barbed Wire 1



2.5mm Concertina Barbed Tape , Security Rbt Reinforced Barbed Wire 2



PACKAGING SYSTEM

Because Concertina Barbed Wire has sharp blades, it is necessary to pay more attention to the way of packaging.

1) Generally, Razor Barbed Wire will be made into a coil, and then we use waterproof paper and woven bag for packaging. These coils can be directly loaded into container. Or, 10-20 coils will be compressed together with steel belts to make it stronger. In contrast, the loading quantity of compressed package is much more than what is in loose package.

2) Small Corrugated Box packaging, Razor Barbed Wire coils can be put into small pieces of paper boxes separately, this method is mainly used for supplying supermarkets or stores which directly facing the end users.

3) Corrugated Carton packaging, corrugated cartons can be customized according to customer requirements, and then 3-5 coils of razor wire are stacked into one carton, separated by cardboard in the middle.

4) Pallet packaging, compressed Razor Barbed Wire can also be packaged with plastic film, packing belt and pallet.

5) In addition, according to customer needs, we can also carry out exclusive customized services.

2.5mm Concertina Barbed Tape , Security Rbt Reinforced Barbed Wire 3



WAREHOUSE STORAGE SYSTEM

The production workshop of Concertina Barbed Wire occupies an area of 5,000 square meters, with 5 punching machines, 20 wire wrapping machines, 50 automatic pneumatic clip guns for clip installation, 6 workbenches for manual buckle. There are 68 workers in total, including 1 Warehouse Manager and 2 Quality Inspectors. In the process of production, quality inspectors will check on site to ensure the quality of products. At the same time, there is exclusive storage space for raw materials and finished products with special care.

We use pneumatic clip gun to install C-ring clips. Air press: 90-120psi (6-8bars, 60-80kg/cm). Faster and stronger.

2.5mm Concertina Barbed Tape , Security Rbt Reinforced Barbed Wire 4



2.5mm Concertina Barbed Tape , Security Rbt Reinforced Barbed Wire 5



QUALITY CONTROL SYSTEM

Quality management is a part we consider very important, because it directly determines whether the customer is satisfied or not. From raw material storage, machine maintenance, workers' qualifications, technical standards, production process, to product inspection, packaging and transportation, we ensure quality control to meet customers' requirements at the most economical level. At the same time, we have a perfect after-sales service system, efficient for you to solve any problems in the process of order.



International Standard for Razor Barbed Wire

ASTM F1910-98(2018)---Standard Specification for Long Barbed Tape Obstacles

ASTM F1379-95(2018)---Standard Terminology Relating to Barbed Tape

ASTM F1911-05(2019)---Standard Practice for Installation of Barbed Tape

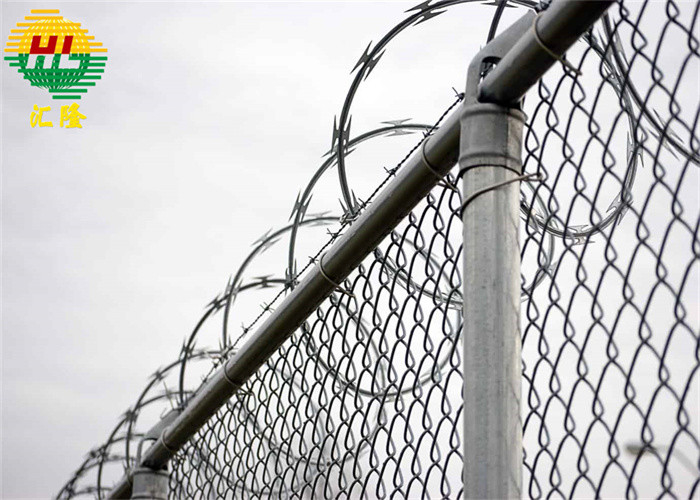

PRODUCT APPLICATIONS

Concertina Barbed Wire has beautiful, economical, and practical, good anti-obstruction effect, convenient construction and other excellent characteristics. Currently, Razor Barbed Wire has been widely used in many countries, such as industrial and mining enterprises, garden apartments, border posts, military fields, prisons, detention houses, government buildings and other high security facilities.

2.5mm Concertina Barbed Tape , Security Rbt Reinforced Barbed Wire 6



2.5mm Concertina Barbed Tape , Security Rbt Reinforced Barbed Wire 7



DEEP PROCESSING OF CONCERTINA BARBED WIRE

1) Welded razor wires

Welded razor wires into meshes with diamond or rectangular hole patterns.It has simple but high security structure for both private and commercial applications.Welded razor wire can be attached or welded onto the frame as security fence.It can also be used as additional security
measure for other security fences.

2) Double concertina razor wire

Double concertina razor wire is combined with two different coil diameter of razor wire with steel wires or steel ropes. It is the advancement of common concertina wires. It has the highest security grade among all types of razor wires.It is suitable for use where need highest grade of security purpose.

3) Mobile razor wire deployment system

Mobile razor wire deployment system is designed for rapid deployment of efectively layered concertina coils. This is serious obstacle for rebels or demonstrators and vehicles to gain entry.Razor wire trailer deployment trailers are available in 3 coil configuration (3 coil = gives 1.7m high protection for 100m distance).The operation of the razor wire deployment trailer is simple and convenient.Connected to the vehicle through axis of traction and can be hitched on any type of vehicle. The next step wil be to open the tall gate or release the barrier holder frame and drive forward automatically releasing and stretching the concertina coil barrier.

4) Flat loop concertina wire

Flat loop concertina wire consists of individual loops of barb tape.Press the single coil razor wire into flat or press the two loops into flat and then expand them across.Flat warp concertina wire can be attached directly onto the top of an existing fence or gate. Flat loop concertina wire is ideal for use where topping needs to be flat against the fence without any overhang either side of the fence or boundary.

2.5mm Concertina Barbed Tape , Security Rbt Reinforced Barbed Wire 8



QUALITY INSPECTION BEFORE LOADING

Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.



AFTER-SALES SERVICE SYSTEM

1) After the order is confirmed, we will update the production schedule of the goods in time.

2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.

3) If any quality problem is found before delivery, we will deal with it in time.

4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.



FREQUENTLY ASKED QUESTIONS

Q1: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.



Q2: What’s the MOQ?

MOQ is 50 coils for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.



Q3: How to guarantee the quality of products?

We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
