Product Name: | BTO-22 BTO-30 CBT-60 CBT-65 Galvanized Razor Ribbon | Material: | Galvanized Steel, Stainless Steel |
---|---|---|---|
Type: | BTO-22 | Wire Diameter: | 2.0, 2.5, 2.8mm |
Coil Diamter: | 450mm | Clips Per Spirl: | 3 |
Length: | 8-10M | Tensile: | 1400-1500MPA |
International Standard: | ASTM | Packaging: | In Coils, In Carton, On Pallet, Etc. |
Application: | For High Security, Private Garden, Barrier Fence, Etc. | ||
High Light: | bto-22 galvanized razor wire,2.8mm galvanized razor wire,bto-30 galvanised razor wire |

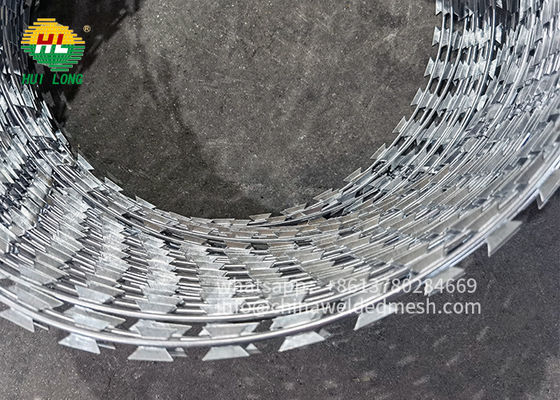

Galvanized Razor Ribbon are made of large coils that can be stretched like a concertina. Its hard and sharp blade will startle or injure any person or animal trying to get through the concertina barbed wire.
Concertina Barbed Wire is available in galvanized, PVC coated and stainless steel wire materials. In general, galvanized concertina barbed wire is very effective and relatively cheap.

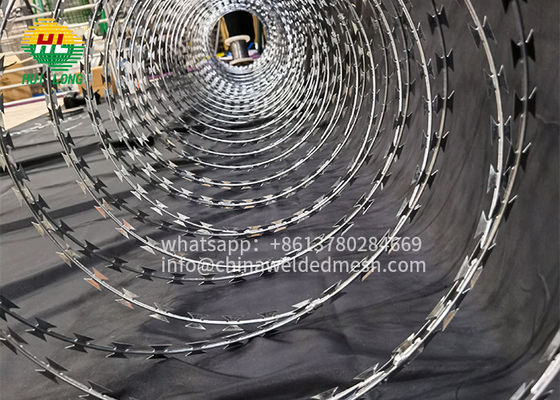

Concertina Barbed Wire is supplied in single coils, double coils or cross coils. In addition to the coiled ones, straight concertina barbed wire is also available, which can be welded to form the fence.
CONSTITUTE PARTS
1) Blade
Material: Galvanized Steel or Stainless Steel
Thickness: 0.5mm
Barb Length: 12-65mm
Barb Spacing: 26-100mm
2) Core Wire
Material: Electro Galvanized Wire, Hot-dipped Galvanized Wire, Stainless Steel Wire
Wire Diameter: 2.5mm
3) PVC Coating
Concertina Barbed Wire can also be coated by PVC, so that it has higher corrosion resistance and is more beautiful. Green color is commonly used, and other colors can be customized according to customers’ requirements.

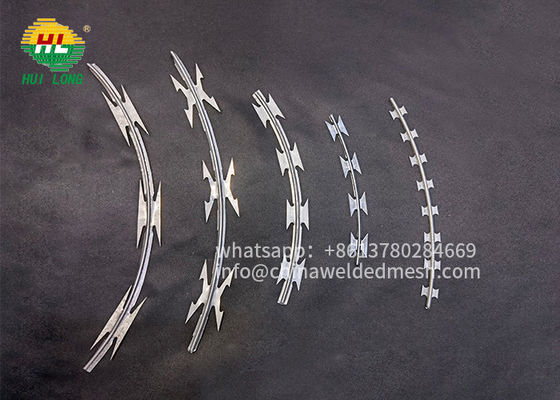

COMMON BLADE TYPES
1) BTO (Barbed Tape Obstacle): BTO-10, BTO-22, BTO-30;
2) CBT (Concertina Barbed Tape): CBT-60, CBT-65.
SPECIFICATIONS
Razor Blade Type and Specification | ||||||
Reference Number |
Blade Style
|
Thickness (mm) |
Wire Dia. (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb Spacing (mm) |
BTO-10 | Please see the above pictures | 0.5±0.05 | 2.5±0.1 | 10±1 | 15±1 | 25±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 35±1 | |
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 50±1 | |
CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 31±1 | 100±2 | |
CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Outside Diameter | No. of Loops |
Standard Length per Coil |
Type | Notes |
300mm | 33 | 4-6m | CBT-60, CBT-65 | Single Coil |
450mm | 33 | 7-8 m | CBT-60, CBT-65 | Single Coil |
500mm | 56 | 12-13m | CBT-60, CBT-65 | Single Coil |
700mm | 56 | 13-14m | CBT-60, CBT-65 | Single Coil |
960mm | 56 | 14-15m | CBT-60, CBT-65 | Single Coil |
450mm | 56 | 8-9m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
500mm | 56 | 9-10m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
600mm | 56 | 10-11m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
700mm | 56 | 10-12m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
800mm | 56 | 11-13m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
900mm | 56 | 12-14m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
980mm | 56 | 14-16m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
1) Raw Material —— Galvanized Steel or Stainless Steel Plate + Galvanized Steel or Stainless Steel Wire.
2) Machine Punching —— Steel sheet is punched into sharp barbs with punching machine.
3) Machine Forming —— Core wire and razor plate
4) Clip Installation—— We use clip gun to install C-ring clip, to make it firm
5) PVC Coating—— RAL 6005 Green color or any other colors in RAL Color System are all available.
6) Packaging —— Packaged with waterproof paper + woven bag, corrugated carton, or pallet. Special requirements can be customized.
PACKAGING SYSTEM
Because Concertina Barbed Wire has sharp blades, it is necessary to pay more attention to the way of packaging.
1) Generally, Razor Barbed Wire will be made into a coil, and then we use waterproof paper and woven bag for packaging. These coils can be directly loaded into container. Or, 10-20 coils will be compressed together with steel belts to make it stronger. In contrast, the loading quantity of compressed package is much more than what is in loose package.
2) Small Corrugated Box packaging, Razor Barbed Wire coils can be put into small pieces of paper boxes separately, this method is mainly used for supplying supermarkets or stores which directly facing the end users.
3) Corrugated Carton packaging, corrugated cartons can be customized according to customer requirements, and then 3-5 coils of razor wire are stacked into one carton, separated by cardboard in the middle.
4) Pallet packaging, compressed Razor Barbed Wire can also be packaged with plastic film, packing belt and pallet.
5) In addition, according to customer needs, we can also carry out exclusive customized services.
WAREHOUSE STORAGE SYSTEM
The production workshop of Concertina Barbed Wire occupies an area of 5,000 square meters, with 5 punching machines, 20 wire wrapping machines, 50 automatic pneumatic clip guns for clip installation, 6 workbenches for manual buckle. There are 68 workers in total, including 1 Warehouse Manager and 2 Quality Inspectors. In the process of production, quality inspectors will check on site to ensure the quality of products. At the same time, there is exclusive storage space for raw materials and finished products with special care. We use pneumatic clip gun to install C-ring clips. Faster and stronger. The air press: 90-120psi(6-8 bars, 60-80kg/cm).
QUALITY CONTROL SYSTEM
Quality management is a part we consider very important, because it directly determines whether the customer is satisfied or not. From raw material storage, machine maintenance, workers' qualifications, technical standards, production process, to product inspection, packaging and transportation, we ensure quality control to meet customers' requirements at the most economical level. At the same time, we have a perfect after-sales service system, efficient for you to solve any problems in the process of order.
INTERNATIONAL STANDARD FOR RAZOR BARBED WIRE
ASTM F1910-98(2018)---Standard Specification for Long Barbed Tape Obstacles
ASTM F1379-95(2018)---Standard Terminology Relating to Barbed Tape
ASTM F1911-05(2019)---Standard Practice for Installation of Barbed Tape
QUALITY INSPECTION BEFORE LOADING
Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.
AFTER-SALES SERVICE SYSTEM
1) After the order is confirmed, we will update the production schedule of the goods in time.
2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.
3) If any quality problem is found before delivery, we will deal with it in time.
4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.
FREQUENTLY ASKED QUESTIONS
Q1: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
Q2: What’s the MOQ?
MOQ is 50 coils for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q3: How to guarantee the quality of products?
We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
