Hot Dipped Galvanised Razor Wire In Straight Lines Bto-22 Bto-30 Cbt-65
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | BTO-22 BTO-30 CBT-65 Hot Dipped Galvanized Razor Wire In Straight Lines | Material: | Galvanized Steel. Stainless Steel Is Also Available |
|---|---|---|---|
| Wire Diameter: | 2.0, 2.5, 2.8mm | Coil Diamter: | 300, 450, 680, 730, 900mm |
| Clips Per Spirl: | 0, 3, 5. | Length: | 8,10m As Your Request |
| Tensile: | 1400-1500MPA | International Standard: | ASTM |
| Packaging: | In Coils, In Carton, On Pallet, Etc. | Application: | For High Security, Private Garden, Barrier Fence, Etc. |
| Highlight: | hot dipped galvanised razor wire,cbt65 galvanised razor wire,bto-30 hot dipped galvanized razor wire |
||
Hot Dipped Galvanised Razor Wire In Straight Lines BTO-22 BTO-30 CBT-65
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | BTO-22 BTO-30 CBT-65 Hot Dipped Galvanized Razor Wire in Straight Lines |
| Material | Galvanized Steel. Stainless Steel is also available |
| Wire Diameter | 2.0, 2.5, 2.8mm |
| Coil Diameter | 300, 450, 680, 730, 900mm |
| Clips per Spiral | 0, 3, 5 |
| Length | 8,10m as your request |
| Tensile | 1400-1500MPA |
| International Standard | ASTM |
| Packaging | in Coils, in Carton, on Pallet, etc. |
| Application | for High Security, Private Garden, Barrier Fence, etc. |
Product Description

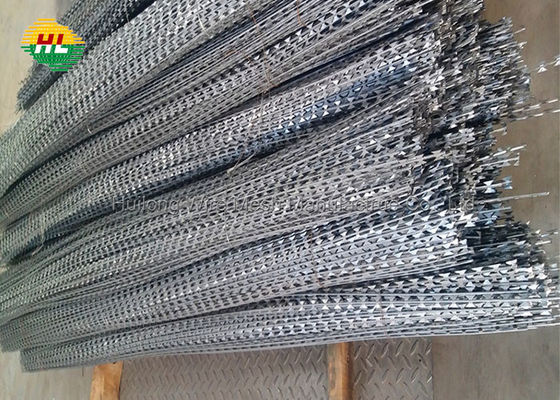

Razor Wire in Straight Lines consists of single razor wires stretched straight, typically installed in multiple rows from top to bottom. This economical and practical security solution can be combined with Electronic Fence systems for enhanced protection in commercial buildings and private yards.
As the simplest type of concertina razor wire, Straight Lines Razor Wire installs similarly to barbed wire while providing superior security. Its sharp razor blades create an effective deterrent when used with other mesh fences like Chain Link, Welded Wire Mesh, or 358 Security Fence.
Available Razor Wire Fence Types

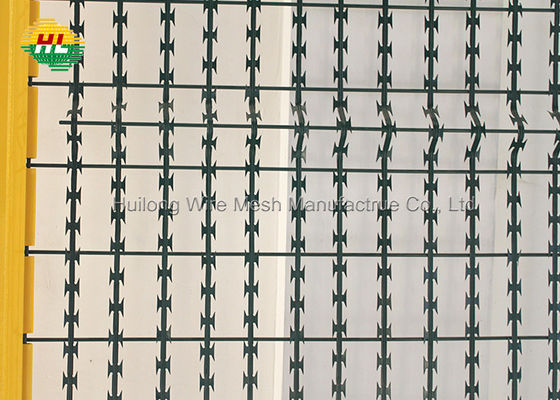

Welded Concertina Razor Wire Fence
This fence features razor wires straightened and welded into rectangular or diamond shapes, available in galvanized or PVC-coated finishes. The simple structure offers high security and can be customized with frames to create integrated fence panels.
Flat Loop Concertina Razor Wire Fence
Designed for installation atop existing gates or fences to increase height and security levels.
Triple Strand Concertina Razor Wire
Three coils connected with steel wires and buckles form this high-intensity defense system, primarily used in border areas. The complex structure provides superior security.
Technical Specifications
Raw Materials
- Blade: Galvanized Steel or Stainless Steel (0.5mm thickness)
- Core Wire: Electro Galvanized, Hot-dipped Galvanized, or Stainless Steel Wire (2.5mm diameter)
- PVC Coating: Available in standard green or custom RAL colors for enhanced corrosion resistance
Common Blade Types
- BTO (Barbed Tape Obstacle): BTO-10, BTO-22, BTO-30
- CBT (Concertina Barbed Tape): CBT-60, CBT-65
Detailed Specifications
| Reference Number | Blade Style | Thickness (mm) | Wire Dia. (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
|---|---|---|---|---|---|---|
| BTO-10 | See pictures | 0.5±0.05 | 2.5±0.1 | 10±1 | 15±1 | 25±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 35±1 | |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 50±1 | |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 31±1 | 100±2 | |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
|---|---|---|---|---|
| 300mm | 33 | 4-6m | CBT-60, CBT-65 | Single Coil |
| 450mm | 33 | 7-8 m | CBT-60, CBT-65 | Single Coil |
| 500mm | 56 | 12-13m | CBT-60, CBT-65 | Single Coil |
| 700mm | 56 | 13-14m | CBT-60, CBT-65 | Single Coil |
| 960mm | 56 | 14-15m | CBT-60, CBT-65 | Single Coil |
| 450mm | 56 | 8-9m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 500mm | 56 | 9-10m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 600mm | 56 | 10-11m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 700mm | 56 | 10-12m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 800mm | 56 | 11-13m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 900mm | 56 | 12-14m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
| 980mm | 56 | 14-16m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
Manufacturing Process
- Raw Material: Galvanized/Stainless Steel Plate + Wire
- Machine Punching: Steel sheet punched into sharp barbs
- Machine Forming: Core wire and razor plate assembly
- Clip Installation: C-ring clips installed with pneumatic clip gun (90-120psi)
- PVC Coating: Optional RAL color coating
- Packaging: Custom packaging solutions available
Packaging Options
- Coil Packaging: Waterproof paper + woven bag, with optional steel belt compression
- Small Corrugated Box: Individual coil packaging for retail
- Corrugated Carton: 3-5 coils per carton with cardboard separation
- Pallet Packaging: Compressed coils with plastic film and packing belts
- Custom Solutions: Tailored to specific requirements
Quality Assurance
Our 5,000 sqm production facility features 5 punching machines, 20 wire wrapping machines, and 50 pneumatic clip guns, staffed by 68 workers including dedicated quality inspectors. We maintain strict quality control throughout production and storage processes.
International Standards
- ASTM F1910-98(2018) - Long Barbed Tape Obstacles
- ASTM F1379-95(2018) - Barbed Tape Terminology
- ASTM F1911-05(2019) - Barbed Tape Installation
Quality Inspection
All products undergo rigorous inspection before loading, with documentation provided to customers. Our after-sales service guarantees response within 24 hours and resolution within 72 hours for any issues.
Frequently Asked Questions
Q: Are you a factory or trading company?
We are an 18-year manufacturing facility with our own trading company, combining production control with professional international trade services.
Q: What's the MOQ?
Minimum order quantity is 50 coils for standard products (no MOQ for samples). Custom products require negotiation.
Q: How do you guarantee product quality?
Our Quality Assurance Department implements strict inspections at every production stage, following international standards. We provide comprehensive after-sales support with guaranteed response times.
Company History
1989: HUILONG company established in Anping Wire Mesh World Supermarket
1994: Founded Anping HUILONG wire mesh factory
2004: Became joint venture "ANPING HUILONG WIRE MESH MANUFACTURE CO., LTD."
2008: Expanded to European markets
2009: Built new factory in Taicheng industry park (25,000㎡ workshop)
2011: Exported to over 100 countries
2020: Established Concertina Razor Wire Factory (7,000㎡)
2021: Expanded domestic trade team with 600㎡ office space
