730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security
730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security

Large Image :  730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: CRWF-HL002
Payment & Shipping Terms:
Minimum Order Quantity: 50 COILS
Price: USD5.0-USD15.0/KG
Packaging Details: IN COILS WITH WATERPROOF PAPER+WOVEN BAG; CARTON BOX; PALLET, ETC.
Delivery Time: 7 DAYS AS SOON AS GET CUSTOMERS L/C OR DEPOSIT.
Payment Terms: L/C, T/T AT SIGHT
Supply Ability: 40,000 KG PER DAY
Detailed Product Description
Product Name: 730mm Heavy Galvanized Triple Strand Concertina Razor Wire Fence For Barrier High Security Material: Galvanized Steel, Stainless Steel
Wire Diameter: 2.0, 2.5, 2.8mm Coil Diamter: 300, 450, 680, 730, 900mm
Clips Per Spirl: 0, 3, 5. Length: 8,10m As Your Request
Tensile: 1400-1500MPA International Standard: ASTM
Packaging: In Coils, In Carton, On Pallet, Etc. Application: For High Security, Private Garden, Barrier Fence, Etc.
Highlight:

730mm Triple Strand Concertina Wire

,

Galvanized 730mm Triple Strand Concertina Wire

,

High Security triple standard concertina wire

730mm Heavy Galvanized Triple Strand Concertina Razor Wire Fence for Barrier High Security

For today's security and border defense, Concertina Razor Wire plays an important role in this field. Of course, the basic manufacturing process of Concertina Razor Wire is the same. After further processing, the installation structure of Concertina Razor Wire can be changed to make it have more styles and more usages. Triple Strand Concertina Razor Wire, is a new installation type of Concertina Razor Wire, Its structure is relatively complex. Three coils of Concertina Razor Wire are connected together through steel wires and buckles, forming a three ring shape. The steel wire rope is also used to limit its position so that it can be installed at a fixed distance. Then a stretch frame was added to simplify its installation. Because of its complex structure, its security defense ability is relatively higher. It is mainly used in some border areas as a high-intensity defense system.



We have the following Concertina Razor Wire Fence types for you to choose. Please contact us if you have further requirements.



Straight Lines Concertina Razor Wire Fence

Straight Lines Concertina Razor Wire is actually the simplest type among all the concertina razor wires. It is installed similarly with the Barbed Wires and actually can serve as an alternative to Barbed Wires. Is is usually used as additional security fence together with other mesh fences, such as Chain Link Fence, Welded Wire Mesh Fence, 358 Security Fence, etc. Due to its sharp razor, Straight Lines Concertina Razor Wire Fence will easily form a deterrent structure without entering. Due to their higher quality and strength, Concertina Razor Wires cost more than Barbed Wires. However, they are worth the increase in price due to the sharp razor blade design and the wire’s high tensile nature.

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 0



Welded Concertina Razor Wire Fence

Firstly, Concertina Razor Wires are produced as per the regular procedure. Secondly, the razor wires are straightened into straight lines. Thirdly, the lines are welded into rectangle or diamond shapes to form a fence structure. For finish, galvanized or PVC coated are both available. Simple structure and high security are the two main advantages of this wire mesh fence. Usually the fence structure will be welded by a frame to form a integrated fence panel. It can be used alone as private guarding, security defending, anti theft or intruding fences with high security. Support customization as per your requirements.

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 1



Flat Loop Concertina Razor Wire Fence

Flat Loop Concertina Razor Wire Fence is another special-shaped application of Concertina Razor Wire. It can be directly installed on the top of other gates or fences to add the original heights and also the security level is accordingly updated.

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 2

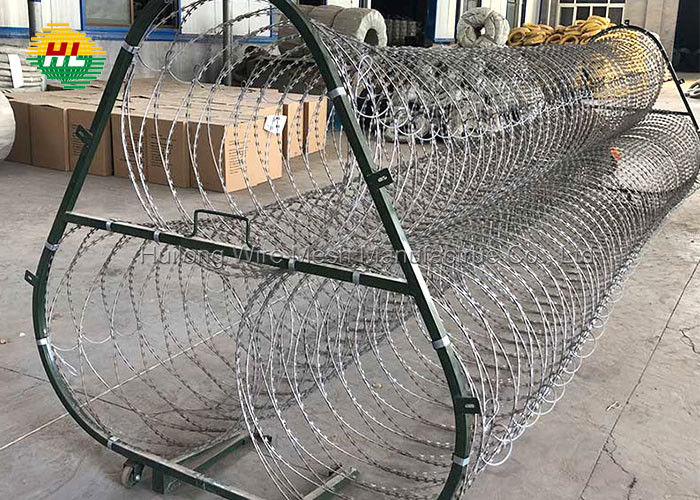

Triple Strand Concertina Razor Wire

Triple Strand Concertina Razor Wire, is a new installation type of Concertina Razor Wire, Its structure is relatively complex. Three coils of Concertina Razor Wire are connected together through steel wires and buckles, forming a three ring shape. The steel wire rope is also used to limit its position so that it can be installed at a fixed distance. Then a stretch frame was added to simplify its installation. Because of its complex structure, its security defense ability is relatively higher. It is mainly used in some border areas as a high-intensity defense system.

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 3



RAW MATERIALS

1) Blade

Material: Galvanized Steel or Stainless Steel

Thickness: 0.5mm

Barb Length: 12-65mm

Barb Spacing: 26-100mm



2) Core Wire

Material: Electro Galvanized Wire, Hot-dipped Galvanized Wire, Stainless Steel Wire

Wire Diameter: 2.5mm



3) PVC Coating

Razor Barbed Wire can also be coated by PVC, so that it has higher corrosion resistance and is more beautiful. Green color is commonly used, and other colors can be customized according to customers’ requirements.

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 4



COMMON BLADE TYPES

1) BTO (Barbed Tape Obstacle):

    BTO-10, BTO-22, BTO-30;

2) CBT (Concertina Barbed Tape):

    CBT-60, CBT-65.

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 5

SPECIFICATIONS



Razor Blade Type and Specification
Reference Number

Blade Style



Thickness

(mm)

Wire Dia.

(mm)

Barb Length

(mm)

Barb Width

(mm)

Barb Spacing

(mm)

BTO-10 Please see the above pictures 0.5±0.05 2.5±0.1 10±1 15±1 25±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 35±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 50±1
CBT-60 0.5±0.05 2.5±0.1 60±2 31±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2





Outside Diameter No. of Loops

Standard Length

per Coil

Type Notes
300mm 33 4-6m CBT-60, CBT-65 Single Coil
450mm 33 7-8 m CBT-60, CBT-65 Single Coil
500mm 56 12-13m CBT-60, CBT-65 Single Coil
700mm 56 13-14m CBT-60, CBT-65 Single Coil
960mm 56 14-15m CBT-60, CBT-65 Single Coil
450mm 56 8-9m (3 clips) BTO-10, BTO-22, BTO-30 Cross Type
500mm 56 9-10m (3 clips) BTO-10, BTO-22, BTO-30 Cross Type
600mm 56 10-11m (3 clips) BTO-10, BTO-22, BTO-30 Cross Type
700mm 56 10-12m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type
800mm 56 11-13m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type
900mm 56 12-14m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type
980mm 56 14-16m (5 clips) BTO-10, BTO-22, BTO-30 Cross Type

MASS PRODUCTION PROCEDURE

1) Raw Material —— Galvanized Steel or Stainless Steel Plate + Galvanized Steel or Stainless Steel Wire.

2) Machine Punching ——  Steel sheet is punched into sharp barbs with punching machine.

3) Machine Forming —— Core wire and razor plate

4) Clip Installation—— We use clip gun to install C-ring clip, to make it firm

5) PVC Coating—— RAL 6005 Green color or any other colors in RAL Color System are all available.

6) Packaging —— Packaged with waterproof paper + woven bag, corrugated carton, or pallet. Special requirements can be customized.

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 6



730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 7



PACKAGING SYSTEM

Because Concertina Barbed Wire has sharp blades, it is necessary to pay more attention to the way of packaging.

1) Generally, Razor Barbed Wire will be made into a coil, and then we use waterproof paper and woven bag for packaging. These coils can be directly loaded into container. Or, 10-20 coils will be compressed together with steel belts to make it stronger. In contrast, the loading quantity of compressed package is much more than what is in loose package.

2) Small Corrugated Box packaging, Razor Barbed Wire coils can be put into small pieces of paper boxes separately, this method is mainly used for supplying supermarkets or stores which directly facing the end users.

3) Corrugated Carton packaging, corrugated cartons can be customized according to customer requirements, and then 3-5 coils of razor wire are stacked into one carton, separated by cardboard in the middle.

4) Pallet packaging, compressed Razor Barbed Wire can also be packaged with plastic film, packing belt and pallet.

5) In addition, according to customer needs, we can also carry out exclusive customized services.



730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 8



WAREHOUSE STORAGE SYSTEM

The production workshop of Concertina Barbed Wire occupies an area of 5,000 square meters, with 5 punching machines, 20 wire wrapping machines, 50 automatic pneumatic clip guns for clip installation, 6 workbenches for manual buckle. There are 68 workers in total, including 1 Warehouse Manager and 2 Quality Inspectors. In the process of production, quality inspectors will check on site to ensure the quality of products. At the same time, there is exclusive storage space for raw materials and finished products with special care.

We use pneumatic clip gun to install C-ring clips. Air press: 90-120psi (6-8bars, 60-80kg/cm). Faster and stronger.

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 9



730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 10



730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 11



QUALITY CONTROL SYSTEM

Quality management is a part we consider very important, because it directly determines whether the customer is satisfied or not. From raw material storage, machine maintenance, workers' qualifications, technical standards, production process, to product inspection, packaging and transportation, we ensure quality control to meet customers' requirements at the most economical level. At the same time, we have a perfect after-sales service system, efficient for you to solve any problems in the process of order.



International Standard for Razor Barbed Wire

ASTM F1910-98(2018)---Standard Specification for Long Barbed Tape Obstacles

ASTM F1379-95(2018)---Standard Terminology Relating to Barbed Tape

ASTM F1911-05(2019)---Standard Practice for Installation of Barbed Tape



QUALITY INSPECTION BEFORE LOADING

Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.



AFTER-SALES SERVICE SYSTEM

1) After the order is confirmed, we will update the production schedule of the goods in time.

2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.

3) If any quality problem is found before delivery, we will deal with it in time.

4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.



FREQUENTLY ASKED QUESTIONS

Q1: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.



Q2: What’s the MOQ?

MOQ is 50 coils for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.



Q3: How to guarantee the quality of products?

We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.



HUILONG HISTORY

  • In 1989, HUILONG company was established, the original store was located in Anping Wire Mesh World Supermarket;
  • In 1994, Anping HUILONG wire mesh factory was founded, located in Nanhuan East Road, mainly for the domestic market and produce Welded Wire Mesh Roll, Welded Wire Mesh Panel, and Wire Mesh Fence, etc.;
  • In 1998, ethnic Chinese from Philippines visited us and confirmed the intention of cooperation;
  • In 2004, Philippines invested 1 million funds, HUILONG Wire Mesh became a joint venture company named as "ANPING HUILONG WIRE MESH MANUFACTURE CO., LTD.";
  • In 2008, HUILONG wire mesh international sales department successfully obtained European market, establishing a European trading circle based on France, Belgium and Italy;
  • In 2009, we obtained 50 acres land in Taicheng industry park, and built up a brandnew factory. The workshop occupies 25,000㎡, warehouse 10000㎡, with total 300 sales representatives and workers;
  • In 2011, our company exported to more than one hundred countries, cooperated with more than 200 customers;
  • In May 2012, Shijiazhuang international trade branch office was set up;
  • In 2013, we purchased 300㎡ of office building in Shijiazhuang;
  • In 2015, Anping HUILONG Wire Mesh Manufacture Co., Ltd joined the Anping Wire Mesh Chamber of Commerce, becoming an important part of it;
  • In 2016, we set up a new foreign trade team of 35 people, with an office area of 300 square meters;
  • In 2017-2018, our wire mesh products were well sold and well recognized in the markets of America, Africa and Southeast Asia;
  • In 2019, we registered AIBUER TRADING CO., LTD. and integrated more factory resources, enriched product categories, to provide customers with more valuable services;
  • In 2020, HUILONG invested and established Concertina Razor Wire Factory, which covers an area of 7,000 square meters;
  • In 2021, the factory department has established a domestic trade team of 30 people, with a new office area of 600 square meters.

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 12

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 13

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 14

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 15

730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 16730mm Triple Strand Concertina Wire Heavy Galvanized For Barrier High Security 17
