Product Details:
Payment & Shipping Terms:
|
Product Name: | BTO-22 2.5mm Blade Galvanized Straight Lines Concertina Razor Wire Fence For Residential Houses | Material: | Galvanized Steel, Stainless Steel |
---|---|---|---|
Wire Diameter: | 2.0, 2.5, 2.8mm | Coil Diamter: | 300, 450, 680, 730, 900mm |
Clips Per Spirl: | 0, 3, 5. | Length: | 8,10m As Your Request |
Tensile: | 1400-1500MPA | International Standard: | ASTM |
Packaging: | In Coils, In Carton, On Pallet, Etc. | Application: | For High Security, Private Garden, Barrier Fence, Etc. |
High Light: | 2.5mm Blade Concertina Razor Wire Fence,Galvanized Concertina Razor Wire Fence,2.5mm galvanized razor wire |
For today's security and border defense, Concertina Razor Wire plays an important role in this field. Of course, the basic manufacturing process of Concertina Razor Wire is the same. After further processing, the installation structure of Concertina Razor Wire can be changed to make it have more styles and more usages. Straight Lines Concertina Razor Wire Fence s one of these special types and it should be the most simple one. This is an alternative choice for Barbed Wire with sharper razor blade and. It is widely used on top of some other fences to add security. It is also a perfect match with 358 Security Fence, Chain Link Fence, 3D Curved Wire Mesh Fence. It is widely used in residential areas for preventing thievies.
We have the following Concertina Razor Wire Fence types for you to choose. Please contact us if you have further requirements.

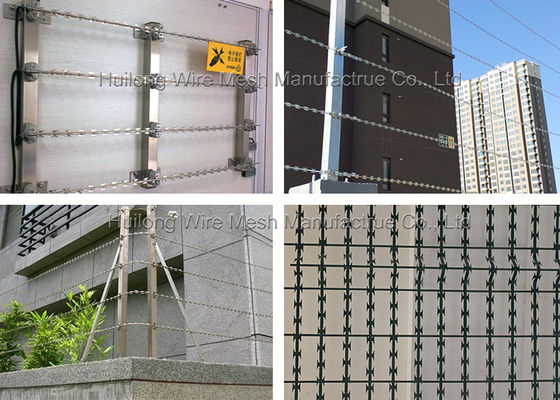

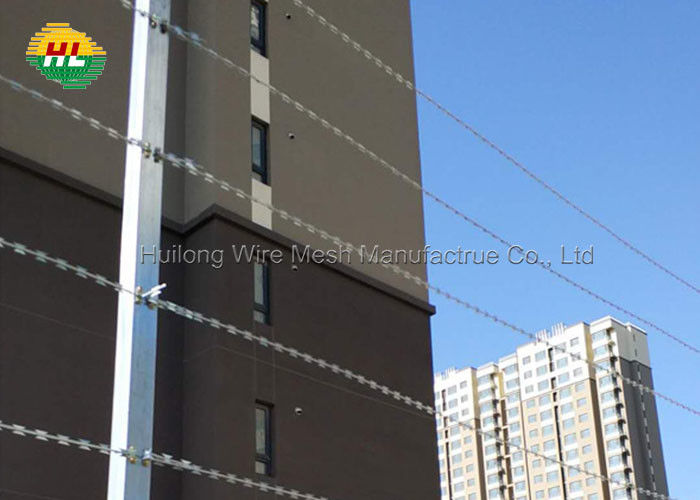

Straight Lines Concertina Razor Wire Fence
Straight Lines Concertina Razor Wire is actually the simplest type among all the concertina razor wires. It is installed similarly with the Barbed Wires and actually can serve as an alternative to Barbed Wires. Is is usually used as additional security fence together with other mesh fences, such as Chain Link Fence, Welded Wire Mesh Fence, 358 Security Fence, etc. Due to its sharp razor, Straight Lines Concertina Razor Wire Fence will easily form a deterrent structure without entering. Due to their higher quality and strength, Concertina Razor Wires cost more than Barbed Wires. However, they are worth the increase in price due to the sharp razor blade design and the wire’s high tensile nature.
Welded Concertina Razor Wire Fence

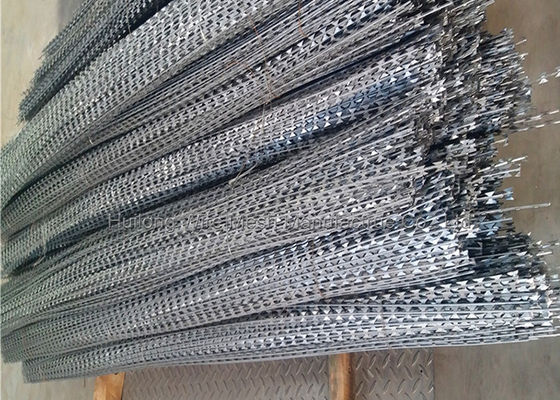

Firstly, Concertina Razor Wires are produced as per the regular procedure. Secondly, the razor wires are straightened into straight lines. Thirdly, the lines are welded into rectangle or diamond shapes to form a fence structure. For finish, galvanized or PVC coated are both available. Simple structure and high security are the two main advantages of this wire mesh fence. Usually the fence structure will be welded by a frame to form a integrated fence panel. It can be used alone as private guarding, security defending, anti theft or intruding fences with high security. Support customization as per your requirements.
Flat Loop Concertina Razor Wire Fence
Flat Loop Concertina Razor Wire Fence is another special-shaped application of Concertina Razor Wire. It can be directly installed on the top of other gates or fences to add the original heights and also the security level is accordingly updated.
Triple Strand Concertina Razor Wire
Triple Strand Concertina Razor Wire, is a new installation type of Concertina Razor Wire, Its structure is relatively complex. Three coils of Concertina Razor Wire are connected together through steel wires and buckles, forming a three ring shape. The steel wire rope is also used to limit its position so that it can be installed at a fixed distance. Then a stretch frame was added to simplify its installation. Because of its complex structure, its security defense ability is relatively higher. It is mainly used in some border areas as a high-intensity defense system.
RAW MATERIALS
1) Blade
Material: Galvanized Steel or Stainless Steel
Thickness: 0.5mm
Barb Length: 12-65mm
Barb Spacing: 26-100mm
2) Core Wire
Material: Electro Galvanized Wire, Hot-dipped Galvanized Wire, Stainless Steel Wire
Wire Diameter: 2.5mm
3) PVC Coating
Razor Barbed Wire can also be coated by PVC, so that it has higher corrosion resistance and is more beautiful. Green color is commonly used, and other colors can be customized according to customers’ requirements.
COMMON BLADE TYPES
1) BTO (Barbed Tape Obstacle):
BTO-10, BTO-22, BTO-30;
2) CBT (Concertina Barbed Tape):
CBT-60, CBT-65.
SPECIFICATIONS
Razor Blade Type and Specification | ||||||
Reference Number |
Blade Style
|
Thickness (mm) |
Wire Dia. (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb Spacing (mm) |
BTO-10 | Please see the above pictures | 0.5±0.05 | 2.5±0.1 | 10±1 | 15±1 | 25±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 35±1 | |
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 50±1 | |
CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 31±1 | 100±2 | |
CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Outside Diameter | No. of Loops |
Standard Length per Coil |
Type | Notes |
300mm | 33 | 4-6m | CBT-60, CBT-65 | Single Coil |
450mm | 33 | 7-8 m | CBT-60, CBT-65 | Single Coil |
500mm | 56 | 12-13m | CBT-60, CBT-65 | Single Coil |
700mm | 56 | 13-14m | CBT-60, CBT-65 | Single Coil |
960mm | 56 | 14-15m | CBT-60, CBT-65 | Single Coil |
450mm | 56 | 8-9m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
500mm | 56 | 9-10m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
600mm | 56 | 10-11m (3 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
700mm | 56 | 10-12m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
800mm | 56 | 11-13m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
900mm | 56 | 12-14m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
980mm | 56 | 14-16m (5 clips) | BTO-10, BTO-22, BTO-30 | Cross Type |
1) Raw Material —— Galvanized Steel or Stainless Steel Plate + Galvanized Steel or Stainless Steel Wire.
2) Machine Punching —— Steel sheet is punched into sharp barbs with punching machine.
3) Machine Forming —— Core wire and razor plate
4) Clip Installation—— We use clip gun to install C-ring clip, to make it firm
5) PVC Coating—— RAL 6005 Green color or any other colors in RAL Color System are all available.
6) Packaging —— Packaged with waterproof paper + woven bag, corrugated carton, or pallet. Special requirements can be customized.
PACKAGING SYSTEM
Because Concertina Barbed Wire has sharp blades, it is necessary to pay more attention to the way of packaging.
1) Generally, Razor Barbed Wire will be made into a coil, and then we use waterproof paper and woven bag for packaging. These coils can be directly loaded into container. Or, 10-20 coils will be compressed together with steel belts to make it stronger. In contrast, the loading quantity of compressed package is much more than what is in loose package.
2) Small Corrugated Box packaging, Razor Barbed Wire coils can be put into small pieces of paper boxes separately, this method is mainly used for supplying supermarkets or stores which directly facing the end users.
3) Corrugated Carton packaging, corrugated cartons can be customized according to customer requirements, and then 3-5 coils of razor wire are stacked into one carton, separated by cardboard in the middle.
4) Pallet packaging, compressed Razor Barbed Wire can also be packaged with plastic film, packing belt and pallet.
5) In addition, according to customer needs, we can also carry out exclusive customized services.
WAREHOUSE STORAGE SYSTEM
The production workshop of Concertina Barbed Wire occupies an area of 5,000 square meters, with 5 punching machines, 20 wire wrapping machines, 50 automatic pneumatic clip guns for clip installation, 6 workbenches for manual buckle. There are 68 workers in total, including 1 Warehouse Manager and 2 Quality Inspectors. In the process of production, quality inspectors will check on site to ensure the quality of products. At the same time, there is exclusive storage space for raw materials and finished products with special care.
We use pneumatic clip gun to install C-ring clips. Air press: 90-120psi (6-8bars, 60-80kg/cm). Faster and stronger.
QUALITY CONTROL SYSTEM
Quality management is a part we consider very important, because it directly determines whether the customer is satisfied or not. From raw material storage, machine maintenance, workers' qualifications, technical standards, production process, to product inspection, packaging and transportation, we ensure quality control to meet customers' requirements at the most economical level. At the same time, we have a perfect after-sales service system, efficient for you to solve any problems in the process of order.
International Standard for Razor Barbed Wire
ASTM F1910-98(2018)---Standard Specification for Long Barbed Tape Obstacles
ASTM F1379-95(2018)---Standard Terminology Relating to Barbed Tape
ASTM F1911-05(2019)---Standard Practice for Installation of Barbed Tape
QUALITY INSPECTION BEFORE LOADING
Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.
AFTER-SALES SERVICE SYSTEM
1) After the order is confirmed, we will update the production schedule of the goods in time.
2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.
3) If any quality problem is found before delivery, we will deal with it in time.
4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.
FREQUENTLY ASKED QUESTIONS
Q1: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
Q2: What’s the MOQ?
MOQ is 50 coils for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q3: How to guarantee the quality of products?
We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.
