Product Details:
Payment & Shipping Terms:
|

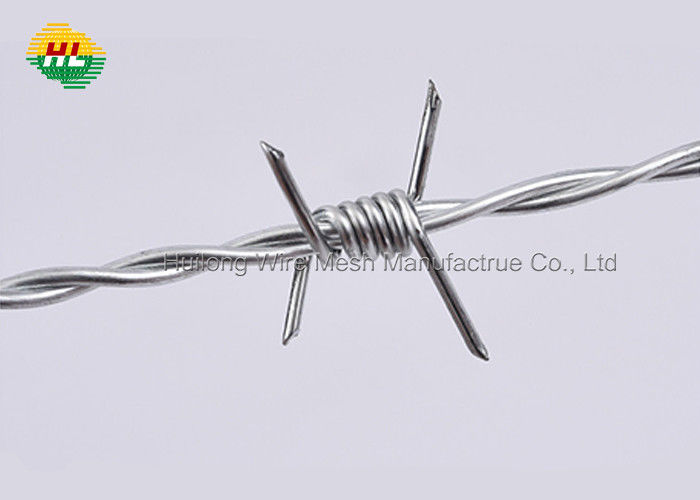

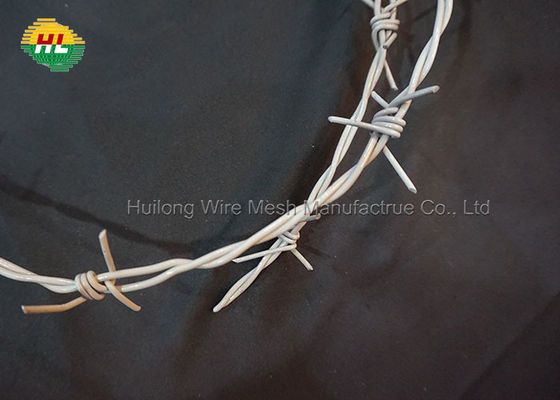

Features: | Beautiful Appearance, High Tensile Strength, Add More Security, Etc. | Product Name: | 14 Gauge Military Grade Barb Wire Fence, Barbed Wire Roll Fence Multiple Use |
---|---|---|---|
Material: | Galvanized Iron Wire; PVC Coated Iron Wire In Green, Blue, Gray And Any Other Colors | Wire Diameter: | 14 Gauge |
Barb Length: | 1.5-3cm | Barb Spacing: | 7.5-15cm |
Zinc Coating: | 30-200g/sqm | Waeving Type: | Normal Twist, Reverse Twist |
Coil Length: | 100m, 150m, 200m, 250m, 500m, Etc. | Coil Weight: | 8kg, 10kg, 15kg, 20kg, 25kg/coil |
Color: | Silver/Galvanized, Dark Green, Gray, Or As Per Your Request | Packaging: | In Bulk; On Wooden Pallet |
High Light: | Military Grade Galvanized Barbed Wire,Multiple Use Galvanized Barbed Wire,14 Gauge military barb wire |
High Tensile Barbed Wire, 4-Point, 5' Apart, 1320' here at PlumbersStock. Keep critters in and predators out with this barbed wire. makes products that we're proud to carry. Make sure you have the right part number, and if you aren't certain, try contacting us.
As a manufacturer, we suggest, if your fencing project calls for a tough temporary fencing solution, HUILONG’s High Tensile 18g Light Duty Barbed Wire has you covered. It is of high quality and sharp barbs. With 5 inch spacing and 4-point barbs, it’s an effective, efficient short-term fencing solution.
SPECIFICATIONS
GALVANIZED BARBED WIRE | ||||
Line Wire and Barb Wire Diameter (BWG) |
Approximate Length per Kilogram in meter | |||
Barbs Spacing 3'' | Barbs Spacing 4'' | Barbs Spacing 5'' | Barbs Spacing 6'' | |
12 x 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12 x 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12.5 x 12.5 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12.5 x 14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13 x 13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13 x 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13.5 x 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14 x 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14.5 x 14.5 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15 x 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15.5 x 15.5 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
FEATURES
High security
Long service life
Good rust-resistance ability
Anti-climbing and anti-theft
MASS PRODUCTION PROCEDURE
Producing Galvanized Barbed Wire is relatively simple. It is produced by an automatic machine, through which the line wire and the barb wire are twisted together and then rolled into a coil. See the pictures below. The speed of the machine is fast, so the production capacity is also excellent.
1) Raw Material Preparation----High quality galvanized iron wire
2) Machine Weaving or twisting
3) PVC Coating (Color as per requirements)
4) Packaging
5) Container Loading
PACKAGING DETAILS

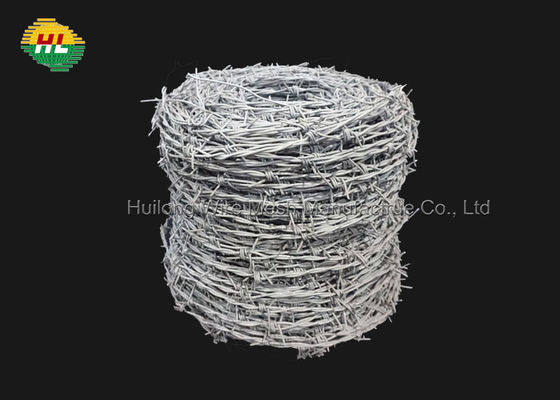

Barbed Wire is usually made into coils. For container loading, we have bulk loading and wooden pallet loading. Our packaging will ensure the Barbed Wire not being damaged during storage and shipment. According to the customer’s instruction, we will also put the label paper into the packaging. There will be a certain product description on the label paper, representing product specifications, so that you can be clear about the product information. If you have other special requirements, for example your own label, we can also customize the packaging according to your requirements. In a word, if you have any requirements, please come forward and we will give you the best solution.
APPLICATIONS
Galvanized Barbed Wire is widely used for the separation and protection of the boundary of grassland, railway, highway, prison, private field, etc. It can also be used on the top of other types of fences, such as Chain Link Fence, Welded Wire Mesh Fence, Concertina Barbed Wire, etc., to add security in your private property.
