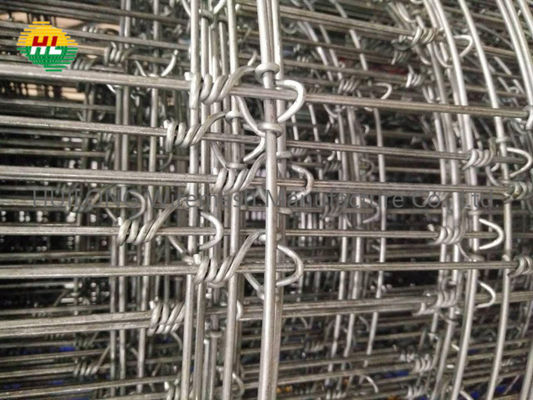

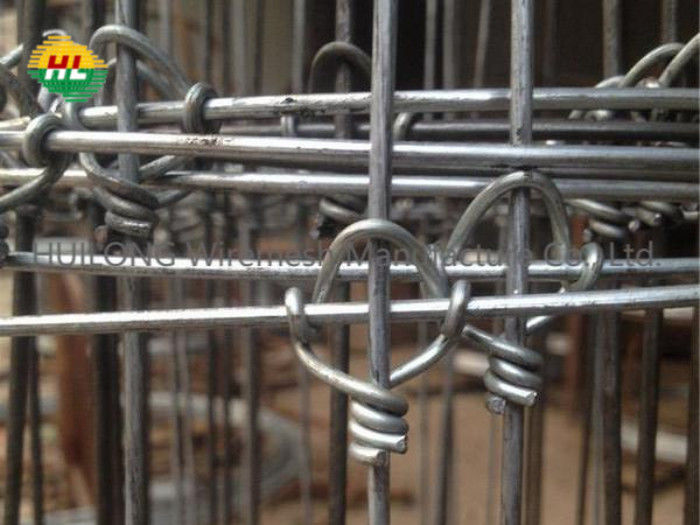

2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength

I'm Online Chat Now
Certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
China Anping Huilong Wire Mesh Manufacture Co., Ltd certification
Not only your good products, but also your good after-sale services impressed me. Hope for more cooperations.

—— Michael

I ordered 3000 rolls of Welded Wire Mesh, and found that 3 rolls were damaged during transportation, but the factory compensated me within 24 hours. Overall, it is recommended.

—— Peter

It's the third time I buy from Huilong. Because of the Cornavirus, price here is very high, so I was looking for it from China. It's a very happy purchasing experience with Huilong, the quality is nothing different with the supermarket, I use the concertina wire for my fence project. The factory gave me gloves and pliers as a gift. It's worth it.

—— Paul

2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength

2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength
2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength 2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength

Large Image :  2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUILONG
Certification: CE CERTIFICATE / ISO
Model Number: HJWM-HL009
Payment & Shipping Terms:
Minimum Order Quantity: 100 ROLLS
Price: USD12.00-USD22.00/ROLL
Packaging Details: IN ROLLS WITH PLASTIC FILM/ PLASTIC SHRINK/ WOVEN BAG/ PALLET, ETC.
Delivery Time: 7 DAYS AS SOON AS WE GET CUSTOMER'S L/C OR DEPOSIT.
Payment Terms: L/C, T/T AT SIGHT
Supply Ability: TOTAL 3000ROLLS PER DAY
Detailed Product Description
Product Name: High Tensile 2.4m*50m Galvanized Hinge Joint Wire Mesh Farm Field Fence Wire Deer Fence Material: Galvanized Steel Wire
Fence Style: Woven Wire Roll Length: 50m
Roll Height: 2.4m Edge Wire Diameter: 2.5mm
Inner Wire Diameter: 2mm Application: For Farm Field Fence, Deer Fence, Etc.
High Light:

2.4m*50m Hinge Joint Wire Mesh

,

High Tensile Strength Hinge Joint Wire Mesh

High Tensile 2.4m*50m Galvanized Hinge Joint Wire Mesh Farm Field Fence Wire Deer Fence

Hinge Joint Wire Mesh Fence, also known as Livestock Fencing, is a widely used animal husbandry fence in America, Europe and Australia.

Hinge Joint Wire Mesh Fence generally needs a four-wheeler to tighten the installation, in its top with Barbed Wire. Hinge Joint Wire Mesh Fence has its own matched post, while the general concrete column and wooden stakes are also applicable. In the installation process, attention should be paid to the height of Hinge Joint Wire Mesh Fence off the ground, which can be about 10~30CM above the ground. According to the size of livestock space, it can be customized with special apertures and sizes. Generally speaking, common Hinge Joint Wire Mesh Fence has smaller mesh holes on the bottom and larger mesh holes on the top, creating a gradient effect of the fence. Such a design, not only can save materials, but also can be used for large and small livestock and poultry at the same time.

Hinge Joint Wire Mesh Fence does not require special maintenance, the galvanized layer can guarantee its service life, and the coating surface can be customized according to the environment needs to extend its use time.

FEATURES

1. The Hinge Joint Wire Mesh Fence uses high tensile strength galvanized hinged wire knot, high strength pull force, can withstand the fierce impact of cattle, horses, sheep and other livestock. Safe and reliable.

2.Hinged joint knot fence wire, wave ring surface galvanizing, other parts are taken rust and corrosion prevention, can adapt to the harsh working environment, life of up to 20 years.

3. The hinged joint wire mesh fence adopts the rolling wave process, enhance the elasticity and buffering function.Its allows the fencing to give under pressure and spring back into shape. Can adapt to the deformation of cold and reduced heat expansion. Keep the fence tight always.

4.The structure of hinged joint fence, the maintenance is convenient, the construction cycle is short, the volume is small and the weight is light.

SPECIFICATIONS

Height (mm)

Length (m)

Qty of Horizontal Wire

Spacing of Vertical Wire (mm)

Spacing of Horizontal Wire (mm)

Edge Wire Diameter (mm)

Inner Wire Diameter (mm)

Roll Diameter (mm)

813

50

7

150

102+114+127+140+152+178

2.5

2

280

813

50

8

150

89+89+102+114+127+140+152

2.5

2

280

902

50

8

150

89+102+114+127+140+152+178

2.5

2

280

1016

50

8

150

102+114+127+140+152+178+203

2.5

2

280

1143

50

8

150

114+127+140+152+178+203+229

2.5

2

280

991

50

9

150

89+89+102+114+127+140+152+178

2.5

2

280

1245

50

9

150

102+114+127+140+152+178+203+229

2.5

2

280

1194

50

10

150

89+89+102+114+127+140+152+178+203

2.5

2

280

1334

50

10

150

89+102+114+127+140+152+178+203+229

2.5

2

280

1422

50

11

150

89+89+102+114+127+140+152+178+203+229

2.5

2

280



2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength 0



PRODUCT FEATURES

1. Hinge Joint Wire Mesh Fence uses high tensile strength galvanized hinged wire knot, high strength pull force, can withstand the fierce impact of cattle, horses, sheep and other livestock. Safe and reliable.

2. Hinge Joint Wire Mesh Fence, wave ring surface galvanizing, other parts are taken rust and corrosion prevention, can adapt to the harsh working environment, life of up to 20 years.

3. Hinge Joint Wire Mesh Fence adopts the rolling wave process, enhancing the elasticity and buffering function. It allows the fencing to give under pressure and spring back into shape. Can adapt to the deformation of cold and reduced heat expansion. Keep the fence tight always.

4.The structure of Hinge Joint Wire Mesh Fence, the maintenance is convenient, the construction cycle is short, the volume is small and the weight is light.



MASS PRODUCTION PROCEDURE

2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength 1

2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength 2



PACKAGING DETAILS

1) Nuded Packing, with label inside.

2) Plastic film only, with label inside.

3) Plastic Shrink only, with label inside.

4) Plastic woven bag, with label inside.

5) Wooden Pallet or Iron Pallet: special design to ensure the belts stable.

2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength 3



APPLICATIONS

  • Livestock fencing and confinement.
  • Erosion control silt fence backing.
  • Perimeter and boundary fence.
  • Deer Fencing
  • Horse Fencing
  • Cattle fence
  • Sheep / Goat fence
  • Otter Fencing
  • Poultry Fencing
  • Badger Fencing
  • Grasslands fence
  • Animal husbandry fence
  • Forest areas fence
  • Breeding fence
  • Green belts’fence
  • River embankments fence
  • Road bridges’ fence

2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength 4



RELATED PRODUCTS

1) T Post

T Post is matched and used with Hinge Joint Wire Mesh Fence, which has a steel plate on the top of the post for easier installation.

2) T Post Clip

T Post Clips allow you to easily secure the rolled Hinge Joint Wire Mesh Fence to the T-post tightly.

3) Y Post

Y Post is widely used as post for Farm Fences.

4) Post Driver

Post Driver can be used to help drill the post into ground more easily.

2.4m*50m Hinge Joint Wire Mesh Livestock Fencing With High Tensile Strength 5



FREQUENTLY ASKED QUESTIONS

Q1: Is High Tensile Hinged Joint Knot Fence Different to erect?

While High Tensile Hinged joint knot fencing certainly requires different techniques to erect than mild steel, it is no more difficult. Most farms have access to a post driver that can easily drive in strainers to the required depth. Bending and tying off is simple when using the correct technique.



Q2: Isn’t High Tensile Hinged Joint Knot Fence Expensive?

It is a common misconception that a mild steel hinged joint knot fence will cost less than High Tensile. High Tensile mesh rolls may be more expensive to buy, but this is more than compensated for by the reduced numbers of posts and labour required.

Although HT8/80/15 is the most common spec used for livestock, we also offer a wide variety of specifications to suit different animals and applications. Please contact one of our fencing experts who are on hand to provide you with professional support and advice.



Q3: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.



Q4: Can you offer samples?

Yes, free sample is available according to your request. And we can also ensure that the quality of the sample is the same as that of the mass products.



Q5: How about the payment terms?

T/T (30% deposit in advance) , L/C at sight.



Q6: How about the delivery time?

Within 7-15 days after receiving customer’s deposit or L/C.
