Razor Concertina Wire Galvanised Steel Garden Fence Helical Barbed Wire Coiled Concertina Type Security
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Razor Concertina Wire Galvanised Steel Garden Fence Helical Barbed Wire Coiled Concertina Type Security | Material: | Stainless Steel, Galvanized. |
|---|---|---|---|
| Wire Diameter: | 2.0,2.5,2.8mm | Coil Diamter: | 300,450,500,600,700,900mm |
| Clip Per Spirl: | 3,5,0 | Length: | 8,10m As Your Request |
| Tensile: | 1400-1500MPA | Standard: | ASTM, EN |
| Highlight: | Helical Barbed Wire Concertina Wire,Galvanised Steel Concertina Wire,Garden Fence Concertina Wire |
||

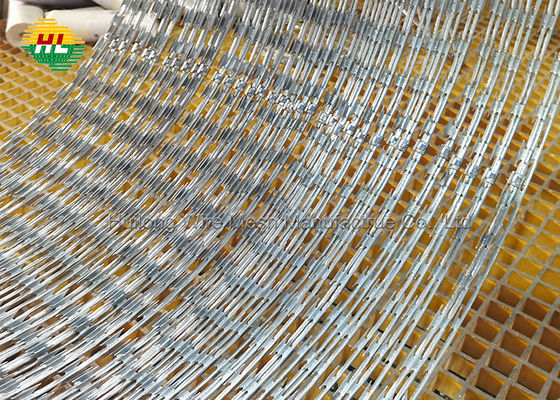

Razor Concertina Wire Galvanised Steel Garden Fence Helical Barbed Wire Coiled Concertina Type Security
| Attribute | Value |
|---|---|
| Product Name | Razor Concertina Wire Galvanised Steel Garden Fence Helical Barbed Wire Coiled Concertina Type Security |
| Material | Stainless steel, galvanized |
| Wire Diameter | 2.0, 2.5, 2.8mm |
| Coil Diameter | 300, 450, 500, 600, 700, 900mm |
| Clip Per Spiral | 3, 5, 0 |
| Length | 8, 10m (customizable) |
| Tensile Strength | 1400-1500MPA |
| Standard | ASTM, EN |
Product Overview
Concertina Barbed Wire is a spring-shaped security barrier made of high-tensile wire spirals that can be stretched to form a dense protective perimeter. Available in various diameters (500mm, 610mm, 750mm, 1000mm, 1050mm), its effectiveness depends on zinc coating quality and spiral count.
Material Specifications
- Blade: Galvanized Steel or Stainless Steel (0.5mm thickness)
- Barb Length: 12-65mm with 26-100mm spacing
- Core Wire: Electro/Hot-dipped Galvanized or Stainless Steel (2.5mm diameter)

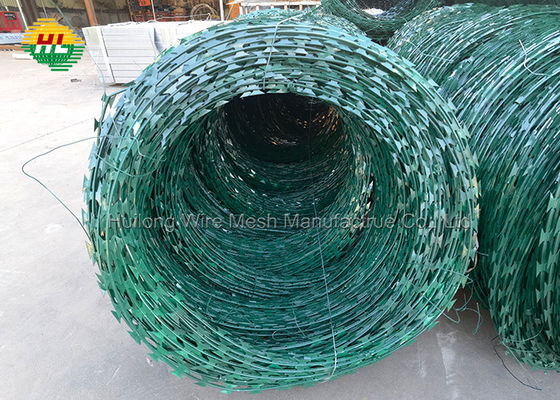

- Optional PVC Coating: Enhances corrosion resistance (standard green, custom colors available)
Technical Specifications
| Coil Diameter | Loops | Clips | Length | Note |
|---|---|---|---|---|
| 300mm | 33 | - | 8-10m | Single coil |
| 450mm | 56 | 3 | 8-10m | Cross type |
| 500mm | 56 | 3 | 9-10m | Cross type |
| 600mm | 56 | 3 | 10-11m | Cross type |
| 700mm | 56 | 5 | 10-12m | Cross type |
| 900mm | 56 | 5 | 12-14m | Cross type |
Manufacturing Process
- Raw material preparation (galvanized/stainless steel)
- Precision punching of sharp barbs
- Core wire and razor plate forming
- Secure clip installation (90-120psi pneumatic pressure)
- Optional PVC coating (RAL color system)
- Custom packaging solutions
Packaging Options
- Waterproof paper + woven bag (loose or compressed)
- Corrugated carton packaging (3-5 coils per box)
- Palletized shipment with plastic wrapping
- Retail-ready small box packaging
- Custom packaging solutions available
Quality Assurance
Our 5,000㎡ production facility features automated quality control at every stage, from raw material inspection to final packaging. All products meet ASTM F1910-98, F1379-95, and F1911-05 international standards for barbed tape obstacles.
Applications
Widely used for high-security installations including:

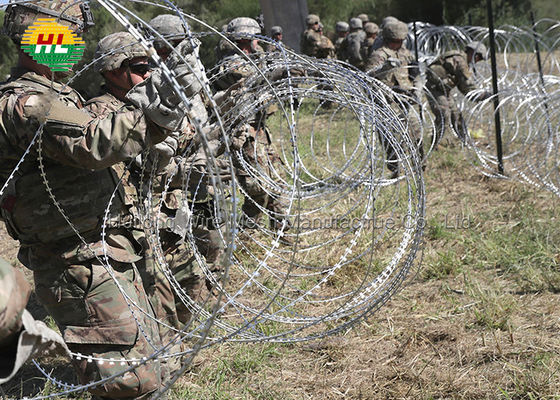

- Military and border security
- Correctional facilities
- Government buildings
- Industrial complexes
- Residential security
Frequently Asked Questions
Q: Are you a factory or trading company?
We operate both as a manufacturer with 18 years' experience and a trading company, ensuring quality control while offering comprehensive product sourcing.
Q: What's the minimum order quantity?
Standard products: 50 coils minimum. Custom products: negotiable. No MOQ for samples.
Q: How do you ensure product quality?
Our Quality Assurance Department implements strict inspections at all production stages, supported by international standard testing and 24/7 customer support.
