Hot Dipped Galvanized Diamond Razor Barbed Wire Mesh Fence AISI 430 Standard

Diamond razor barbed wire mesh fence is able to bounce back into its original coil shape even after being crushed. It is also able to withstand harsh weather conditions. Galvanised and stainless steel concertina wires can last for a long time. Customisable based on requirements. Concertina wires can be customised to fit your fencing needs; the size, thickness, length and materials can be tailored. 24-hour defense. Once the installation is complete, concertina wires typically do not require much maintenance and configuration. Hence, it provides 24-hour security for the premise.

MATERIAL SUPPLY SYSTEM

1) Blade

Material: Galvanized Steel or Stainless Steel

Thickness: 0.5mm

Barb Length: 12-65mm

Barb Spacing: 26-100mm

2) Core Wire

Material: Electro Galvanized Wire, Hot-dipped Galvanized Wire, Stainless Steel Wire

Wire Diameter: 2.5mm

3) PVC Coating

Razor Barbed Wire can also be coated by PVC, so that it has higher corrosion resistance and is more beautiful. Green color is commonly used, and other colors can be customized according to customers’ requirements.

COMMON BLADE TYPES

1) BTO (Barbed Tape Obstacle):

BTO-10, BTO-22, BTO-30;

2) CBT (Concertina Barbed Tape):

CBT-60, CBT-65.

Blade is manufactured with a high tensile reinforcing band providing maximum strength. This reinforcing band is substantially more difficult to cut or trample. In addition Cochrane incorporates a unique heavy duty steel clip designed to withstand a force of approx. 200lbs/100kgs, which cannot be parted by hand or with standard tools.

SPECIFICATIONS

MASS PRODUCTION PROCEDURE

1) Raw Material —— Galvanized Steel or Stainless Steel Plate + Galvanized Steel or Stainless Steel Wire.

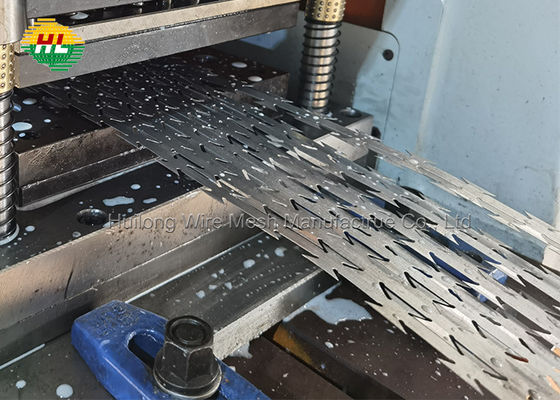

2) Machine Punching —— Steel sheet is punched into sharp barbs with punching machine.

3) Machine Forming —— Core wire and razor plate

4) Clip Installation—— We use clip gun to install C-ring clip, to make it firm

5) PVC Coating—— RAL 6005 Green color or any other colors in RAL Color System are all available.

6) Packaging —— Packaged with waterproof paper + woven bag, corrugated carton, or pallet. Special requirements can be customized.

PACKAGING SYSTEM

Because Concertina Barbed Wire has sharp blades, it is necessary to pay more attention to the way of packaging.

1) Generally, Razor Barbed Wire will be made into a coil, and then we use waterproof paper and woven bag for packaging. These coils can be directly loaded into container. Or, 10-20 coils will be compressed together with steel belts to make it stronger. In contrast, the loading quantity of compressed package is much more than what is in loose package.

2) Small Corrugated Box packaging, Razor Barbed Wire coils can be put into small pieces of paper boxes separately, this method is mainly used for supplying supermarkets or stores which directly facing the end users.

3) Corrugated Carton packaging, corrugated cartons can be customized according to customer requirements, and then 3-5 coils of razor wire are stacked into one carton, separated by cardboard in the middle.

4) Pallet packaging, compressed Razor Barbed Wire can also be packaged with plastic film, packing belt and pallet.

5) In addition, according to customer needs, we can also carry out exclusive customized services.

WAREHOUSE STORAGE SYSTEM

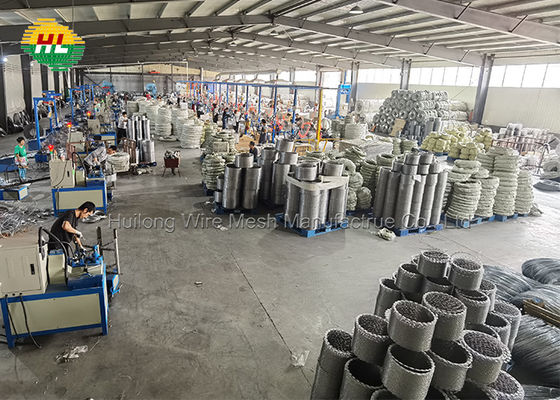

The production workshop of Concertina Barbed Wire occupies an area of 5,000 square meters, with 5 punching machines, 20 wire wrapping machines, 50 automatic pneumatic clip guns for clip installation, 6 workbenches for manual buckle. There are 68 workers in total, including 1 Warehouse Manager and 2 Quality Inspectors. In the process of production, quality inspectors will check on site to ensure the quality of products. At the same time, there is exclusive storage space for raw materials and finished products with special care.

We use pneumatic clip gun to install C-ring clips. Air press: 90-120psi (6-8bars, 60-80kg/cm). Faster and stronger.

QUALITY CONTROL SYSTEM

Quality management is a part we consider very important, because it directly determines whether the customer is satisfied or not. From raw material storage, machine maintenance, workers' qualifications, technical standards, production process, to product inspection, packaging and transportation, we ensure quality control to meet customers' requirements at the most economical level. At the same time, we have a perfect after-sales service system, efficient for you to solve any problems in the process of order.

International Standard for Razor Barbed Wire

ASTM F1910-98(2018)---Standard Specification for Long Barbed Tape Obstacles

ASTM F1379-95(2018)---Standard Terminology Relating to Barbed Tape

ASTM F1911-05(2019)---Standard Practice for Installation of Barbed Tape

PRODUCT APPLICATIONS

Concertina Barbed Wire has beautiful, economical, and practical, good anti-obstruction effect, convenient construction and other excellent characteristics. Currently, Razor Barbed Wire has been widely used in many countries, such as industrial and mining enterprises, garden apartments, border posts, military fields, prisons, detention houses, government buildings and other high security facilities.

DEEP PROCESSING OF CONCERTINA BARBED WIRE

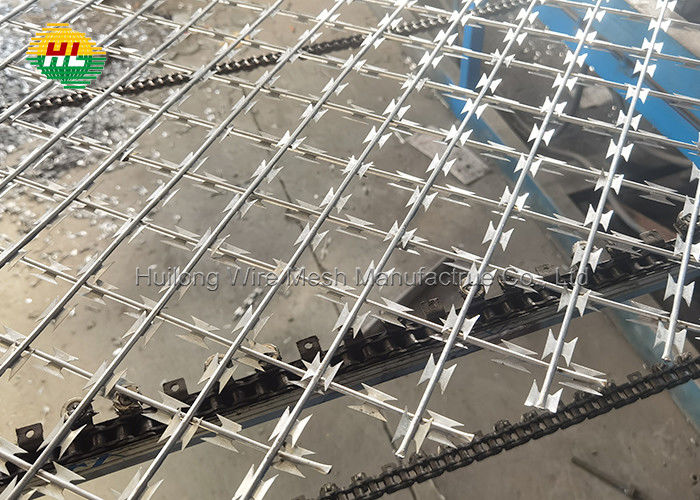

1) Welded razor wires

Welded razor wires into meshes with diamond or rectangular hole patterns.It has simple but high security structure for both private and commercial applications.Welded razor wire can be attached or welded onto the frame as security fence.It can also be used as additional security
measure for other security fences.

2) Double concertina razor wire

Double concertina razor wire is combined with two different coil diameter of razor wire with steel wires or steel ropes. It is the advancement of common concertina wires. It has the highest security grade among all types of razor wires.It is suitable for use where need highest grade of security purpose.

3) Mobile razor wire deployment system

Mobile razor wire deployment system is designed for rapid deployment of efectively layered concertina coils. This is serious obstacle for rebels or demonstrators and vehicles to gain entry.Razor wire trailer deployment trailers are available in 3 coil configuration (3 coil = gives 1.7m high protection for 100m distance).The operation of the razor wire deployment trailer is simple and convenient.Connected to the vehicle through axis of traction and can be hitched on any type of vehicle. The next step wil be to open the tall gate or release the barrier holder frame and drive forward automatically releasing and stretching the concertina coil barrier.

4) Flat loop concertina wire

Flat loop concertina wire consists of individual loops of barb tape.Press the single coil razor wire into flat or press the two loops into flat and then expand them across.Flat warp concertina wire can be attached directly onto the top of an existing fence or gate. Flat loop concertina wire is ideal for use where topping needs to be flat against the fence without any overhang either side of the fence or boundary.

QUALITY INSPECTION BEFORE LOADING

Perfect quality control system, can ensure the delivery of goods on time. After completing the mass production, quality inspectors of our factory and the inspectors designated by the customers will check and test the products to ensure that the quality and quantity meet customers’ requirements. Meanwhile, the inspection and loading process will be timely fed back to the customers in the form of documents.

AFTER-SALES SERVICE SYSTEM

1) After the order is confirmed, we will update the production schedule of the goods in time.

2) Any problems arising from our cooperation shall be answered within 24 hours and solved within 72 hours.

3) If any quality problem is found before delivery, we will deal with it in time.

4) When the goods arrive at the destination port, the customer finds the problem after unpacking the box. Please take photos and feedback to us. We will solve the problem within 24 hours.

FREQUENTLY ASKED QUESTIONS

Q1: Are you a factory or trading company?

We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.

Q2: What’s the MOQ?

MOQ is 50 coils for common standardized products and ready stock; For Customized Products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q3: How to guarantee the quality of products?

We have established the Department of Quality Assurance, every steps from raw material preparation to final product, we have strict quality inspection system to ensure the products meet international standards and satisfy customers. We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance. Any problems arising from the cooperation shall be answered within 24 hours and solved within 72 hours.

HUILONG HISTORY

• In 1989, HUILONG company was established, the original store was located in Anping Wire Mesh World Supermarket;

• In 1994, Anping HUILONG wire mesh factory was founded, located in Nanhuan East Road, mainly for the domestic market and produce Welded Wire Mesh Roll, Welded Wire Mesh Panel, and Wire Mesh Fence, etc.;

• In 1998, ethnic Chinese from Philippines visited us and confirmed the intention of cooperation;

• In 2004, Philippines invested 1 million funds, HUILONG Wire Mesh became a joint venture company named as "ANPING HUILONG WIRE MESH MANUFACTURE CO., LTD.";

• In 2008, HUILONG wire mesh international sales department successfully obtained European market, establishing a European trading circle based on France, Belgium and Italy;

• In 2009, we obtained 50 acres land in Taicheng industry park, and built up a brandnew factory. The workshop occupies 25,000㎡, warehouse 10000㎡, with total 300 sales representatives and workers；

• In 2011, our company exported to more than one hundred countries, cooperated with more than 200 customers;

• In May 2012, Shijiazhuang international trade branch office was set up;

• In 2013, we purchased 300㎡ of office building in Shijiazhuang;

• In 2015, Anping HUILONG Wire Mesh Manufacture Co., Ltd joined the Anping Wire Mesh Chamber of Commerce, becoming an important part of it;

• In 2016, we set up a new foreign trade team of 35 people, with an office area of 300 square meters;

• In 2017-2018, our wire mesh products were well sold and well recognized in the markets of America, Africa and Southeast Asia;

• In 2019, we registered AIBUER TRADING CO., LTD. and integrated more factory resources, enriched product categories, to provide customers with more valuable services;

• In 2020, HUILONG invested and established Concertina Razor Wire Factory, which covers an area of 7,000 square meters;

• In 2021, the factory department has established a domestic trade team of 30 people, with a new office area of 600 square meters.
