Product Details:
Payment & Shipping Terms:
|
Product Name: | High-Tensile Field Fence Cattle Fence Heavy Galvanized Farm Fence With 2.0-3.0mm Steel Wire | Material: | Galvanized Steel Wire |
---|---|---|---|
Fence Style: | Woven Wire | Tensile Level: | High Tensile |
Roll Length: | 50m, 100m, Etc. | Roll Height: | 4ft, 5ft, 6ft, Etc. |
Edge Wire Diameter: | 2.5mm-4mm | Inner Wire Diameter: | 2mm-3mm |
Color: | Silver, Galvanized | Application: | For Field Fence, Cattle Fence, Farm Fence, Etc. |
Anping HUILONG began to engage in the wire mesh production industry from 1986, so far it has been 35 years. Making wire mesh fence products widely used in all walks of life has always been the power and direction of our development and research. In order to help customers to find products that can meet their needs conveniently, we hereby make the following chart of Hinge Joint Wire Mesh, hoping to be of great help for customers in choosing the right products.
Carbon Steel | Material | Level | Feature | Application |
Q195 |
Hot-dipped galvanized before welded 240-270G | I | Strong |
deep-sea agriculture use as fish cages; Garden fencing, animal cages animal raising, construction, floor mesh, road mesh. |
Hot-dipped galvanized before welded 100-120G | II | Medium | Garden fencing, animal cages animal raising, construction, floor mesh, road mesh. | |
Hot-dipped galvanized before welded 40-60G | III | Economic | Garden fencing, animal cages animal raising, construction, floor mesh, road mesh. |
High Tensile Field Fence Cattle Fence, also known as Livestock Fencing, is a widely used animal husbandry fence in America, Europe and Australia.
COMMON SPECIFICATIONS
Height (mm) |
Length (m) |
Qty of Horizontal Wire |
Spacing of Vertical Wire (mm) |
Spacing of Horizontal Wire (mm) |
Edge Wire Diameter (mm) |
Inner Wire Diameter (mm) |
Roll Diameter (mm) |
813 |
50 |
7 |
150 |
102+114+127+140+152+178 |
2.5 |
2 |
280 |
813 |
50 |
8 |
150 |
89+89+102+114+127+140+152 |
2.5 |
2 |
280 |
902 |
50 |
8 |
150 |
89+102+114+127+140+152+178 |
2.5 |
2 |
280 |
1016 |
50 |
8 |
150 |
102+114+127+140+152+178+203 |
2.5 |
2 |
280 |
1143 |
50 |
8 |
150 |
114+127+140+152+178+203+229 |
2.5 |
2 |
280 |
991 |
50 |
9 |
150 |
89+89+102+114+127+140+152+178 |
2.5 |
2 |
280 |
1245 |
50 |
9 |
150 |
102+114+127+140+152+178+203+229 |
2.5 |
2 |
280 |
1194 |
50 |
10 |
150 |
89+89+102+114+127+140+152+178+203 |
2.5 |
2 |
280 |
1334 |
50 |
10 |
150 |
89+102+114+127+140+152+178+203+229 |
2.5 |
2 |
280 |
1422 |
50 |
11 |
150 |
89+89+102+114+127+140+152+178+203+229 |
2.5 |
2 |
280 |
PRODUCT FEATURES
1. Graduated spacing starts with small openings at the bottom of the wire fence to prevent entry of small animals.
2. Hinge-joint knot allows the fencing to give under pressure and spring back into shape.
3. Woven wire fence expands or contracts under changing weather.
4. Produced with Class I zinc coating 275g/㎡ (40μm thickness).
5. The structure of High Tensile Field Fence Cattle Fence Farm Fence, the maintenance is convenient, the construction cycle is short, the volume is small and the weight is light.

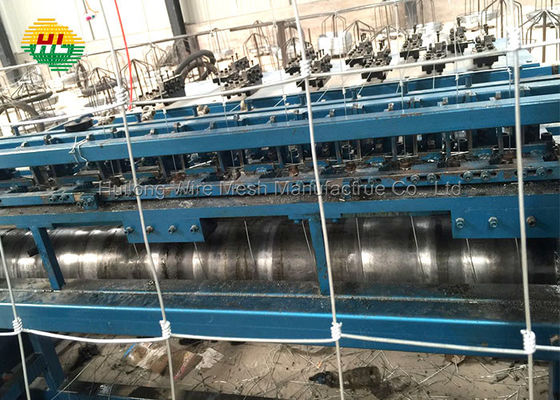

MASS PRODUCTION PROCEDURE

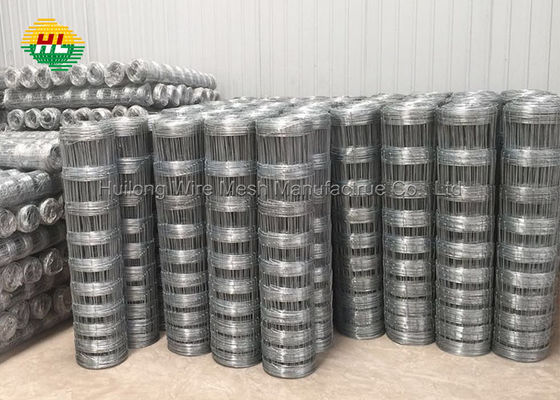

PACKAGING DETAILS
1) Nuded Packing, with label inside.
2) Plastic film only, with label inside.
3) Plastic Shrink only, with label inside.
4) Plastic woven bag, with label inside.
5) Wooden Pallet or Iron Pallet: special design to ensure the belts stable.
APPLICATIONS
※ Livestock fencing and confinement.
※ Erosion control silt fence backing.
※ Perimeter and boundary fence.
※ Deer Fencing
※ Horse Fencing
※ Cattle fence
※ Sheep / Goat fence
※ Otter Fencing
※ Poultry Fencing
※ Badger Fencing
※ Grasslands fence
※ Animal husbandry fence
※ Forest areas fence
※ Breeding fence
※ Green belts’fence
※ River embankments fence
※ Road bridges’ fence
RELATED PRODUCTS
1) T Post
T Post is matched and used with Hinge Joint Wire Mesh Fence, which has a steel plate on the top of the post for easier installation.
2) T Post Clip
T Post Clips allow you to easily secure the rolled Hinge Joint Wire Mesh Fence to the T-post tightly.
3) Y Post
Y Post is widely used as post for Farm Fences.
4) Post Driver
Post Driver can be used to help drill the post into ground more easily.
FREQUENTLY ASKED QUESTIONS
Q1: Is High Tensile Hinged Joint Farm Fencing Different to erect?
While High Tensile Hinged joint knot fencing certainly requires different techniques to erect than mild steel, it is no more difficult. Most farms have access to a post driver that can easily drive in strainers to the required depth. Bending and tying off is simple when using the correct technique.
Q2: Isn’t High Tensile Hinged Joint Farm Fencing Expensive?
It is a common misconception that a mild steel hinged joint knot fence will cost less than High Tensile. High Tensile mesh rolls may be more expensive to buy, but this is more than compensated for by the reduced numbers of posts and labour required.
Although HT8/80/15 is the most common spec used for livestock, we also offer a wide variety of specifications to suit different animals and applications. Please contact one of our fencing experts who are on hand to provide you with professional support and advice.
Q3: Are you a factory or trading company?
We are a 18-year factory and we have registered trading company for sourcing more valuable products for the customers. Therefore, we have both the advantages of factory and trading company. We have our own factory, so we can control the product quality timely and efficiently. At the same time, we also have a professional international trade team, providing good and professional services for customers.
Q4: Can you offer samples?
Yes, free sample is available according to your request. And we can also ensure that the quality of the sample is the same as that of the mass products.
Q5: How about the payment terms?
T/T (30% deposit in advance) , L/C at sight.
Q6: How about the delivery time?
Within 7-15 days after receiving customer’s deposit or L/C.
